点击放大查看

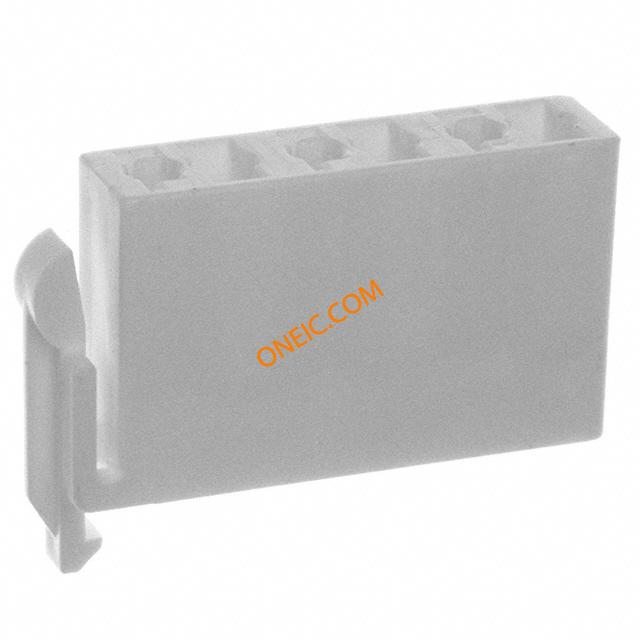

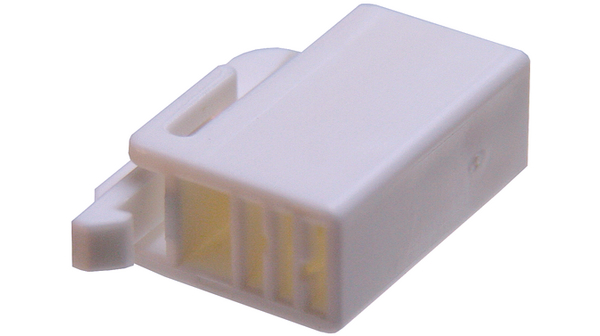

2058299-3
| 制造商 | |
| 描述 | Conn Housing RCP 6 POS 4mm Crimp ST Lighting Connectors 6 POS PLUG NAT CONN HSNG RCPT&BLADE 6POS NATRL Connector,housing,plug,6 Way,22-18awg,Wh HOUSING, BLADE & RECEPTACLE, 6WAY CON,HSG,PLUG,6W,22-18,WHT Housing 6P, 2058299-3, TE Connectivity TE Connectivity Hermaphroditic 系列 1 行 4mm 节距 6 路 直 母 压接连接器外壳 WTB HOUSING, 6 POS, NATURAL |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Lighting Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :- | 额定电压 | 90 V |
| 工作电压 | :125V | 击穿电压 | :1500V |
| 最大额定电流 | 6 A | 最小供电电压 | 125VDC/125VAC |

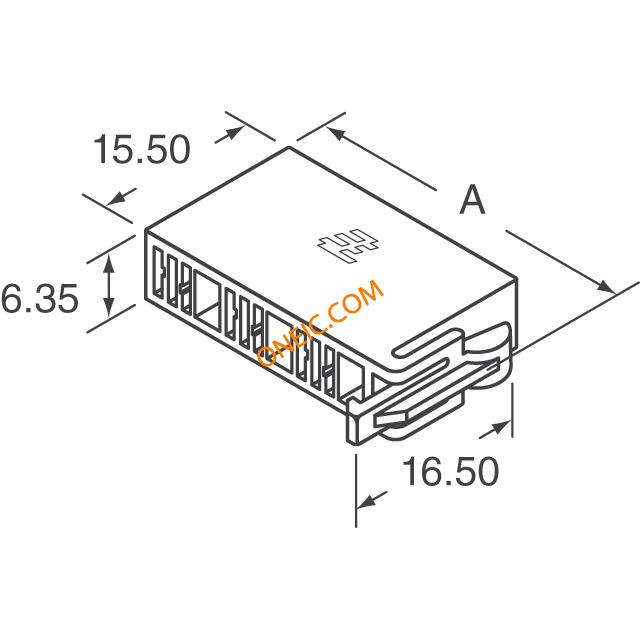

机械参数
| 颜色 | Natural | 深度 | 19.35mm |
| 间距 | 4 mm | 宽度 | 6.35mm |
| 高度 | 6.35 mm | 长度 | 28.4mm |
| 重量 | 0.01 | 材料（通用） | :PBT |
| 包装方式 | Bulk | 导线线规 | 22-18 |
| 端接方式 | :Solder | 触头类型 | Blade and Receptacle |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Self Mating | 接触镀层 | :- |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | PBT |
| 总长度 | 28.4 mm | 连接器颜色 | :Natural |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 2058299 |
| 应用细节 | Wire to Board | 适用产品/相关产品 | Wire-to-Board Hermaphroditic Blade & Receptacle |
环境参数
| 插拔次数 | :10 | 工作温度 | -40C to 105C |
