点击放大查看

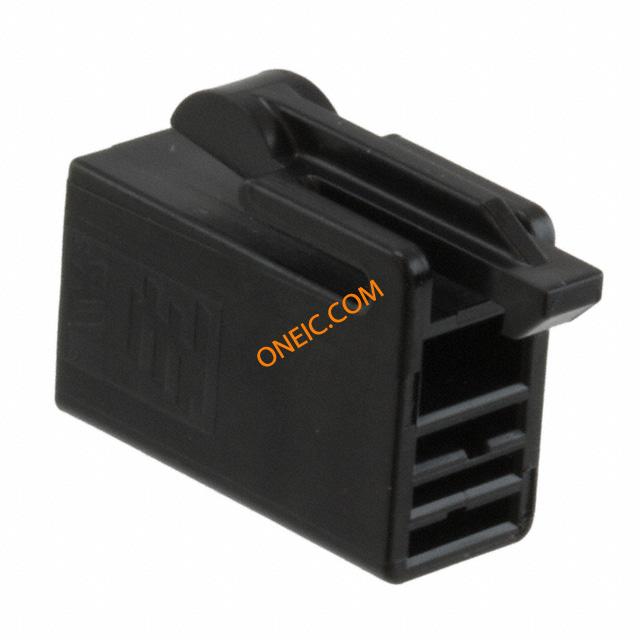

1-2058299-1
| 制造商 | |
| 描述 | Conn Housing RCP 2 POS 4mm Crimp ST Lighting Connectors 2 POS PLUG BLK CONN HSNG RCPT&BLADE 2POS BLACK HOUSING, BLADE & RECEPTACLE, 2WAY WTB HOUSING, 2 POS, BLACK |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Lighting Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 量程（°/s） | :- | 额定电压 | 90 V |
| 工作电压 | :125V | 击穿电压 | :1500V |
| 最大额定电流 | 6 A | ||
机械参数
| 颜色 | Black | 间距 | 4 mm |
| 重量 | 0.01 | 材料（通用） | :PBT |
| 包装方式 | Bulk | 导线线规 | 22-18 |
| 端接方式 | :Solder | 触头类型 | Blade and Receptacle |
| 安装类型 | Straight | 连接器类型 | Self Mating |
| 接触镀层 | Tin | 紧固类型 | Latch Lock |
| 安装样式 | SMD/SMT | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 端接样式 | Solder | 连接器颜色 | :Black |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 应用细节 | Wire to Board |
环境参数
| 插拔次数 | :10 | 工作温度 | :105°C |
文档与媒体
相关型号
1-2058299-3
te connectivity / amp
Conn Housing RCP 6 POS 4mm Crimp ST Lighting Connectors 6 POS PLUG BLK CONN HSNG RCPT&BLADE 6POS BLACK Connector,housing,plug,6 Way,22-18awg,Bl HOUSING, BLADE & RECEPTACLE, 6WAY Connector,housing,plug,6Way,22-18awg,Bl WTB HOUSING, 6 POS, BLACK
2058302-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Lighting Connectors Socket Contact 20000 LED Interconnects CONN SOCKET CONTACT 18-22AWG TIN Contact Rec 22-18AWG Hermaphroditic Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire-to-BoardApplies To WireContact Current Rating, Max = 5 ALength (X-Axis) = 11.90 mm TERMINAL, HERMAPHRODITIC ContactRec22-18AWGHermaphroditic Contact; female; 18÷22AWG; tinned; crimped, on cable; 5A TE Connectivity Hermaphroditic 系列 母 压接接线端子, 压接, 镀锡触点 Socket Contact
2058301-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Lighting Connectors Blade Contact 20000 LED Interconnects CONN BLADE CONTACT 18-22AWG TIN Contact Blade 22-18AWG Hermaphroditic ContactBlade22-18AWGHermaphroditic Contact; male; 18÷22AWG; tinned; crimped, on cable; 5A TE Connectivity Hermaphroditic 系列 公 压接接线端子, 压接, 镀锡触点 Blade Contact
2058299-1
te connectivity / amp
Conn Housing RCP 2 POS 4mm Crimp ST Lighting Connectors 2 POS PLUG NAT CONN HSNG RCPT&BLADE 2POS NATRL Connector,housing,plug,2 Way,22-18awg,Wh HOUSING, BLADE & RECEPTACLE, 2WAY CON,HSG,PLUG,2W,22-18,WHT Connector: PCB-cable/PCB; plug; hermaphrodite; w/o terminals Housing 2P, 2058299-1, TE Connectivity TE Connectivity Hermaphroditic 系列 1 行 4mm 节距 2 路 直 母 压接连接器外壳 WTB HOUSING, 2 POS, NATURAL
2058128-1
te connectivity / amp
Connector Accessories 2 POS Receptacle Dust Cover Polybutylene Terephthalate Natural Loose Piece Lighting Connectors 2 POS DUST COVER CONN DUST COVER RCPT&BLADE 2POS HOUSING, HERMAPHRODITIC, 2WAY Dust Cap, 2 Posn, Natural
2058703-1
te connectivity / amp
Conn Board to Board M 2 POS 4mm Solder RA SMD T/R Lighting Connectors BLADE AND RCPT 2 POS SMT WHT CONN RCPT&BLADE 2POS W/LATCH SMD TE Connectivity 2058703 Series 4mm Pitch 2 Way 1 Row Right Angle Lighting Connectors, Solder Termination, 6A Conn Board to Board M 2 POS 4mm Solder RA SMD T/R Product Highlights:ConnectorYes PreloadedHousing Gender = HermaphroditicProduct Classification = Board-to-Board2 Positions CONNECTOR, BLADE & RECEPTACLE, 2WAY CON,BLADE+RECP,SMT,2W,WHT Connector: PCB to PCB; hermaphrodite; PIN:2; Locking: with lock sale 2 Position 1 Row 4 mm Hermaphroditic Blade And Receptacle Housing Connector TE Connectivity Hermaphroditic 系列 2路 4mm节距 (1排) 直角 照明连接器 , 焊接端接, 6A, 表面安装 Herm Blade& Recp Assy, 2 Pos,Latch

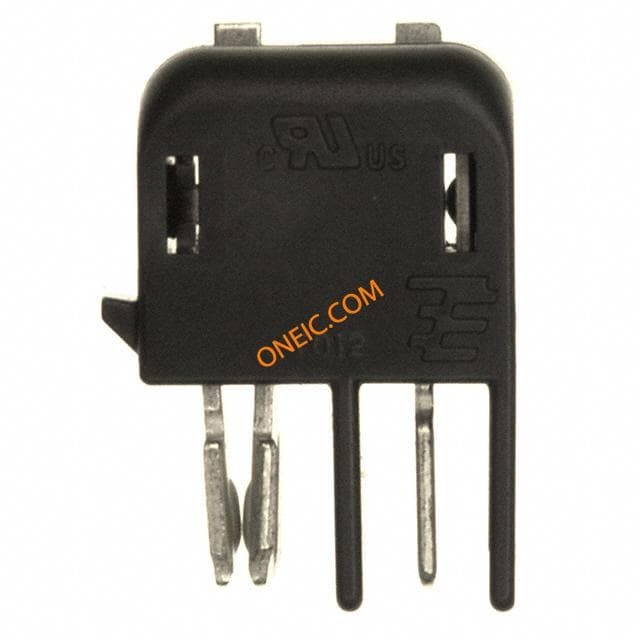

1-2058703-1
