点击放大查看

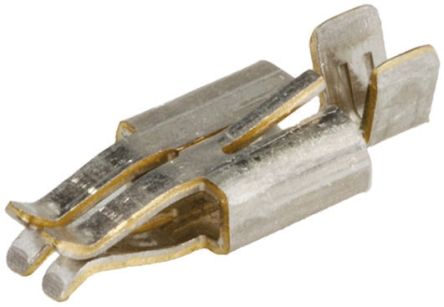

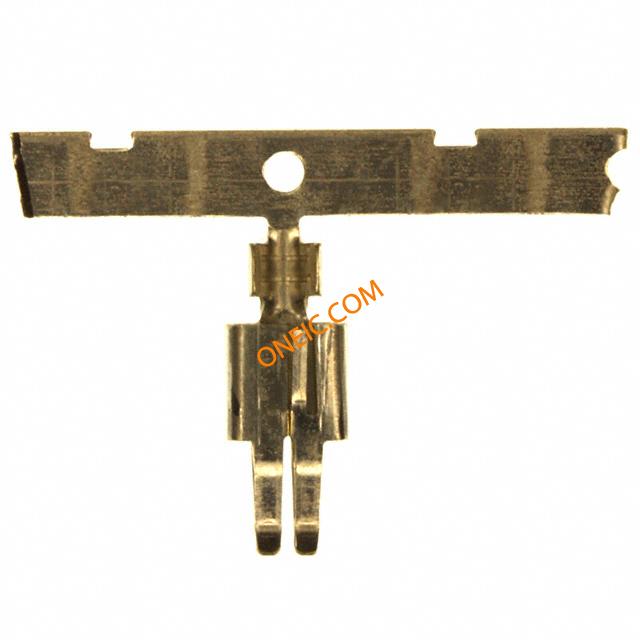

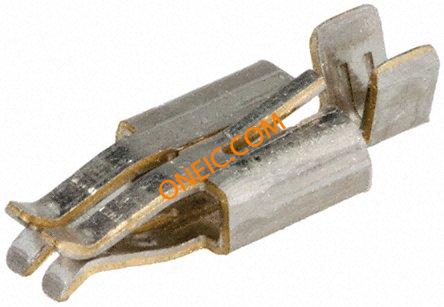

2058302-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Lighting Connectors Socket Contact 20000 LED Interconnects CONN SOCKET CONTACT 18-22AWG TIN Contact Rec 22-18AWG Hermaphroditic Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactWire-to-BoardApplies To WireContact Current Rating, Max = 5 ALength (X-Axis) = 11.90 mm TERMINAL, HERMAPHRODITIC ContactRec22-18AWGHermaphroditic Contact; female; 18÷22AWG; tinned; crimped, on cable; 5A TE Connectivity Hermaphroditic 系列 母 压接接线端子, 压接, 镀锡触点 Socket Contact |
| 分类 |
商业参数
| 产品 | Blade Terminals | 其他名称 | A99897CT |
| 产品类别 | Lighting Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
电气参数
| 电路 | Without | 额定电压 | 125 V |
| 最大额定电流 | 5 A | 可用总延迟 | Yes |
机械参数
| 宽度 | 4.7 mm | 长度 | 11.9 mm |
| 重量 | 0.01 | 包装方式 | Reel |
| 电缆类型 | Discrete Wire | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 触点尺寸 | :18 |
| 触头类型 | Socket | 安装类型 | crimped, on cable |
| 插针或插孔 | Socket | 电缆直径 | 18.0 - 22.0 |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Tin |
| 高度（英寸） | 3.0 | 触头材料 | Copper Alloy |
| 包装数量 | Strip | 连接器 - 电缆 | contact |
| 先合后断 | No | 端接样式 | Crimp |
| 第一触头极性 | :Pin | 接触件端接 | Crimp |
| 触点材料 - 配合 | Matte Tin | 触点材料 - 镀层 | tinned |
产品信息
| 外形 | Yes | 类型 | Wire to Board |
| 连接器性别 | SKT | 系列 | :- |
| 应用 | Wire-to-Board | 编码、键控 | No |
| 制造商全称 | Tyco Electronics | 产品子类型 | Contact |
| 单元数量 | 5000 | 其他规格 | Wire/Cable |
| 适用产品/相关产品 | :Hermaphroditic Wire-to-Board | ||
环境参数
| 额定寿命 | No | 密封等级 | Not Approved |
| 工作温度 | +105°C | 可用温度范围 | -40to+105°C |
| 结工作温度 | 105°C | ||
