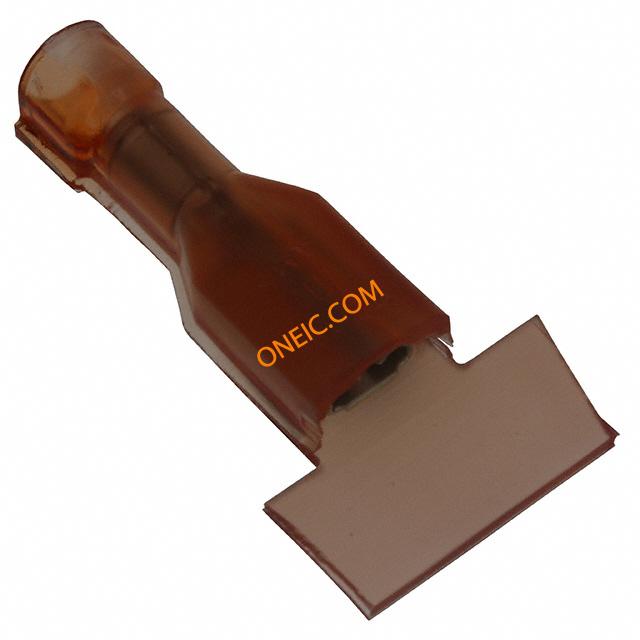

2-520932-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 18.66mm 6.98mm Tin Strip Terminals 110 ULTRA-FAST PLUS Ultra-Fast Receptacles & Tabs CONN RECEPT FAST 18-22 AWG .110 Receptacle terminal, Ultra-Fast Plus 110 Quick Disconnect Terminal 18-22AWG RCP 18.66mm 6.98mm Tin Strip Product Highlights:ReceptacleProprietary Name = Ultra-Fast PlusReceptacle Style = StraightTab Fit = 2.79 x 0.51 mm, 3.18 x 0.51 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL, FEMALE DISCONNECT, 3.18MM, RED CONNECTOR,RECEPTACLE,FASTON,ULTRA-FASTPLUS110,22-18AWG Ultra Fast 22-18 AWG Straight Fully Insulated Receptacle Assembly TE Connectivity Ultra-Fast Plus .110 系列 红色 绝缘 压接插座 , 2.79 x 0.51mm, 镀锡触芯 ULTRA-FAST .110/.125 ASY REC 22-18 TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27844CT |
| 产品类别 | Terminals | 标准包装数量 | 3,000 |
| 工厂包装数量 | 3000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Red | 深度 | 6.98 mm |
| 表面处理 | Tin | 长度 | 0.735in |
| 重量 | 0.002 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 2.79 x 0.51 [.110 x .020], 3.18 x 0.51 [.125 x .020] |
| 绝缘类型 | Insulated | 导线线规 | 22-18 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Wire | 螺柱/焊片尺寸 | :3.18 x 0.51mm |
| 插片厚度 | 0.020" (0.51mm) | 端子类型 | Standard |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Brass | 绝缘颜色 | :Red |
| 总长度 | 0.735" (18.67mm) | 包装数量 | Strip |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 1.52-3.05 [.060-.120] | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :22AWG |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | ||
产品信息
| 类型 | Receptacle | 连接器性别 | Female |
| 系列 | 110 | 应用 | Networking (Communications), Power (Multi-User) |
| 产品子类型 | Receptacle | 专有名称 | Ultra-Fast Plus |
