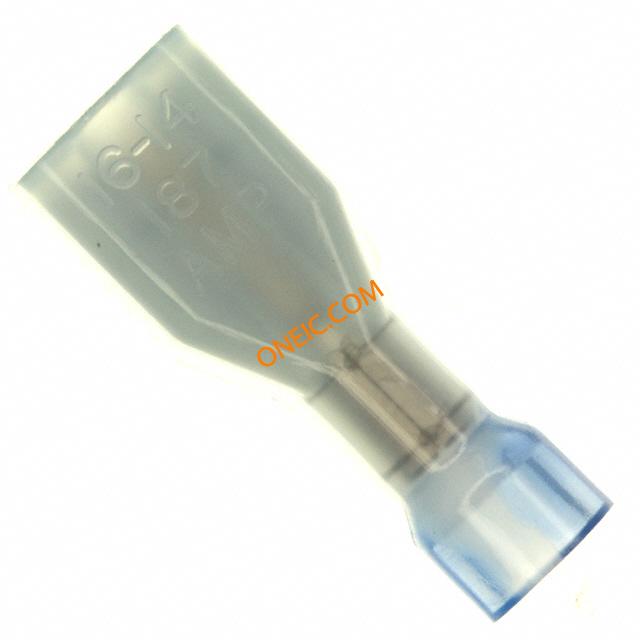

3-520412-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-16AWG RCP 21.72mm 8.53mm Tin Loose Piece Terminals NYL-REC 16-14 BLU .032 X .187 Ultra-Fast Receptacles & Tabs CONN FAST RECEPT 14-16 AWG .187 Receptacle terminal, Ultra-Fast Plus 187 Quick Disconnect Terminal 14-16AWG RCP 21.72mm 8.53mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-Fast PlusReceptacle Style = StraightTab Fit = 4.75 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG CRIMP TERMINAL, FEMALE, 4.8X0.8MM AMP;RECEPTACLE;FULLYINSULATED;16-14AWG TE Connectivity Ultra-Fast Plus .187 系列 蓝色 绝缘 压接插座 , 4.75 x 0.81mm, 镀锡触芯 ULTRA-FAST 187 ASY REC 16-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL, VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Blue | 表面处理 | Tin |
| 重量 | 0.075 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 4.75 x 0.81 [.187 x .032] |
| 绝缘类型 | Insulated | 导线线规 | 16-14 |
| 端接方式 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.187 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 行程角度 | Straight |
| 连接器类型 | :Crimp Terminal | 接触镀层 | Tin |
| 连接器样式 | Straight | 总宽度 | 0.336" |
| 触头材料 | Brass | 绝缘颜色 | :Blue |
| 总长度 | 0.855" (21.72mm) | 包装数量 | Loose Piece |
| 主要材料 | QuickDisconnect | 绝缘高度 | Insulation Support |
| 连接器颜色 | :Blue | 绝缘直径 | 2.29-4.06 [.090-.160] |
| 绝缘材料 - 类型 | Nylon | 绝缘材料 - 材质 | Yes |
| 线规或范围 - AWG | :16AWG | 线规或范围 - mm² | 1.25-2.00² [16-14] |
| 外径-未扩张 | :4.06mm | ||
产品信息
| 连接器性别 | Female | 系列 | 187 |
| CAD图纸 | 3D CAD Model | 应用 | Networking (Communications), Power (Multi-User) |
| 制造商全称 | ULTRA-FASTPLUS | 产品子类型 | Receptacle |
| 专有名称 | Ultra-Fast Plus | ||
环境参数
| 工作温度 | :105°C | ||
文档与媒体
