点击放大查看

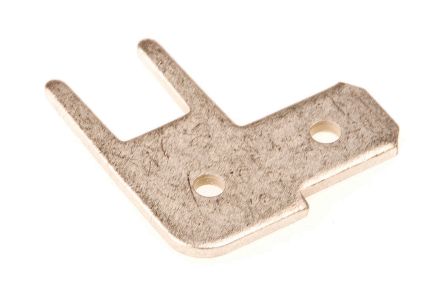

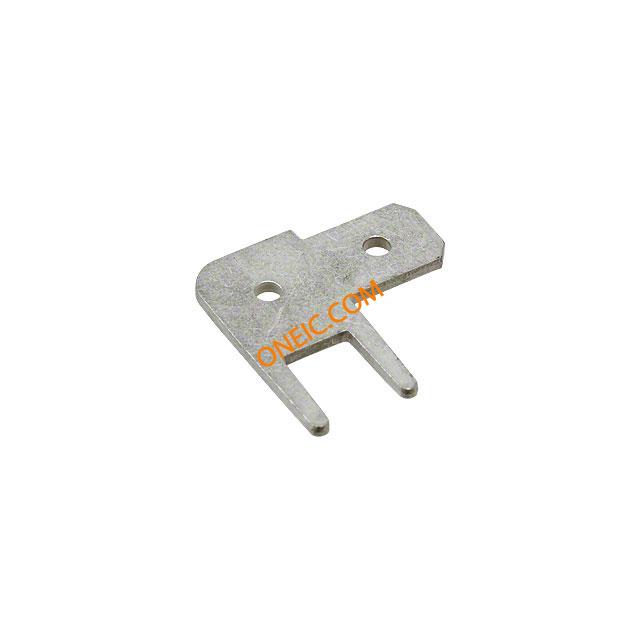

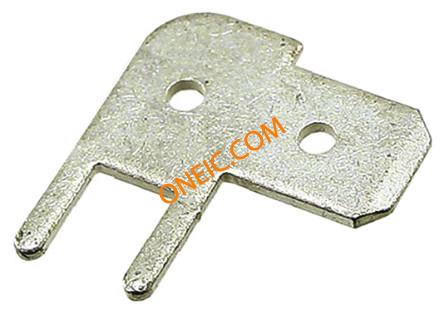

1-726389-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Tab Terminal M 13mm Tin Over Copper Loose Piece Automotive Connectors TAB 4.8 TIN PCB Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FASTON 4.8 TIN PCB Tab terminal,PCB, FASTON 187,right angle Tab Terminal M 13mm Tin Over Copper Loose Piece Product Highlights:TabTab Type = Printed Circuit BoardTab Fit = 4.75 x 0.81 mmBrass MaterialTin FinishSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TAP, R/A, 4.8X0.8MM Tabterminal,PCB,FASTON187,rightangle CONN TAB FASTON 4.8 x 0.8mm 非绝缘 直角 压接接头端子, 镀锡镀铜触点 FASTON 187 TAB FLAG .032 TPBR LP |
| 分类 |
商业参数
| 产品 | Tab Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | 10,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数
| 颜色 | Not Required | 深度 | 13 mm |
| 宽度 | :4.8mm | 表面处理 | Tin |
| 长度 | :12.8mm | 重量 | 0.057 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 4.75 x 0.81 [.187 x .032] | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.252" (6.40mm) | 端接方式 | Solder |
| 基体材料 | Brass | 安装类型 | 90° |
| 螺柱/焊片尺寸 | :4.75mm x 0.81mm | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Terminal |
| 接触镀层 | Tin | 壳体镀层 | Tin Over Copper |
| 电路板厚度 | 1.57 [0.062] | 触头材料 | Brass |
| 绝缘颜色 | :- | 总长度 | 13mm |
| 刀片材料 | :Brass | 包装数量 | Loose Piece |
| 绝缘高度 | Without | 插针孔直径 | 1.40 [0.055] |
| 接触件端接 | Without | 绝缘材料 - 材质 | :- |
| 安装孔直径 | Without | ||
产品信息
| 类型 | Tab Terminal | 连接器性别 | Male |
| 系列 | :FastOn | 产品子类型 | Tab |
| 其他规格 | Printed Circuit Board | ||
