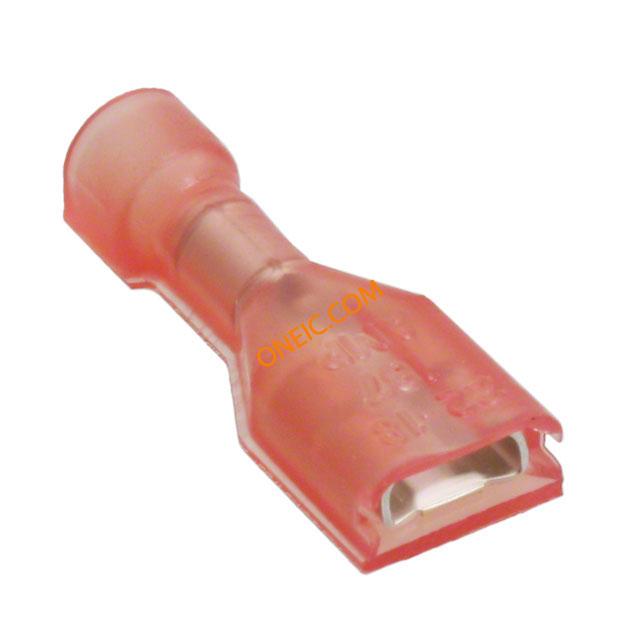

2-520194-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 21.71mm 8.53mm Tin Loose Piece Terminals ULTRA-FAST RECPT 22-18 AWG Ultra-Fast Receptacles & Tabs CONN FAST RECEPT 18-22 AWG .187 Receptacle terminal, Ultra-Fast 187, red Quick Disconnect Terminal 18-22AWG RCP 21.71mm 8.53mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 4.75 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG CRIMP TERMINAL, FEMALE, 4.8X0.8MM AMP;RECEPTACLE;FULLYINSULATED;22-18AWG Terminal: flat; 4.8mm; 0.8mm; female; 0.3÷0.9mm2; crimped; tinned Ultra Fast 22-18 AWG Straight Fully Insulated Receptacle Assembly TE Connectivity Ultra-Fast .187 系列 红色 绝缘 压接插座 , 4.75 x 0.81mm, 镀锡触芯 ULTRAFAST 187 ASSY REC 22-18 TPBR LP |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL, VDE | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
机械参数
| 颜色 | Red | 深度 | 8.53 mm |
| 宽度 | 4.8mm | 表面处理 | Tin |
| 重量 | 0.067 | 材料（通用） | Brass |
| 包装方式 | Bulk | 插片宽度 | 4.75 x 0.81 [.187 x .032] |
| 厚度 | 0.8mm | 绝缘类型 | Insulated |
| 导线线规 | 22-18 | 方向 | straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 0.187 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 行程角度 | Straight | 连接器类型 | :Crimp Terminal |
| 接触镀层 | Tin | 安装样式 | for cable |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 总宽度 | 0.336" | 触头材料 | Brass |
| 套圈材料 | insulated | 绝缘颜色 | :Red |
| 总长度 | 0.855" (21.72mm) | 包装数量 | Loose Piece |
| 主要材料 | QuickDisconnect | 绝缘高度 | Non-Insulation Support |
| 端接样式 | Crimp | 连接器颜色 | :Red |
| 绝缘直径 | 3.43 [.135] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :22AWG |
| 线规或范围 - mm² | 0.30-0.90² [22-18] | 触点材料 - 镀层 | tinned |
| 外径-未扩张 | :3.43mm | ||
产品信息
| SPG | 1 | 类型 | Receptacle |
| 连接器性别 | Female | 系列 | 187 |
| CAD图纸 | 3D CAD Model | 应用 | Standard |
| 制造商全称 | ULTRA-FAST | 产品子类型 | Receptacle |
| 单元数量 | 1 | 专有名称 | Ultra-Fast |
环境参数
| 工作温度 | :105°C | ||
