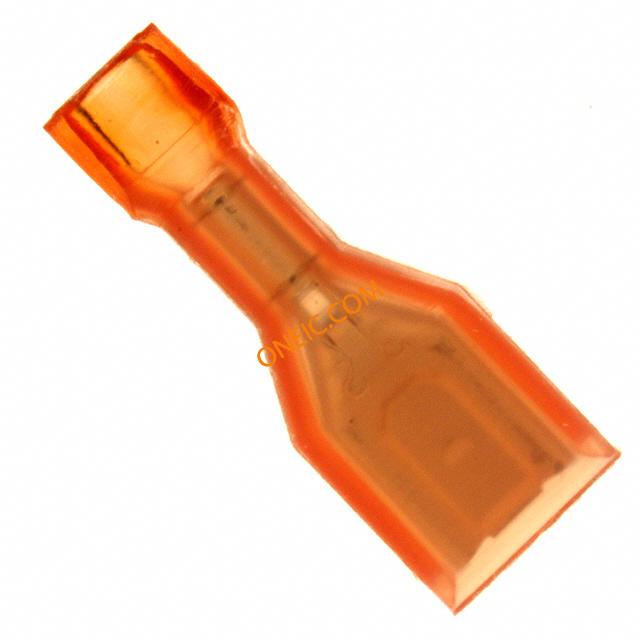

2-520411-2

点击放大查看

2-520411-2

制造商
TE Connectivity Ltd.
描述Quick Disconnect Terminal 18-22AWG F 21.97mm 8.53mm Tin Loose Piece Terminals .187 FASTON RECPT 22-18 AWG Ultra-Fast Receptacles & Tabs CONN FAST RECEPT 18-22 AWG .187 Receptacle terminal, Ultra-Fast Plus 187 Quick Disconnect Terminal 18-22AWG F 21.97mm 8.53mm Tin Loose Piece Product Highlights:ReceptacleProprietary Name = Ultra-Fast PlusReceptacle Style = StraightTab Fit = 4.75 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG CRIMP TERMINAL, FEMALE, 4.8X0.8MM AMP;RECEPTACLE;FULLYINSULATED;22-18AWG Terminal: flat; 4.8mm; 0.8mm; female; 0.3÷0.9mm2; crimped; tinned Ultra Fast 22-18 AWG Straight Fully Insulated Receptacle Assembly TE Connectivity Ultra-Fast Plus .187 系列 红色 绝缘 压接插座 , 4.75 x 0.81mm, 镀锡触芯 ULTRA-FAST 187 ASY REC 22-18 TPBR
分类
连接器解决方案压接与焊接端子/接头压接插座
对参数有疑问？问 AI 助手

商业参数

产品Faston Terminals产品类别Terminals
标准包装数量1,000工厂包装数量1000

合规参数

RoHSRoHS Compliant海关税号85369010
抗辐射加固No无铅定义Not relevant for lead free process
认证机构:CSA, UL, VDERoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

机械参数

颜色Red深度8.53 mm
宽度4.8mm表面处理Tin
重量0.067材料（通用）Brass
包装方式Bulk插片宽度4.75 x 0.81 [.187 x .032]
厚度0.8mm绝缘类型Insulated
导线线规22-18方向straight
端接方式Crimp基体材料Brass
安装类型Wire螺柱/焊片尺寸0.187 in x 0.032 in
插片厚度0.032" (0.81mm)端子类型Standard
行程角度Straight连接器类型:Crimp Terminal
接触镀层Tin安装样式for cable
壳体镀层Tin连接器样式Straight
总宽度0.336"触头材料Brass
套圈材料insulated绝缘颜色:Red
总长度0.855" (21.72mm)包装数量Loose Piece
主要材料QuickDisconnect绝缘高度Insulation Support
端接样式Crimp连接器颜色:Red
绝缘直径1.52-3.42 [.060-.135]绝缘材料 - 类型Nylon
绝缘材料 - 材质Yes线规或范围 - AWG:22AWG
线规或范围 - mm²0.30-0.90² [22-18]触点材料 - 镀层tinned
外径-未扩张:3.42mm

产品信息

SPG1类型Receptacle
连接器性别Female系列187
CAD图纸3D CAD Model应用Networking (Communications)
制造商全称ULTRA-FASTPLUS产品子类型Receptacle
单元数量1专有名称Ultra-Fast Plus
