点击放大查看

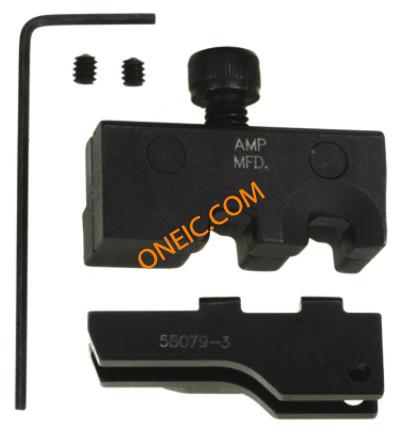

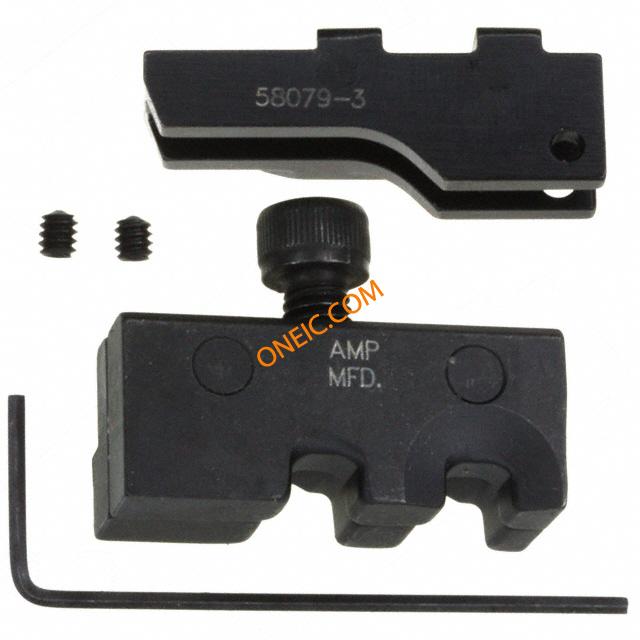

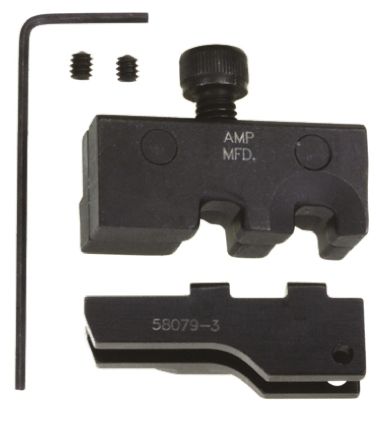

58079-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Hand Tool Used In The Aircraft And Military Industries Punches & Dies DIE SET 22-18 AWG ULTRAFAST PLUS ULTRAFAST PLUS DIE SET 22-18 AWG Crimping die, Ultra-Fast Plus AWG 22-18 Die-Set For Ultra Fast Plus AMP;RATCHETDCRIMPTOOL;DIESONLY;22-18AWG TE Connectivity Tetra-Crimp 系列 压接模具 , 22 → 18 AWG 线规格, Ultra-Fast 接线端子 ULTRAFAST + DIE 22-18U/58078-3 |
| 分类 |
商业参数
| 产品 | Dies | 交货时间 | 49 Days |
| 子类别 | Assembly Tools | 产品类别 | Punches & Dies |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 零件状态 | TE Product Specification (108-), UL/CSA |
电气参数
| 输入功率 | 手动, 气动 | ||
机械参数
| 深度 | 15.82 mm | 高度 | 57.86 mm |
| 包装方式 | Bulk | 接触镀层 | Ultra-Fast 接线端子 |
| 总长度 | 27.5 mm | 连接器 - 电缆 | 闭式压线筒 - 其他 |
| 线规或范围 - mm² | 22 → 18 AWG | ||
产品信息
| 类型 | Hand Tool | 系列 | Tetra-Crimp |
| 工具类型 | Die Set | 适配器系列 | 可拆卸/可互换 |
| 兼容工具 | 58078-3 | 工具类型/特性 | Premium Crimp Tooling |
| 其他规格 | 是 | 适用产品/相关产品 | Quick Connects Terminals, 18-22 AWG |
