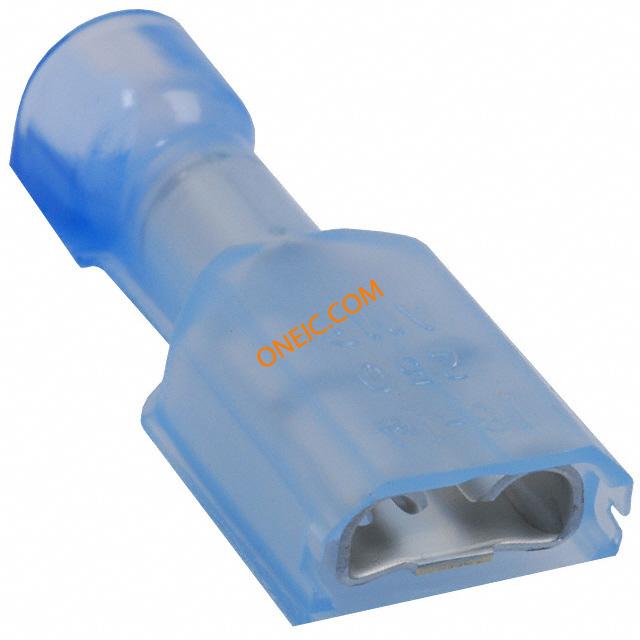

3-520406-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-16AWG RCP 21.7mm 10.38mm Tin Strip Terminals ULTRA-FAST PLUS RCPT Ultra-Fast Receptacles & Tabs CONN RECEPT FAST 14-16 AWG .250 Receptacle terminal, Ultra-Fast Plus 250 Quick Disconnect Terminal 14-16AWG RCP 21.7mm 10.38mm Tin Strip Product Highlights:ReceptacleProprietary Name = Ultra-Fast PlusReceptacle Style = StraightTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL, FEMALE DISCONNECT, 6.35MM BLUE CONNECTOR,RECEPTACLE,ULTRAFASTPLUS250,16-14AWG Receptacle Ultra-Fast Plug Plus 250 Series 16-14 AWG Housing:Nyl Clr: Blu Ultra Fast Plus 16-14 AWG Straight Fully Insulated Receptacle Assembly TE Connectivity Ultra-Fast Plus .250 系列 蓝色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 ULTRA-FAST 250 ASY REC 16-14 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27856CT |
| 零件号别名 | 41969-2 | 产品类别 | Terminals |
| 标准包装数量 | 2,200 | 工厂包装数量 | 2200 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Blue | 深度 | 10.38 mm |
| 表面处理 | Tin | 重量 | 0.002 |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 绝缘类型 | Insulated |
| 导线线规 | 16-14 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 0.187 in x 0.032 in | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 连接器类型 | :Female Disconnect |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Brass |
| 绝缘颜色 | :Blue | 总长度 | 0.855" (21.72mm) |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 绝缘直径 | 2.29-4.06 [.090-.160] | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :16AWG |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | ||
产品信息
| 类型 | Quick Disconnect Ter | 连接器性别 | Female |
| 系列 | 250 | CAD图纸 | 3D CAD Model |
| 应用 | Networking (Communications), Power (Multi-User) | 产品子类型 | Receptacle |
| 专有名称 | Ultra-Fast Plus | ||
