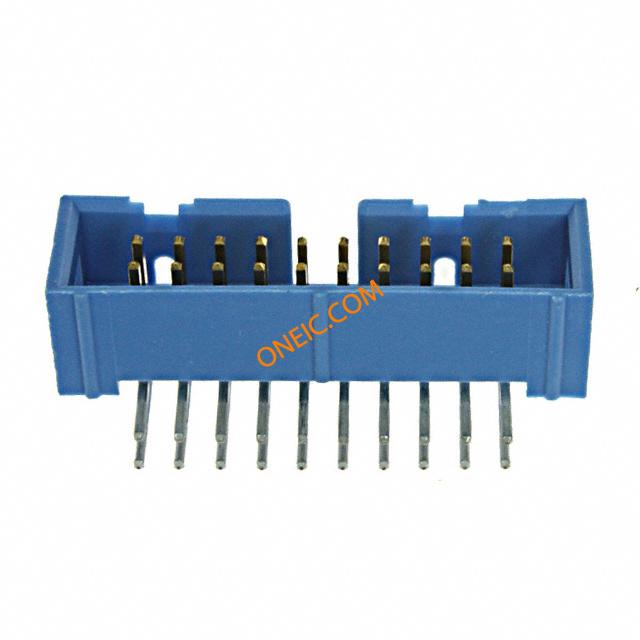

2-1761605-7

点击放大查看

2-1761605-7

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings HDR IDC P 20 RA .062 Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 20POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 20WAY 20wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA BLUE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量50

合规参数

RoHSRoHS Compliant海关税号85369010
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94 V-0

电气参数

量程（°/s）:TE - AMP-LATCH Series额定电压250 V ac
击穿电压:500V最大额定电流1A
绝缘电阻:1Gohm最小供电电压250VAC

机械参数

颜色Blue深度12.18 mm
间距2.54 mm高度9.22 mm
重量0.002材料（通用）:Glass Reinforced Thermoplastic
包装方式Tray遮蔽类型Yes
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin引脚间距:2.54mm
柱间距2.54 x 2.54 [.100 x .100]极化Center, Military
第二连接器Without触点形状Square
外壳颜色Blue安装类型Right
连接器类型Pin Header接触镀层Gold Over Nickel
安装样式Through Hole排数2
封装形式4-Sided外形（宽 x 高）Low
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度3.81 [0.150]主要材料IndustrialRectangular
尺寸/外形0.64 [.025]端接样式Solder
第一触头极性Pin (Male)配接方向With
触点数20接触件端接:IDC / IDT
位数20安装孔直径:0.9mm
接触长度 - 配合0.240" (6.10mm)端子柱长度2.60 [0.102]
接触镀层厚度30µin (0.76µm)第一连接器安装类型:PC Board

产品信息

类型Shrouded Header连接器性别HDR
系列AMP-LATCH极性:Bump
制造商全称AMP-LATCH产品子类型Headers - Shrouded
其他规格Without加载位置数All

环境参数

插拔次数:200温度额定值Standard
工作温度-65C to 105C

文档与媒体

在线文档
2-1761605-7?RQPN=2-1761605-7
在线文档
2-1761605-7
