点击放大查看

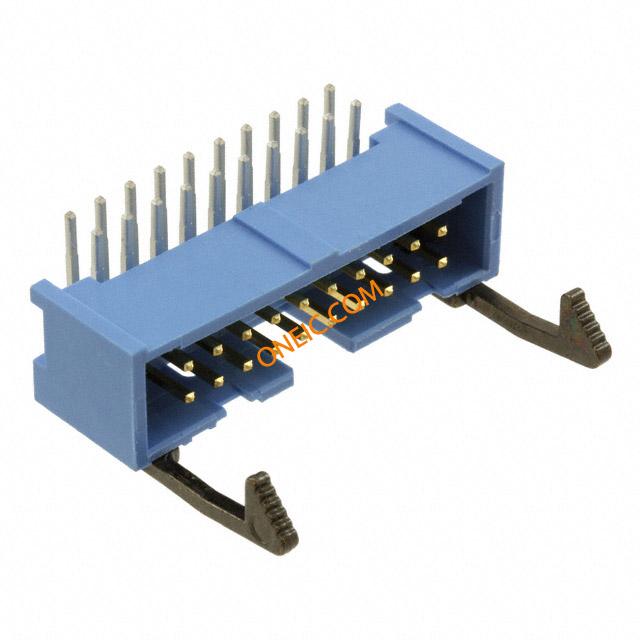

2-1761607-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 20POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 20P RA LARGE LATCH Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 20WAY 20waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA LG LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 16 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP-LATCH Series | 额定电压 | 250 V ac |
| 开关功能 | Ejection | 击穿电压 | :500V |
| 最大额定电流 | 1A | 绝缘电阻 | :1Gohm |
机械参数
| 颜色 | Blue | 深度 | :10.3mm |
| 间距 | 2.54 mm | 宽度 | :33mm |
| 长度 | :9.2mm | 重量 | 0.004 |
| 材料（通用） | :Glass reinforced thermo plastic | 包装方式 | Tube |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center, Military | 第二连接器 | Without |
| 触点形状 | Square | 外壳颜色 | Blue |
| 安装类型 | Right Angle | 连接器类型 | Pin Header |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Latch Lock/Eject Hooks |
| 排数 | 2 | 封装形式 | 4-Sided |
| 外形（宽 x 高） | Low | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 3.81 [0.150] |
| 主要材料 | IndustrialRectangular | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 20 |
| 接触件端接 | :Through Hole Right Angle | 位数 | 20 |
| 安装孔直径 | :0.9mm | 接触长度 - 配合 | 0.237" (6.02mm) |
| 端子柱长度 | 2.60 [0.102] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP LATCH | 极性 | :Bump/Clip |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | With |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :200 | 温度额定值 | Standard |
| 工作温度 | :105°C | ||
文档与媒体
相关型号
1658527-8
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN AMP-LATCH RCPT 622 20-POS 20 way IDC bump polarised socket Headers & Wire Housings IDC FSKT S 20 30AU PL Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY 20wayIDCbumppolarisedsocket Multipole socket DIN 41651 20P, 1658527-8, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-2041LF FEM SOCKT,LEAD FREE
2-1761605-7
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings HDR IDC P 20 RA .062 Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 20POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 20WAY 20wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA BLUE
1-1658526-3
te connectivity / amp
Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 20POS VERT GOLD W/SR 20 Way HE10 Skt w/ Strain Relief Headers & Wire Housings FEMALE SOCKET Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,20POSITION,MATINGPOLARIZATION TE Connectivity AMP-LATCH 609 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 609-2041LF FEM SOCKT,LEAD FREE
2-1658527-3
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings 622-2030LF=FSKT IDC S 20 30AU PL Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 20POS .100 622 SERIES Ribbon cable conn.rcpt.20way,2.54mm,blue Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = 622 SeriesNumber of Positions = 20ReceptacleMating Polarization Type = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY RIBBONCONN.RCPT.20WAY TE Connectivity AMP-LATCH 622 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-2030LF=FSKT IDC S 20 30AU

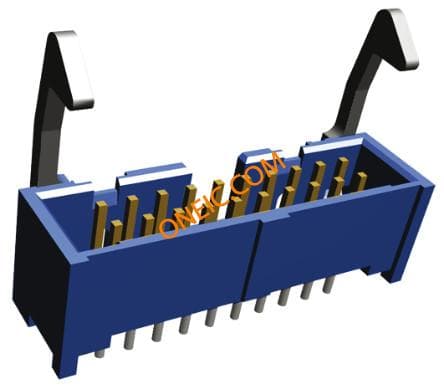

2-1761606-7
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 20POS VERT GOLD Header Vertical IDC Pin 20 way Amp-Latch Headers & Wire Housings IDC LOW PRO HDR 20P VERT LARGE LATCH Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 20WAY HEADER,PIN,IDC,AMP-LATCH,20POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P VERT LG LA
2-1761603-7
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings PIN HEADER 20 POS VERT LOW PROFILE Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 20POS 30AU TE Connectivity 2-1761603 Series 2.54mm Pitch 20 Way 2 Row Straight PCB Header, Solder Termination Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, CONNECTOR, HEADER, THT, 2.54MM, 20WAY HEADER,PIN,IDC,AMP-LATCH,20POS,LOWPROFILE,PCB,VERTICAL,BLUE Socket; IDC; male; PIN:20; straight; THT; gold plated; 2.54mm TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 20P VERT BLUE

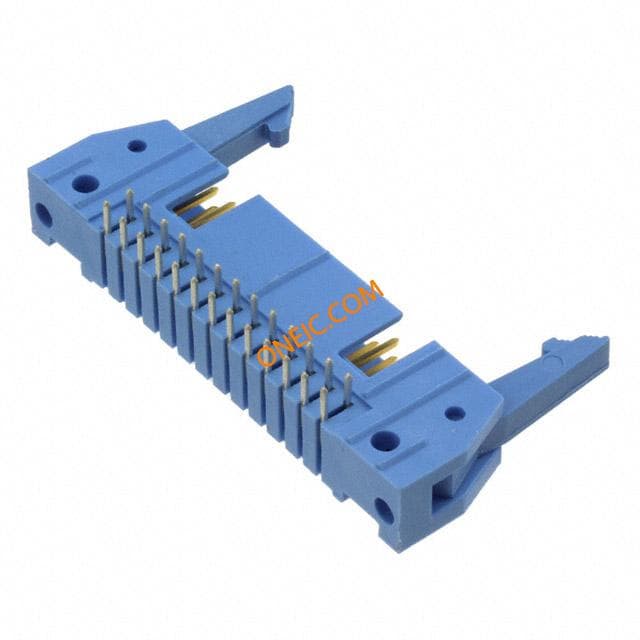

2-5499141-6
