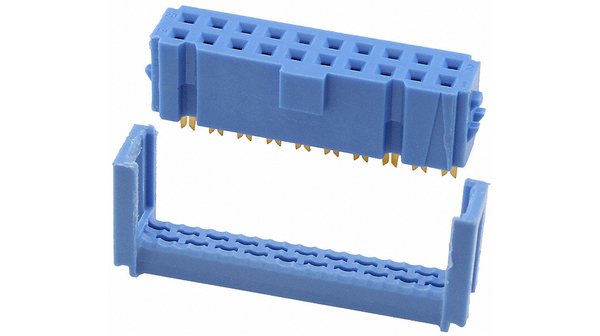

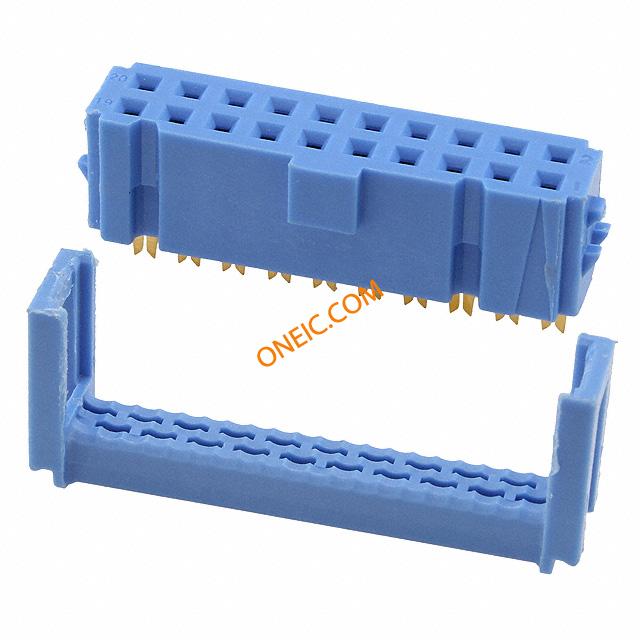

1658527-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN AMP-LATCH RCPT 622 20-POS 20 way IDC bump polarised socket Headers & Wire Housings IDC FSKT S 20 30AU PL Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY 20wayIDCbumppolarisedsocket Multipole socket DIN 41651 20P, 1658527-8, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-2041LF FEM SOCKT,LEAD FREE |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - 622 Series | 开关功能 | Unlatched |
| 击穿电压 | :500V | 最大额定电流 | 1 A |
| 绝缘电阻 | :1Gohm | 触点额定电流 | :1A |
机械参数
| 颜色 | Blue | 深度 | 7.05 mm |
| 间距 | 2.54 mm | 高度 | 12.1 mm |
| 重量 | 0.008 | 材料（通用） | :Glass Feinforced Thermoplastic |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 出线方向 | With | 导线线规 | 26-28 AWG, Stranded or Solid |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Female Socket | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Blue | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | 622 Series |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Beryllium Copper |
| 壳体材料 | Thermoplastic | 总长度 | 29.9 mm |
| 安装特性 | Without | 主要材料 | IndustrialRectangular |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 20 | 接触件端接 | :IDC / IDT |
| 位数 | 20 | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 产品特性 | Feed Through; Polarizing Key, Strain Relief | 极性 | :Bump/Clip |
| CAD图纸 | 3D CAD Model | 制造商全称 | 622Series |
| 产品子类型 | Socket Headers | 连接类型 | Ribbon Cable |
环境参数
| 插拔次数 | :200 | 工作温度 | - 55 C to + 125 C |
相关型号
1658527-8
te connectivity / amp
Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN AMP-LATCH RCPT 622 20-POS 20 way IDC bump polarised socket Headers & Wire Housings IDC FSKT S 20 30AU PL Conn IDC Connector RCP 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 20ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 20WAY 20wayIDCbumppolarisedsocket Multipole socket DIN 41651 20P, 1658527-8, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 20路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-2041LF FEM SOCKT,LEAD FREE

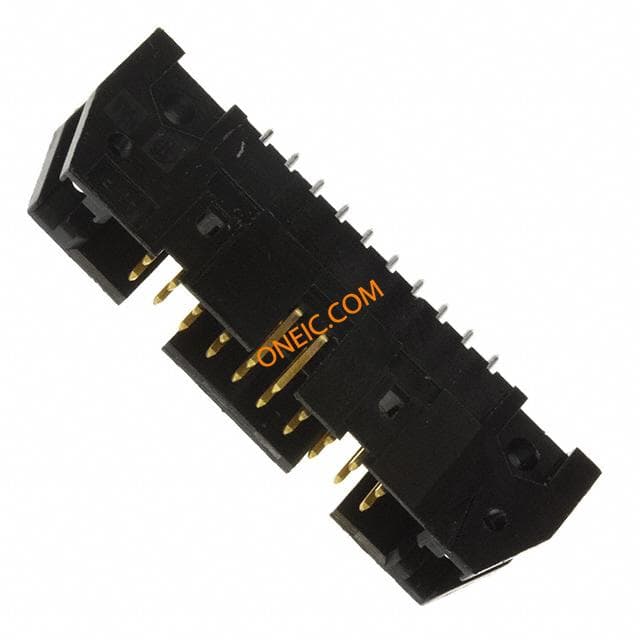

5102154-4
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 20POS .100 GOLD Header,UniversalEjectionPin Headers & Wire Housings 20 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 20POS, 2.54MM Header;UniversalEjectionPin;20;0.100x0.100in.;Vertical(PCB);4-Sided Pin header DIN 41651 20P, 5102154-4, TE Connectivity A/L UNIV HDR 20P VERT
5111448-4
te connectivity / amp
Conn IDC Connector M 20 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 20POS UNIV I/O W/EARS Ribbon cable conn.male,20 way,2.54mm,blk Headers & Wire Housings 020 UNIV I/O 30DP SLOT Conn IDC Connector M 20 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = Universal I/ONumber of Positions = 20PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 20WAY RIBBONCONN.MALE,20WAY TE Connectivity AMP-LATCH 系列 2行 20路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 020 UNIV I/O 30DP SLOT
2-1761605-7
te connectivity / amp
Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings HDR IDC P 20 RA .062 Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 20POS 30AU TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 20WAY 20wayIDClowprofiler/amountheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA BLUE
2-1761607-7
te connectivity / amp
Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 20POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 20 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings IDC LOW PRO HDR 20P RA LARGE LATCH Conn Ejector Header HDR 20 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 202.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 20WAY 20waymaler/afrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 20路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 20P RA LG LAT

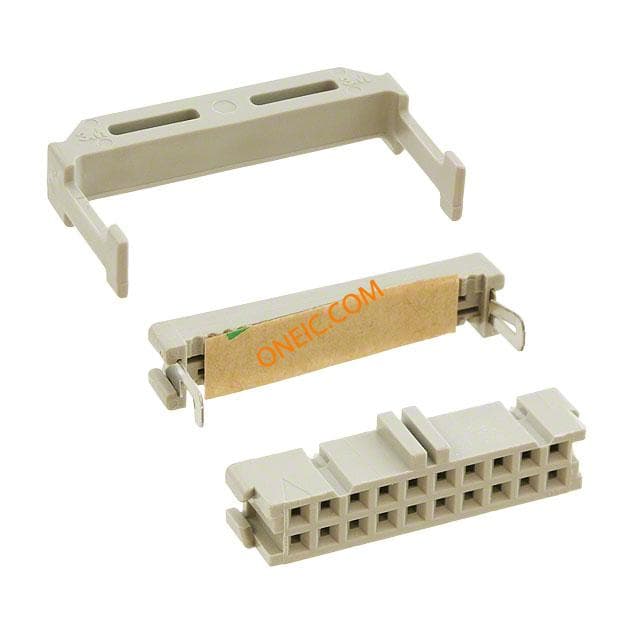

3421-6620
