点击放大查看

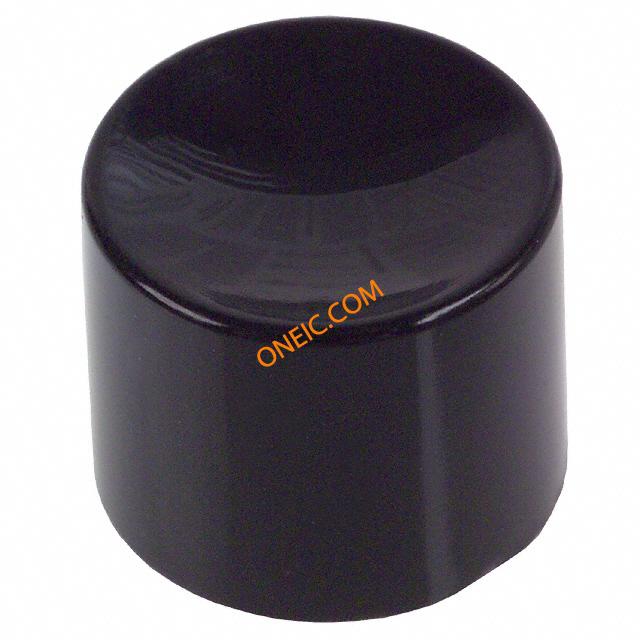

1825068-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | C22004 CAP BLACK Toggle, Pushbutton and Rocker Switches Pushbutton Switch Boot Seal Black Pushbutton Switch Boot Seal Black Search Keywords:Switches, Knobs, PCB, CAP PUSHBUTTON ROUND BLACK Green Series, Black Pushbutton Cap |
| 分类 |
商业参数
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 输入端 | .402 | ||
机械参数
| 尺寸 | 10.00mm Dia x 8.00mm H | 颜色 | Black |
| 形状 | Round, Concave | 包装方式 | 盒和纸箱 |
| 安装类型 | Snap Fit | 兼容外壳尺寸（如TM-700等） | 绿色系列按钮开关 |
| 安装高度（最大） | 8.001 mm [ .315 in ] | 外壳材料及表面处理 | 黑色 |
产品信息
| 备注 | See Drawings 1805040 and 1805041 for switches. | 类型 | 圆形 |
| 已删除 | Compliant | 开关类型 | Green Series Push Button Switches |
| 照明类型 | Non-Illuminated | 制造商全称 | Alcoswitch |
| 产品子类型 | 附件 | 附件类型 | Pushbutton Switch Boot Seal |
| 适用产品/相关产品 | MSPM, MPE, MPA6 and MPS Series | ||
