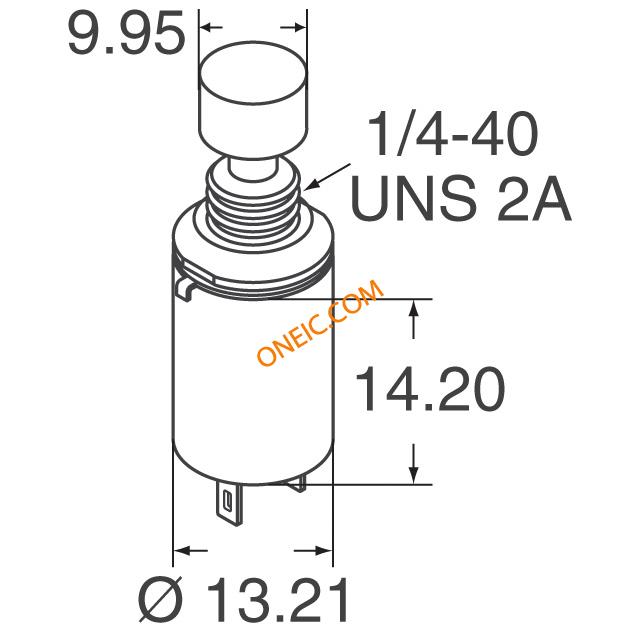

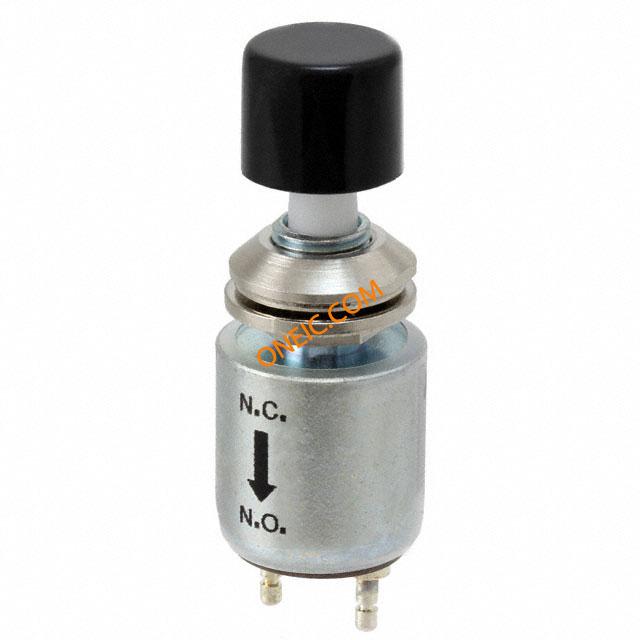

MSPM101B004

制造商	TE Connectivity Ltd.
描述	Pushbutton Switches SPST NC BLK PIN TERM SWITCH PUSH SPST-NC 0.1A 50V MSPM101B004
分类	开关按钮开关按钮开关

对参数有疑问？问 AI 助手

商业参数

零件号别名	1825538-1	产品类别	Pushbutton Switches
标准包装数量	100

合规参数

RoHS

RoHS Compliant

ESD保护

Without

电气参数

电路	SPST-NC	额定功率	1 VA
额定电压	50V	开关功能	On-Mom
元件数量	Single	额定直流电压	50
最大额定电流	100mA (DC)	电容比测试条件	Black

机械参数

高度	No	密封型	Yes
直径	9.96 mm [ .392 in ]	包装方式	Bulk
螺纹尺寸	1/4-40 UNS-2A	触点形式	SPST
致动器类型	Round, Button	安装类型	Panel Mount, Rear
衬套螺纹	1/4-40	接触镀层	Gold
安装样式	Through Hole	驱动力	113.4 – 198.5 g [ 4 – 7 oz ]
执行器长度	8.02 mm [ .316 in ]	插入件材料	铜合金
壳体材料	Steel	执行器材料	Polyamide
端接样式	PC Pin	按钮样式/尺寸	Extended
按钮/帽颜色	Black	衬套/护套类型	Threaded
面板开孔尺寸（外形）	Circular - 6.35mm Dia	外壳与棱镜材料	Steel

产品信息

备注	提供黑色帽。	类型	Standard
系列	MSPM	功能	NC, Momentary
开关类型	按钮	照明类型	No
产品子类型	开关	配置	Single Pole - Single Throw
电气寿命	50,000 Cycles	联数	No
其他规格	柔软

环境参数

防护等级	No	温度额定值	Standard
工作温度	-10°C ~ 80°C

文档与媒体

PDF 文档

Pushbutton Switches cat.

PDF 文档

TE_MSPM_PB.pdf

相关型号

1825068-2

te connectivity / amp

Switch Access Push Button Switch Boot Seal Toggle, Pushbutton and Rocker Switches Switch Access Push Button Switch Boot Seal Search Keywords:Switches, Knobs, PCB, CAP PUSHBUTTON ROUND RED Green Series, Red Pushbutton Cap C22204 CAP RED

¥1.7932

详情

G12C

TE Connectivity / Alcoswitch

Switch Accessories BUTTON GUARD CHROME GUARD PB 1/4-40 CHROME BRASS Switch Access Push Button Switch Guard Loose Piece Switch Access Push Button Switch Guard Loose Piece Product Highlights:AccessoryNot TactilePackaging Method = Loose PieceNot IlluminatedAccessory Type = Guard SWITCH GUARD Guard;Guard;ChromedBrass;Plain;1/4to40;C12Cap,C22Cap G12C=BUTTON GUARD CHROME

¥8.5000

详情

1825610-1

te connectivity / amp

BP1440004=BOOT, PUSHBUTTON Toggle, Pushbutton and Rocker Switches BP1440004=Boot, Pushbutton BP1440004=Boot, Pushbutton Search Keywords:Switches, Knobs, PCB, BOOTSEAL MPA3/MPS/MSPM TP BLACK Accessory Black 1/4-40 Thread Size Pushbutton Switch Boot Seal

¥24.0040

详情

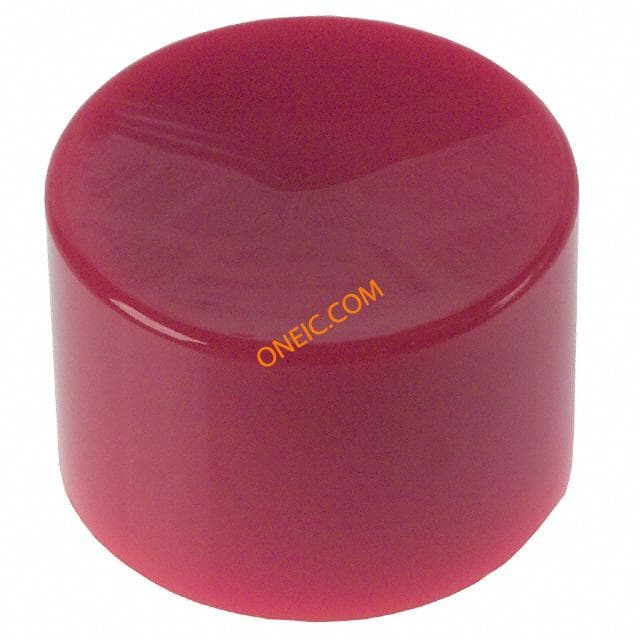

1825069-2
