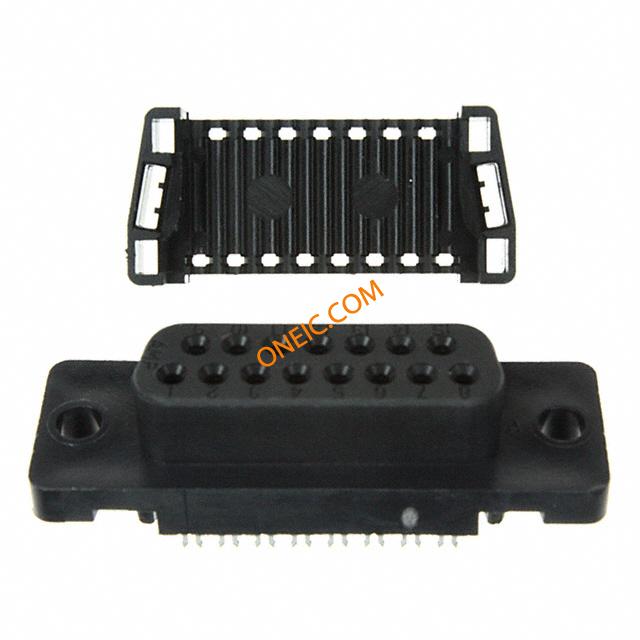

1658614-3

点击放大查看

1658614-3

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature SKT 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors LPP RECEPTACLE 15P Standard Cable Connectors CONN D-SUB RECEPT 15POS 30 GOLD AMPLIMITE HDF-20 d-sub IDC socket,15 way Conn D-Subminiature SKT 15 POS 2.76mm IDT RA Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 15ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, IDC, D, PLASTIC, 15WAY Conn;D-Ribbon;CableSocket;15Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell TE Connectivity AMPLIMITE HDF-20 系列 1.27mm 节距 15 路 IDC D-Sub 带状电缆连接器, 插座, 热塑性外壳 15 POS HDF RCPT, AP, LEAD FREE
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量1

合规参数

RoHSRoHS Compliant海关税号85369010
抗辐射加固No无铅定义Not relevant for lead free process
认证机构:CSA, ULRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite HDF-20 Series额定电压250 V ac
接触电阻:25mohm最大额定电流1.25A
最小供电电压250VAC触点额定电流:1.25A

机械参数

颜色Black深度18.61mm
间距2.76 mm宽度12.59mm
高度12.59 mm长度39.14mm
重量0.01材料（通用）:Black Thermoplastic
包装方式Tube电缆类型Ribbon Cable
外壳尺寸2端接方式IDT
触点尺寸20触头类型Signal
第二连接器With电缆开口747275-3
安装类型Cable Mount连接器类型Insulation Displacement Crimp (IDC)
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
安装样式Wire排数2
外壳材料（壳体）Thermoplastic连接器样式D-Sub
锁定特性Mounting Holes本体材料:Plastic
外形（宽 x 高）Low触头材料Phosphor Bronze
壳体材料Thermoplastic总长度39.14 mm
尺寸/外形39.14 x 12.59 x 18.61mm接地凹痕Without
端接样式IDC触点数15
接触件端接:IDC / IDT绝缘直径0.81 – 0.97 [0.032 – 0.038]
位数15外壳尺寸-插件All Plastic
接触镀层厚度30µin (0.76µm)外部壳体材料Thermoplastic
线规或范围 - mm²0.08 - 0.15 [28-26]第一连接器安装类型:Cable
外壳尺寸，连接器布局2 (DA, A)

产品信息

备注All plug assemblies are supplied with housing and cover preassembled类型D-Subminiature
等级Standard连接器性别SKT
系列HDF-20产品特性Feed Through
CAD图纸3D CAD Model对数747275-3
产品子类型Connector端口数1 Port

环境参数

工作温度-55°C ~ 105°C

文档与媒体

PDF 文档
1639165.pdf
