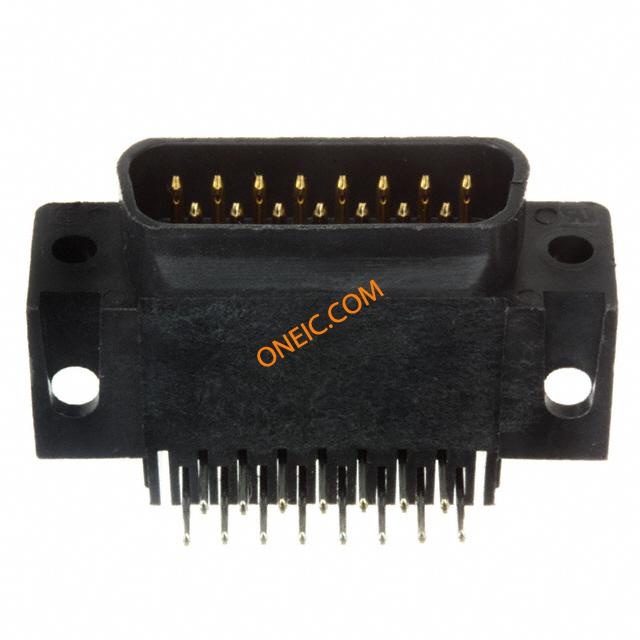

747468-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors PLUG PLASTIC SHL 15P Standard Board Mount Connectors CONN D-SUB PLUG R/A 15POS PCB AU Conn D-Subminiature PIN 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:15 PositionsHousing Gender = PlugPCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub |
| 分类 |
商业参数
| 其他名称 | A23376 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 112 |
合规参数
| RoHS | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 间距 | 2.74 mm |
| 密封型 | No | 占位面积 | 14.99 [.590] |
| 包装方式 | Tray | 外壳尺寸 | 2 |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | Without | 触点形状 | Round |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Zinc | 电路板厚度 | 0.093 [2.36] |
| 连接器样式 | D-Sub | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 面板安装类型 | Without | 尺寸/外形 | 0.66 [.026] |
| 接地凹痕 | Without | 端接样式 | Solder |
| 连接器颜色 | None | 触点数 | 15 |
| 位数 | 15 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.18 [.125] | 端子柱长度 | 3.18 [0.125] |
| 接触镀层厚度 | Flash | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 制造商全称 | AMP | ||
