5208007-2

点击放大查看

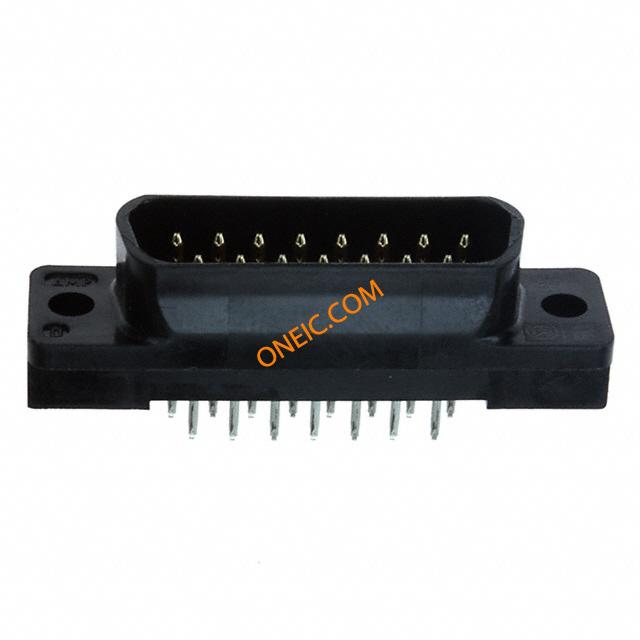

5208007-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15P V/MNT Standard Board Mount Connectors CONN D-SUB PLUG STR 15POS PCB AU AMPLIMITE HD-20 PCB Plug Straight 15P STRAIGHT POST CONNECT;D-SUB;PLASTIC PLUG W/STD MOUNT;15 Conn D-Subminiature PIN 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, PLUG Conn;D-Sub;PCBPlug;15Pos;STR;HD-20Series;28-24AWG;AllPlasticShell HD-20 PLUG 15P VERT
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

产品类别D-Sub Standard Connectors标准包装数量Rail / Tube
工厂包装数量13

合规参数

RoHSRoHS Compliant海关税号85366910
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

接地方式Without量程（°/s）:TE CONNECTIVITY - Amplimite HD-20 Series
额定电压125V最大额定电流6A

机械参数

颜色Black间距2.74 mm
密封型No重量0
包装方式Tube外壳尺寸2
端接方式Solder触头类型Signal
第二连接器Without触点形状Round
安装类型Through Hole连接器类型Plug, Male Pins
接触镀层Gold法兰特征Housing/Shell (Unthreaded)
接地类型Without安装样式Through Hole
排数2电路板厚度0.062 – 0.093 [1.57 – 2.36]
连接器样式D-Sub本体材料:Plastic
外形（宽 x 高）Standard触头材料Brass
壳体材料Thermoplastic面板安装类型Without
尺寸/外形0.66 [.026]接地凹痕Without
端接样式Through Hole连接器颜色None
触点数15接触件端接:Through Hole Vertical
位数15外壳尺寸-插件All Plastic
安装孔直径3.05 [.120]端子柱长度3.18 [0.125]
接触镀层厚度Flash外壳尺寸，连接器布局2 (DA, A)

产品信息

备注Plugs are preloaded with size 20 DF posted pin contacts类型D-Subminiature
连接器性别PIN系列HD-20
制造商全称AMP

环境参数

工作温度-55°C ~ 105°C

文档与媒体

在线文档
5208007-2?RQPN=5208007-2
在线文档
5208007-2
PDF 文档
1648470.pdf

相关型号

1-5747299-6

1-5747299-6

te connectivity / amp

Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S V/MNT Standard Board Mount Connectors CONN D-SUB RCPT STR 15POS PCB AU Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT Conn;D-Sub;PCBSocket;15Pos;STR;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.74mm 节距 15 路 直向 通孔安装 PCB D-sub 连接器 插座 15 RCPT SP/FMS SCRLK
