点击放大查看

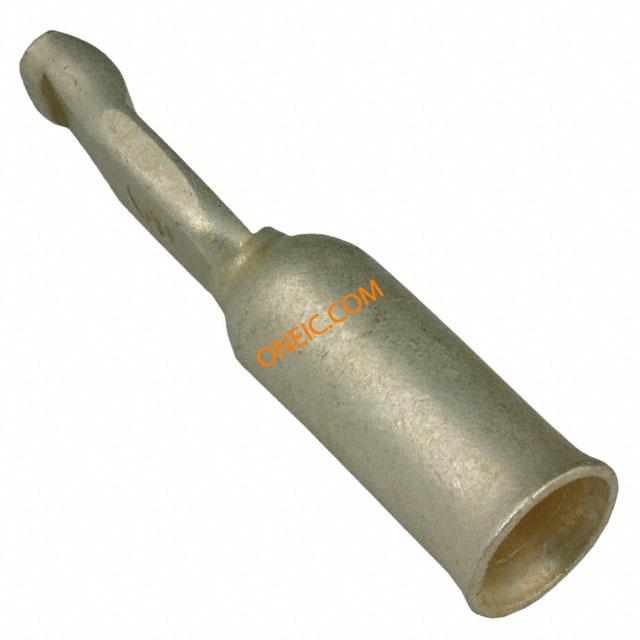

1445995-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece Power Connectors CONN TERM NON GENDERED 2AWG CONTACT; 120 PWR PROD;2AWG Power to the Board CONTACT 120 SERIES 2 AWG Contact SKT Crimp ST Cable Mount Loose Piece Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant CONTACT,120PWRPROD,2AWG Contact SKT Crimp ST Cable Mount, 120 PWR ,2AWG CONTACT, 120 PWR PROD,2AWG |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bag |
| 工厂包装数量 | 300 | ||
合规参数
| RoHS | Not applicable / RoHS Compliant | UL等级 | 获得认可 |
| UL档案号 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 120 A | 连接器类型 - 电压输入 | 冷间锻造 |
机械参数
| 镀层 | 银 | 包装方式 | Bulk |
| 电缆类型 | 分离式导线 | 导线线规 | 2 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 触点形状 | 直式 | 安装类型 | 闭式压线筒 |
| 释放力 | 带有 | 电缆直径 | 67100 – 69073 |
| 连接器类型 | Connector Power | 接触镀层 | Silver |
| 外壳材料（壳体） | 镍 | 插入件材料 | 铜合金 |
| 触头材料 | Copper | 包装数量 | 1 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male), Socket (Female) |
| 接触件端接 | Crimp | 接触镀层厚度 | 50 µm [ 1.27 µin ] |
| 线规或范围 - AWG | 2 | 护套（绝缘）厚度 | 50 µm [ 1.27 µin ] |
产品信息
| 类型 | Machined | 连接器性别 | SKT |
| 系列 | 120 AMP | 产品子类型 | Contacts |
| 应用细节 | Power | ||
环境参数
| 工作温度 | -40 – 105 °C [ -40 – 221 °F ] | ||
