点击放大查看

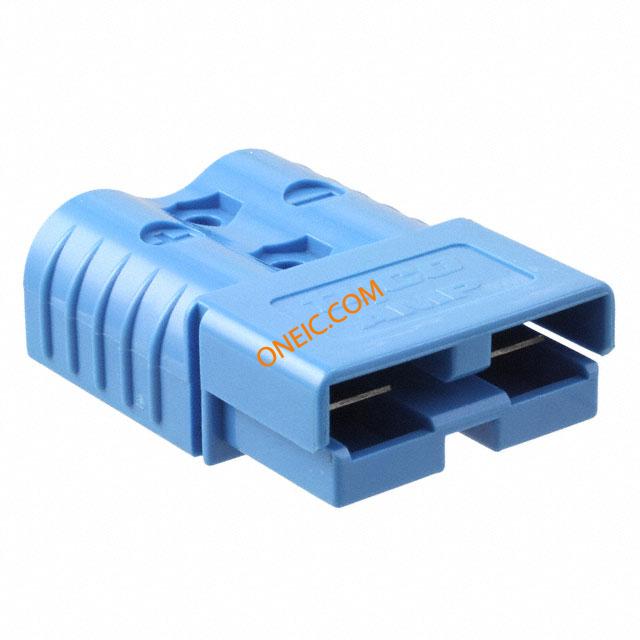

1445994-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Battery M 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Power Connectors CONN HOUSING 2POS BLUE Power to the Board HSG SUBASY BLUE 120A Conn Battery M 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:Housing120 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 120 Amps.Housing Color = BlueSearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 120AHSGSUBASY,BLUE 120A HSG SUBASY,BLUE |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bag |
| 工厂包装数量 | 75 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 120 A | ||
机械参数
| 颜色 | Blue | 宽度 | 44.31 mm [ 1.744 in ] |
| 高度 | 20.6 mm [ .811 in ] | 长度 | 63.45 mm [ 2.498 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 蓝色 | 电缆类型 | 分离式导线 |
| 导线线规 | 6 – 2 | 端接方式 | Solder |
| 触头类型 | Non Gendered | 安装类型 | Through Hole |
| 电缆直径 | 25656 – 69073 | 连接器类型 | Non Gendered |
| 接触镀层 | Silver | 紧固类型 | Spring Retention |
| 安装样式 | Panel | 排数 | 1 |
| 触头材料 | Copper | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 75 | 面板安装类型 | 不带 |
| 主要材料 | HighCurrent | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male), Socket (Female) | 触点数 | 2 |
| 堆叠方向 | Side to Side | 接触件端接 | Crimp |
| 位数 | 2 | 外壳尺寸-插件 | 插头/插座 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 典型触点布局 | Power |
| 线规或范围 - AWG | 2-6 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Battery |
| 连接器性别 | M | 制造商全称 | 120AMPPowerSeries |
| 产品子类型 | Connectors | 应用细节 | Power |
环境参数
| 工作温度 | -20°C ~ 105°C | ||
