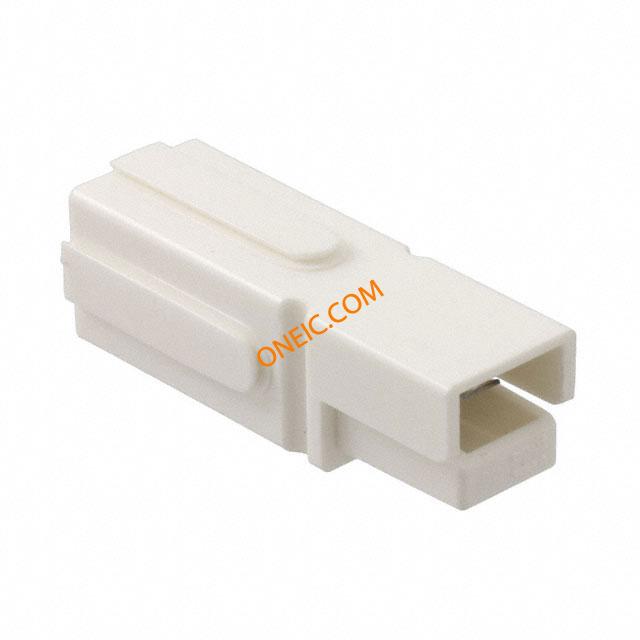

1604001-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 1 POS Crimp ST Loose Piece Power Connectors CONN HOUSING 1POS WHITE Power to the Board HSG SUBASY WHITE 120A SGL POLE Conn Housing PL 1 POS Crimp ST Loose Piece Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 120A SGL POLE HSG SUBASY,WHITE |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bag |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 120 A | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | White | 深度 | 69.6 mm |
| 间距 | Not Required mm | 宽度 | 22.4 mm [ .96 in ] |
| 高度 | 23.99 mm | 长度 | 22.4 mm [ .96 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 电缆类型 | 分离式导线 |
| 导线线规 | 2-6 AWG | 触头类型 | Non Gendered |
| 外壳颜色 | White | 安装类型 | Straight |
| 电缆直径 | 67100 – 69073 | 连接器类型 | Non Gendered |
| 接触镀层 | Silver | 紧固类型 | Spring Retention |
| 排数 | 1 | 触头材料 | Copper |
| 壳体材料 | Polycarbonate (PC) | 总长度 | 23.99 mm |
| 包装数量 | 110 | 面板安装类型 | 不带 |
| 触点数 | 1 | 接触件端接 | Crimp |
| 绝缘直径 | 15 mm [ .591 in ] | 位数 | 1 |
| 外壳尺寸-插件 | 插头/插座 | 绝缘材料 - 材质 | Polycarbonate (PC) |
| 线规或范围 - AWG | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Stackable |
| 产品子类型 | Plug Housings | 应用细节 | Power |
环境参数
| 工作温度 | -20°C ~ 105°C | ||
