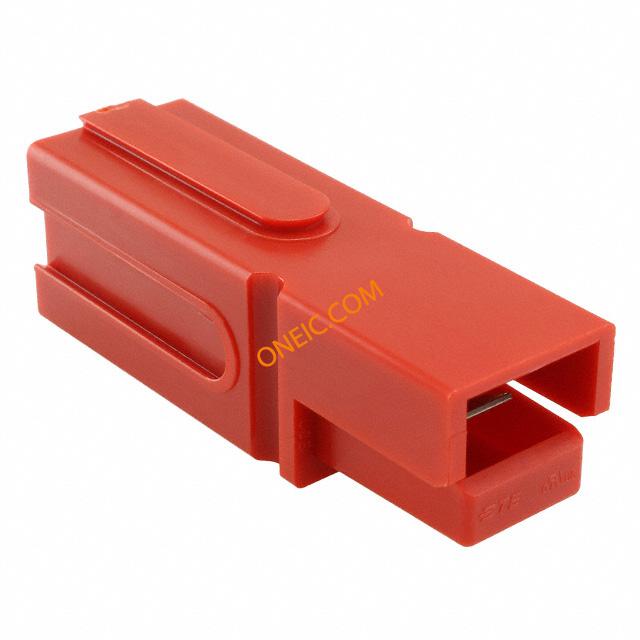

点击放大查看
1604001-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 1 POS Crimp ST Loose Piece Power Connectors CONN HOUSING 1POS RED Power to the Board HSG SUBASY RED 120A SGL POLE 120A SGL POLE HSG SUBASY,RED 120A SGL POLE HSG SUBASY,RED Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant |
| 分类 |
商业参数
| 标准包装规格 | 110 | 产品类别 | Power to the Board |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 24 V | 供电电压 | 600 |
| 最大额定电流 | 120 A | ||
机械参数
| 颜色 | Red | 宽度 | 22.4 mm [ .96 in ] |
| 高度 | 69.6 mm [ 2.74 in ] | 长度 | 22.4 mm [ .96 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 红色 | 电缆类型 | 分离式导线 |
| 导线线规 | 2-6 AWG | 触头类型 | Non Gendered |
| 安装类型 | Straight | 电缆直径 | 67100 – 69073 |
| 连接器类型 | Non Gendered | 接触镀层 | Silver |
| 紧固类型 | Spring Retention | 排数 | 1 |
| 触头材料 | Copper | 壳体材料 | Polycarbonate (PC) |
| 包装数量 | 110 | 面板安装类型 | 不带 |
| 接触件端接 | Crimp | 绝缘直径 | 15 mm [ .591 in ] |
| 位数 | 1 | 外壳尺寸-插件 | 插头/插座 |
| 绝缘材料 - 材质 | Polycarbonate (PC) | 线规或范围 - AWG | 2 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 产品特性 | Stackable |
| 产品子类型 | Plug Housings | 应用细节 | Power |
环境参数
| 工作温度 | -20°C ~ 105°C | ||
