点击放大查看

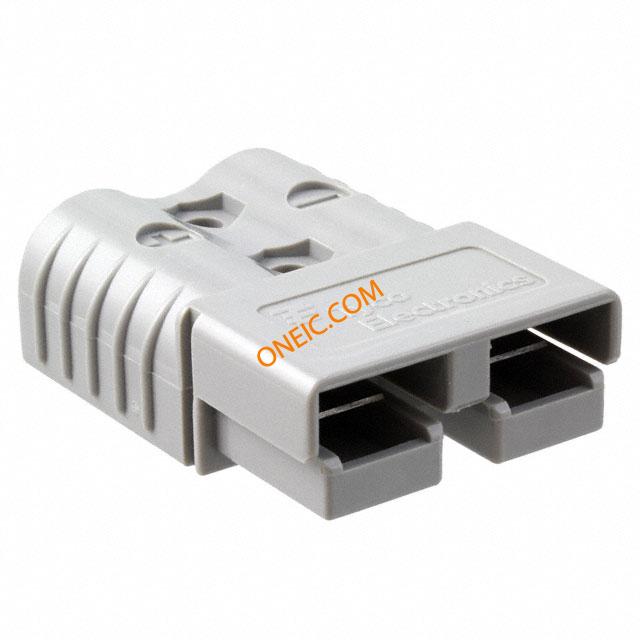

1445994-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS Crimp ST Bulk Power Connectors CONN HOUSING 2POS GRAY Amp Power Series 120 Housing Gray Power to the Board 120A HSG SUBASY GRAY Conn Housing RCP 2 POS Crimp ST Bulk Product Highlights:Housing120 AMP SeriesConnector Type = 2-Pole Battery ConnectorCurrent = 120 Amps.Housing Color = GraySearch Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant 120AHSGSUBASY,GRAY 120A HSG SUBASY,GRAY |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 75 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 标准编号 | UL |
| UL阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V ac/dc | 供电电压 | 600 |
| 最大额定电流 | 120A | ||
机械参数
| 颜色 | Gray | 宽度 | 44.31 mm [ 1.744 in ] |
| 高度 | 20.6 mm [ .811 in ] | 长度 | 63.45 mm [ 2.498 in ] |
| 密封型 | 不密封 | 包装方式 | Bulk |
| 壳体颜色 | 灰色 | 电缆类型 | 分离式导线 |
| 导线线规 | 2 AWG | 端接方式 | Crimp |
| 触头类型 | Non Gendered | 安装类型 | Straight |
| 电缆直径 | 25656 – 69073 | 连接器类型 | Non Gendered |
| 接触镀层 | Silver | 紧固类型 | Spring Retention |
| 排数 | 1 | 触头材料 | Copper |
| 壳体材料 | Thermoplastic | 包装数量 | 75 |
| 面板安装类型 | 不带 | 主要材料 | HighCurrent |
| 触点数 | 2 | 堆叠方向 | Side to Side |
| 接触件端接 | Crimp | 位数 | 2 |
| 外壳尺寸-插件 | 插头/插座 | 绝缘材料 - 材质 | Polycarbonate (PC) |
| 线规或范围 - AWG | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 120 AMP Power |
| 制造商全称 | 120AMPPowerSeries | 产品子类型 | Plug Housings |
| 应用细节 | Power | ||
环境参数
| 工作温度 | -20°C ~ 105°C | ||
