点击放大查看

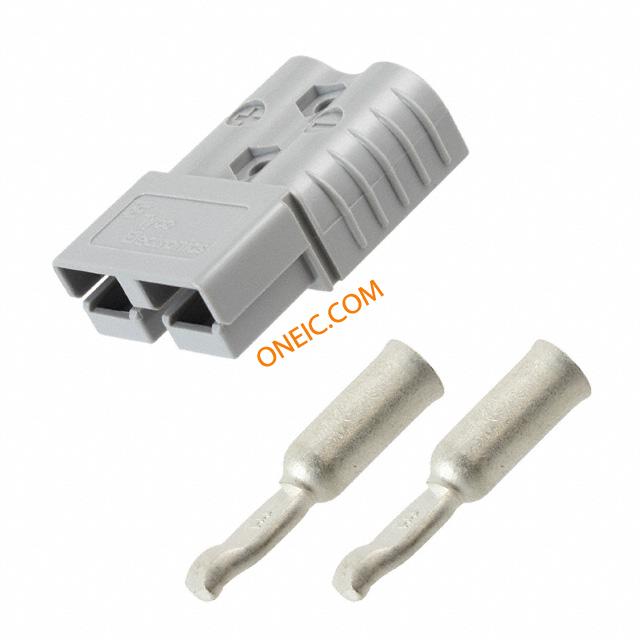

1445999-1

制造商	TE Connectivity Ltd.
描述	Conn Power M 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Power Connectors CONN PLUG 2POS 4AWG SILVER CRIMP Power to the Board 120A PWR PROD KIT 4 AWG GRAY Conn Power M 2 POS Solder ST Thru-Hole 2 Terminal 1 Port Product Highlights:Connector Kit120 AMP SeriesConnector Type = 2-Pole Battery ConnectorWire Size (AWG/CM) = 4 AWGCurrent = 120 Amps.Search Keywords:Power Wiring Devices, Battery Connectors & Battery Assemblies, Anderson plug, Anderson connectors, Anderson power, Anderson APP, Anderson powerpole, Power Series, FPR, Finger Probe Resistant OPTOCOUPLERS 120A PWR PROD KIT,4 AWG,GRAY
分类	工具与焊接解决方案压接钳、压接机、压力机压接钳

对参数有疑问？问 AI 助手

商业参数

产品类别	Power to the Board	标准包装数量	Bag
工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压

600V

最大额定电流

120A

机械参数

颜色	Gray	重量	0
包装方式	Bulk	导线线规	4 AWG
端接方式	Solder	安装类型	Through Hole
连接器类型	Assembly (Kit), Non Gendered	接触镀层	Silver
紧固类型	Spring Retention	排数	1
连接器样式	2 Poles	触头材料	Copper
壳体材料	Polycarbonate (PC)	位数	2
绝缘材料 - 材质	Polycarbonate (PC)	接触镀层厚度	50µin (1.27µm)
线规或范围 - AWG	4

产品信息

类型	Power	连接器性别	M
系列	:AMP Power

环境参数

工作温度

-20°C ~ 105°C

文档与媒体

PDF 文档

1650929.pdf
