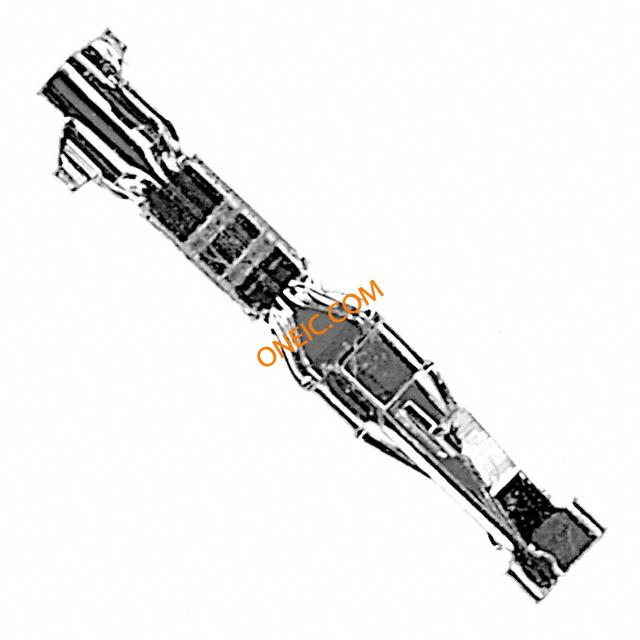

104481-6

点击放大查看

104481-6

制造商
TE Connectivity Ltd.
描述Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 28-32AWG TIN CRIMP Headers & Wire Housings SOCKET 32-28 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .64 - 1.52 mmWire Range = 0.03-0.09² [32-28] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE SHORT POINT RECP CONT LP
分类
连接器解决方案接触件接触件（通用）
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU其他名称A28326
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量500

合规参数

RoHSContains lead / RoHS non-compliant认可国家CSA LR7189, UL E28476

电气参数

额定电压300 VAC供电电压300
接触电阻12 mohm输入电阻5000
钳位电压750连接器阻抗压接
最大额定电流3 A最小供电电压300VAC

机械参数

深度2.66 mm间距Not Required mm
高度2.28 mm包装方式Bulk
电缆类型分离式导线导线线规28-32 AWG
端接方式Crimp触头类型Signal
外壳颜色Not Required安装类型Straight
插针或插孔Socket连接器类型Connector Headers and PCB Receptacles
接触镀层Bright Tin-Lead Over Nickel安装样式Cable
插入件材料铜合金 C7025操作力Standard
触头材料Copper Alloy壳体材料Not Required
总长度11.7 mm包装数量500
绝缘高度Yes端接样式Crimp
第一触头极性Socket (Female)触点数Not Required
接触件端接Crimp绝缘直径.64 – 1.52 mm [ .025 – .06 in ]
镀层厚度（通用）100触头长度-柱信号（数据）/电源
接触件表面处理 - 配合锡铅接触镀层厚度100µin (2.54µm)

产品信息

类型Contact连接器性别SKT
系列AMPMODU MOD IV产品子类型Contacts

环境参数

工作温度- 65 C to + 105 C
