点击放大查看

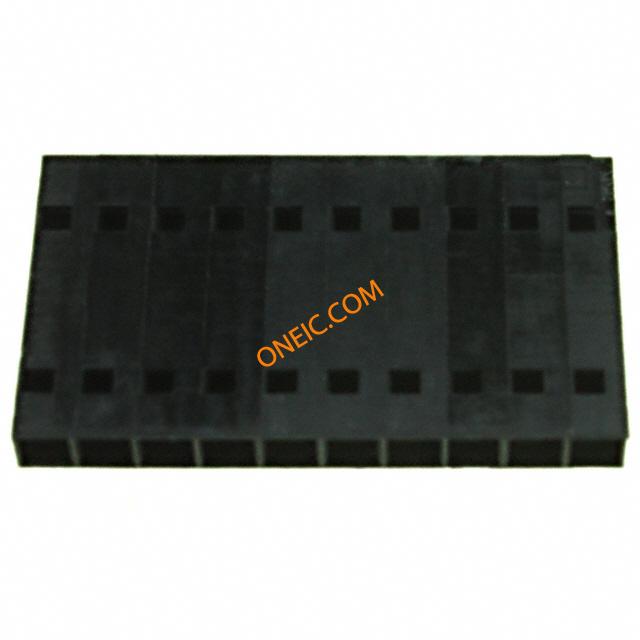

103688-9

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .1" UNLOAD Headers & Wire Housings 10 MTE RCPT HSG SR P Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 MTE RCPT HSG SR PLAIN .100
分类	光电子学LED照明LED照明模块

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A28382
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	无铅定义	Not relevant for lead free process
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

供电电压	600 VAC	输入电阻	5000
连接器阻抗	刺破式压接 (IDC), 压接	最大额定电流	3 A
保护额定电压（VPR）	600 V

机械参数

颜色	Black	间距	2.54 mm
高度	.25 mm [ .098 in ]	长度	2.53 mm [ .998 in ]
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	导线线规	22-30 AWG
排间距	2.54 mm	触头类型	Female Socket
第二连接器	Without	外壳颜色	Black
安装类型	Straight	连接器类型	Crimp, Insulation Displacement Crimp (IDC)
安装样式	Wire	排数	1
封装形式	Receptacle	插入件材料	磷青铜
触头材料	Copper Alloy	壳体材料	Thermoplastic
包装数量	1	面板安装类型	不带
端接样式	Crimp	第一触头极性	Socket (Female)
配接方向	Without	触点数	10
接触件端接	Crimp	位数	10
兼容外壳尺寸（如TM-700等）	压接扣入式接触件	安装孔直径	不带
中心触点材料	2.54 [.100]	典型触点布局	同轴
静电放电屏蔽	不带

产品信息

备注	Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta	类型	Housing
连接器性别	RCP	系列	MTE
预加载	No	编码、键控	No
产品子类型	Housing

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65 – 105

文档与媒体

在线文档

103688-9?RQPN=103688-9

相关型号

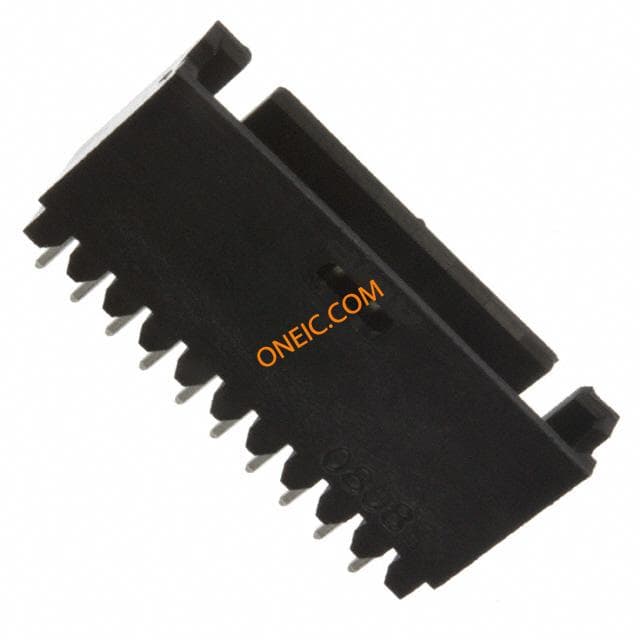

5-103080-8

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER VERT 10POS PCB TIN Headers & Wire Housings 10P HDR SRST SHRD 10 MODII HDR SRST SHRD .100CL 10 MODII HDR SRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

¥6.0480

详情

1-146282-0

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADR BRKWAY .100 10POS STR Headers & Wire Housings 10 MODII HDR SRST B/A .100CL Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 10Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR SRST B/A .100CL

¥2.5200

详情

104347-8

te connectivity / amp

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 10 MODII HDR SRRA B/A W/HLDWN .100 inch AMPMODU Headers CONN HEADER 10POS R/A GOLD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = SingleNumber of Positions = 10Mating Post Length = 5.84 mm

¥2.7864

详情

103414-8

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED VER SNGL 10 with standoffs Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 10Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, TE Connectivity AMPMODU 系列 2.54mm节距 10路 (1排) 直 PCB 针座, 焊接端接, 3A 10 MODII HDR SRST SHRD .100CL

¥8.6400

详情

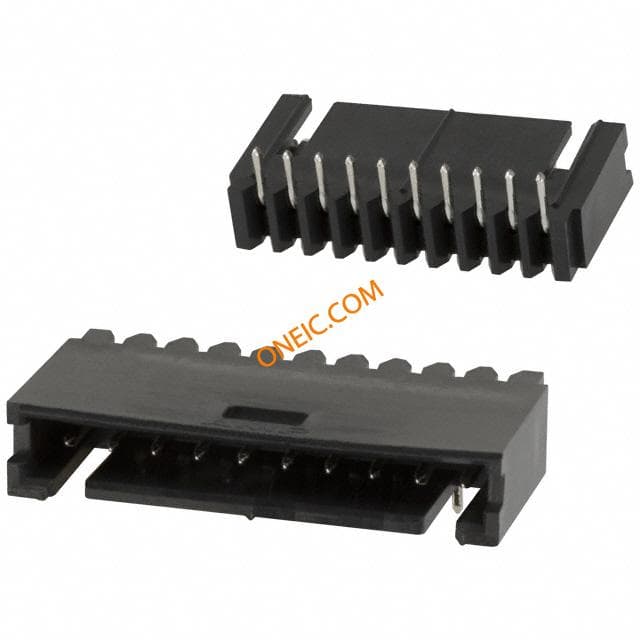

5-102523-8

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 10POS PCB TIN 10 MODII HDR SRRA SHRD .100CL 10 MODII HDR SRRA SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

¥11.5920

详情

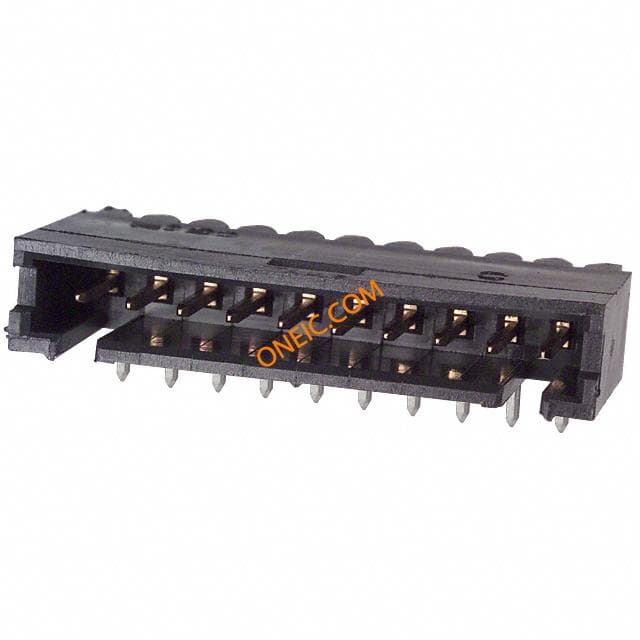

5-103361-8

te connectivity / amp

Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 10POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA SNGL 10 with standoffs Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 2.54mm,Header,shrd,SR,10W,90Â°,Sn TE Connectivity AMPMODU Mod II 系列 2.54mm节距 10路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 10 MODII HDR SRRA SHRD LF

¥10.2960

详情

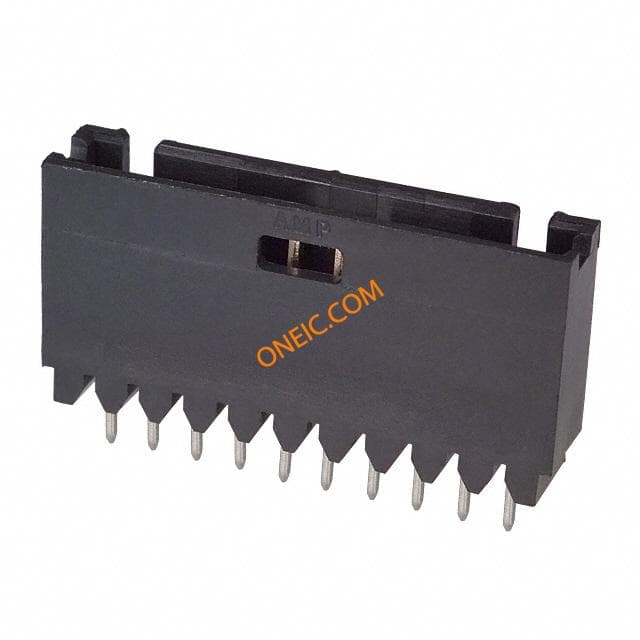

5-103414-8
