1-146282-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADR BRKWAY .100 10POS STR Headers & Wire Housings 10 MODII HDR SRST B/A .100CL Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 10Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR SRST B/A .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| 标准编号 | CSA LR7189, UL E28476 | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 保护额定电压（VPR） | 750 V | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 不带 | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 2.54 [.100] |
| 第一连接器 | No | 第二连接器 | Without |
| 触点形状 | Square | 安装类型 | Vertical |
| 连接器类型 | Breakaway | 接触镀层 | Tin-Lead Over Nickel |
| 安装样式 | 不带 | 排数 | 1 |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer (LCP) | 安装特性 | Without |
| 包装数量 | 200 | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 端接样式 | Through Hole |
| 第一连接器类型 | 分离 | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 触点数 | 10 |
| 端接表面处理 | 不带 | 位数 | 10 |
| 柱体长度（配合） | 5.84 mm | 安装孔直径 | 不带 |
| 接触长度 - 配合 | 5.84 [0.230] | 表面贴装焊盘尺寸 | Yes |
| 端子柱长度 | 2.29 [0.090] | 接触镀层厚度 | 100µin (2.54µm) |
| 第一连接器安装特征 | 否 | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 制造商全称 | AMP | 产品子类型 | Header |
| 选择性装载 | No | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 温度 | Yes |
| 工作温度 | -65 – 105 | 封装热阻 | 1.6 mm [ .063 in ] |
| 结工作温度 | 是 | ||
文档与媒体
相关型号

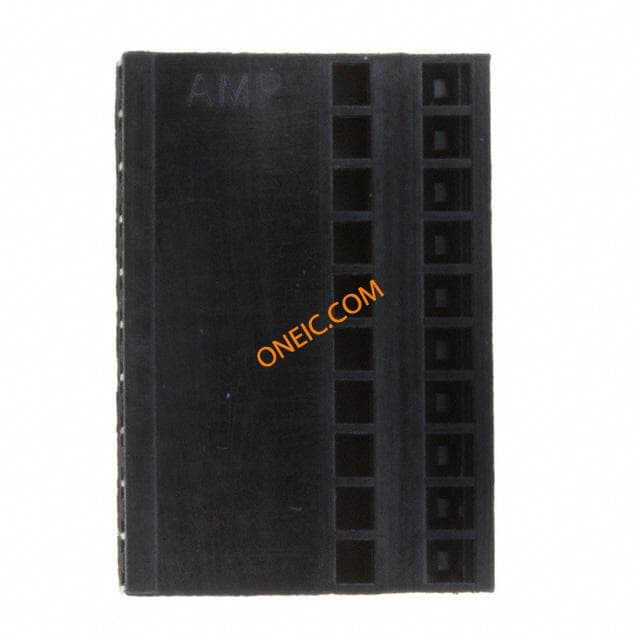

2-87175-2
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 LOCKING Headers & Wire Housings CONN HOUSING 10 POS SINGLE ROW Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 LOCKING CLIP HSG SR .100CL
103969-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 10POS .100 22-26 15AU Headers & Wire Housings 2X10 MTE RCPT SR RIBBED .100CL 2X10 MTE RCPT SR RIBBED .100CL 2X10 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103975-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .100 15AU Headers & Wire Housings 2X10 RCPT SR PLAIN .100CL 2X10 MTE RCPT SR PLAIN .100CL 2X10 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
103688-9
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .1" UNLOAD Headers & Wire Housings 10 MTE RCPT HSG SR P Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 10 MTE RCPT HSG SR PLAIN .100
103960-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 10POS .100 26-30 15AU Headers & Wire Housings 2X10 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 10Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X10 MTE RCPT SR LATCH .100CL

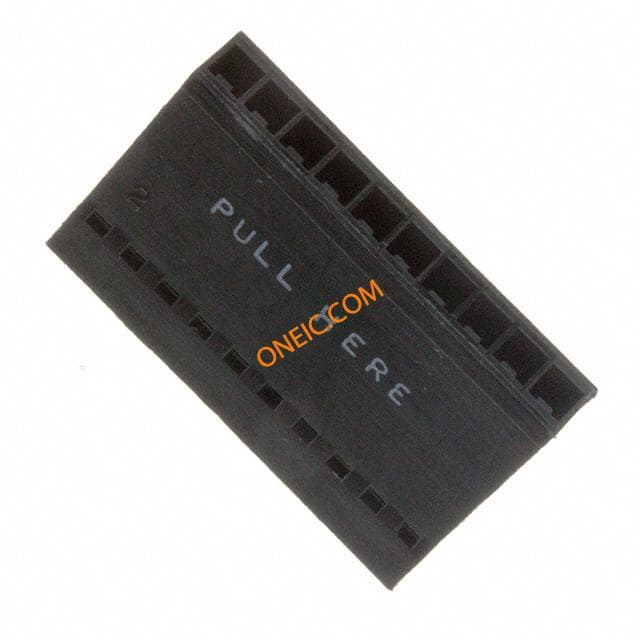

2-87175-1
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 LOCKING Headers & Wire Housings CONN HOUSING 10 POS SINGLE ROW 2-87175-1 10 LOCKING CLIP HSG SR MRKD 10 LOCKING CLIP HSG SR MRKD Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
146139-9
te connectivity / amp
Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 10POS RT ANG T/H GOLD Headers & Wire Housings 10 MODII HORZ SR CE 100CL 10 MODII HORZ SR CE 100CL 10 MODII HORZ SR CE 100CL Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
1-87499-7
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 SINGLE Housing FH 10 way Rec 2.54mm AmpModu Headers & Wire Housings NONPLRZD HSG 10 SNGL 1.005 width Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 10WAY Housing,Connector;ModIV;Single;10;250VAC;3A;750VNo TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 10 路 直 母 PCB 壳体 10 MODIV HSG SR MRKD .100CL

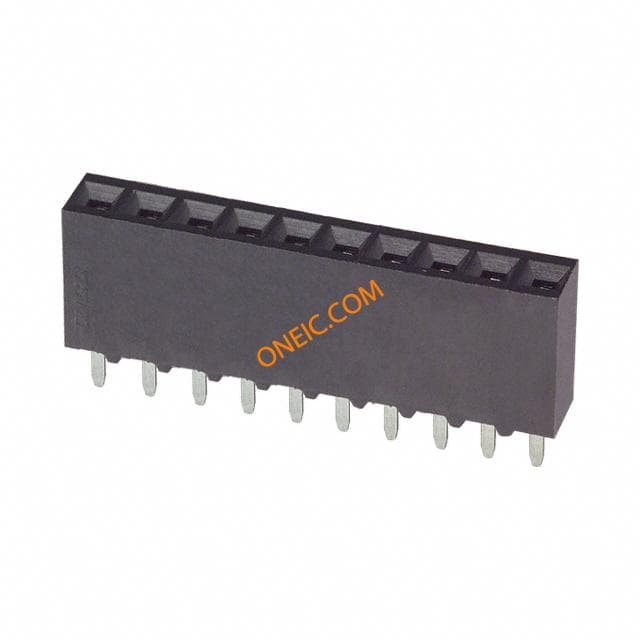

534237-8
te connectivity / amp
Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 10POS .100 VERT AU Headers & Wire Housings REC 1X10P VRT T/H 1760 Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:ReceptacleMod IINumber of Positions = 10Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 10 MODII VRT SR CE 100/115
146138-8
te connectivity / amp
Conn Socket Strip RCP 10 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 10POS VERT .100 T/H Headers & Wire Housings 10 MODIV VRT SR CE 100/115 10 MODIV VRT SR CE 100/115 10 MODIV VRT SR CE 100/115 Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
103968-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 10POS .100 POLAR TIN
5-534237-8
te connectivity / amp
Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 10POS .100 VERT GOLD Headers & Wire Housings REC 1X10P VRT T/H Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorMod II10 PositionsNumber of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 10WAY, 1ROW TE Connectivity AMPMODU Mod II 系列 10路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 10 MODII VRT SR CE 100/115

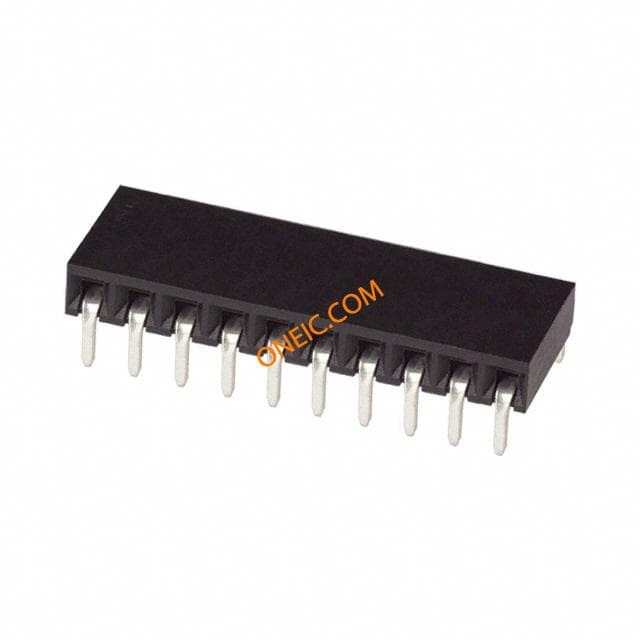

535676-9
te connectivity / amp
Conn Socket Strip SKT 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 10POS .100 RT/ANG AU Headers & Wire Housings RECEPT 10POS .100 R/A AU
103958-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 10POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 10P 2X10 MTE RCPT SR LATCH .100CL
103959-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 10POS .100 26-30 TIN
5-103976-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .100 30AU Headers & Wire Housings 2X10 RCPT SR PLAIN .100CL 2X10 MTE RCPT SR PLAIN .100CL 2X10 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103958-9
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 10POS .100 POLAR 30AU Headers & Wire Housings RECEPTACLE ASSY 10P Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 10Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, IDC, 2.54MM, 10WAY 2X10 MTE RCPT SR LATCH .100CL
104439-9
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN RCPT 10POS .100 22-26 30AU

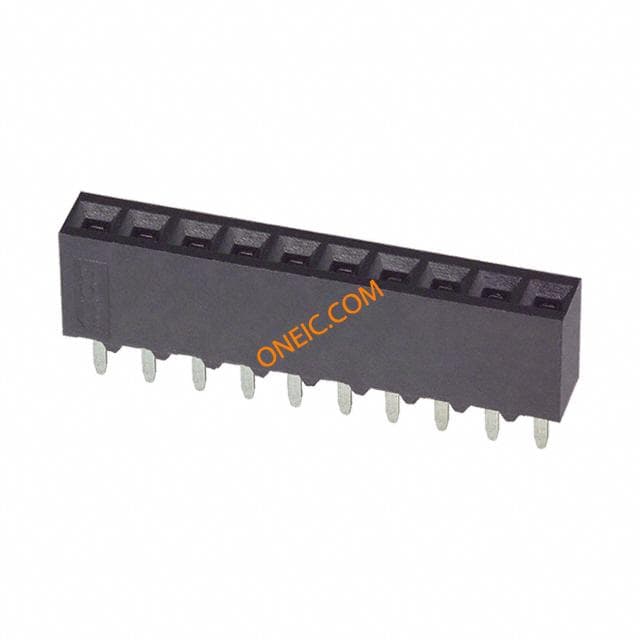

535541-8
