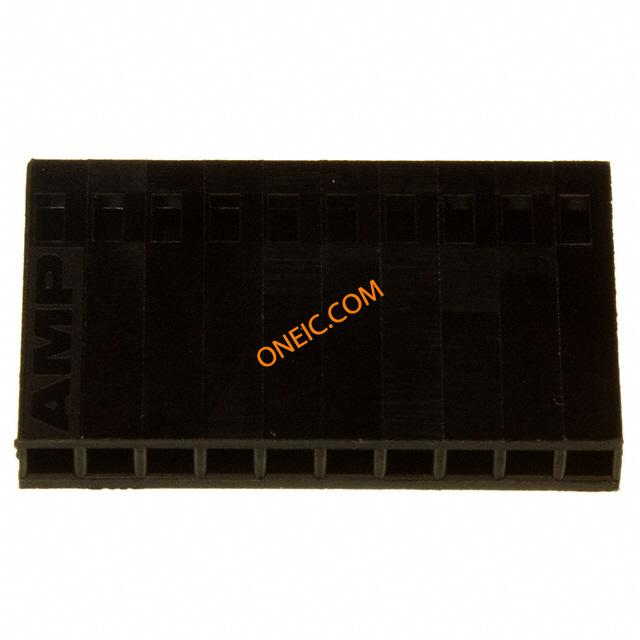

1-87499-8

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 10 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 SINGLE Headers & Wire Housings 10 MODIV HSG COMP SR Conn Housing RCP 10 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 10POS, 2.54MM 10 MODIV HSG COMP SR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

电气参数

额定电压	250 VAC	开关功能	Unlatched
最大额定电流	3 A

机械参数

颜色	Black	间距	2.54 mm
重量	0	包装方式	Bulk
排间距	2.54 mm	触头类型	Female Socket
安装类型	Straight	连接器类型	Receptacle
接触镀层	:-	安装样式	Free Hanging
排数	1	触头材料	:-
壳体材料	Thermoplastic	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	10
接触件端接	Crimp	位数	10

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	:Unstamped Housing	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

- 65 C to + 105 C
