点击放大查看
103648-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 6POS .100 UNLOADED Headers & Wire Housings RECEPT 6 POS RECEPT 6 POS UNLOAD Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE RCPT HSG SR RIB .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V | 开关功能 | Unlatched |
| 供电电压 | 250 VAC | 连接器阻抗 | 刺破式压接 (IDC), 压接 |
| 最大额定电流 | 3 A | 保护额定电压（VPR） | 600 VACrms |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 2.24 mm [ .098 in ] | 长度 | 15.18 mm [ .6 in ] |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 22-30 AWG |
| 排间距 | 2.54 mm | 触头类型 | Female Socket |
| 极化 | Ribbed | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 安装样式 | Free Hanging |
| 排数 | 1 | 封装形式 | Receptacle |
| 插入件材料 | 磷青铜 | 壳体材料 | Thermoplastic |
| 包装数量 | 1 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 兼容外壳尺寸（如TM-700等） | 公端 |
| 安装孔直径 | 带有 | 中心触点材料 | 2.54 [.100] |
| 典型触点布局 | 同轴 | ||
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65 – 105 |
文档与媒体
相关型号

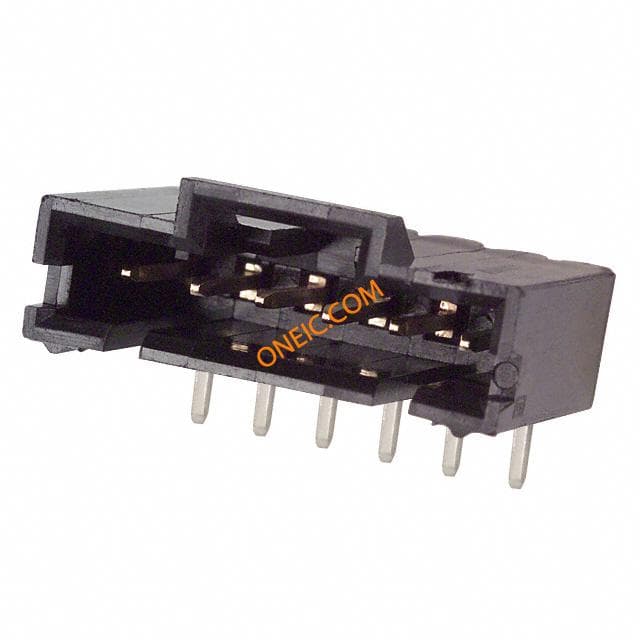

5-103635-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 6POS 15AU TE Connectivity MTE Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings LATCHING HDR SHRD 6P w/o hold down Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, MTE, 6WAY AMPMODUMTER/AHDAY,06MTEHDRSRRALTCH.100CLLF TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRRA LTCH.100CL LF
147278-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT ANG 6POS LATCH AU Headers & Wire Housings 06 MTE HDR SRRA SFMNT .100CL Conn Shrouded Header HDR 6 POS 2.54mm Solder RA SMD T/R Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE HDR SRRA SFMNT .100CL
103948-5
te connectivity / amp
Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings IDC LTCHD PIN ASSY 6 180 .100 AMPMODU Headers, Housings & Contacts CONN PLUG 6POS .100 26-30 15AU Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X6 MTE SHRD PIN SR LATCH .100
2-103672-9
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS R/A .100 TIN Headers & Wire Housings HDR 6P R/A .100 TIN 2-103672-9 Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE HDR SRRA LATCH W/HLDWN
103949-5
te connectivity / amp
Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 6POS .100 POLAR GOLD Headers & Wire Housings 2X6 MTE SHRD PIN SR 180 Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X6 MTE SHRD PIN SR LTCH .100
104363-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS VERT LATCH 15AU Headers & Wire Housings 06 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE HDR SRST LATCH .100CL
104362-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 6POS 15AU Headers & Wire Housings VERT HDR HI TEMP 6P Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE HDR SRST LATCH W/HLDWN
103638-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 6POS 15AU Headers & Wire Housings LTCH HDR W/O SWAGE 6 Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEHEADERASSY,06MTEHDRSRSTLATCH.100CL 06 MTE HDR SRST LATCH .100CL

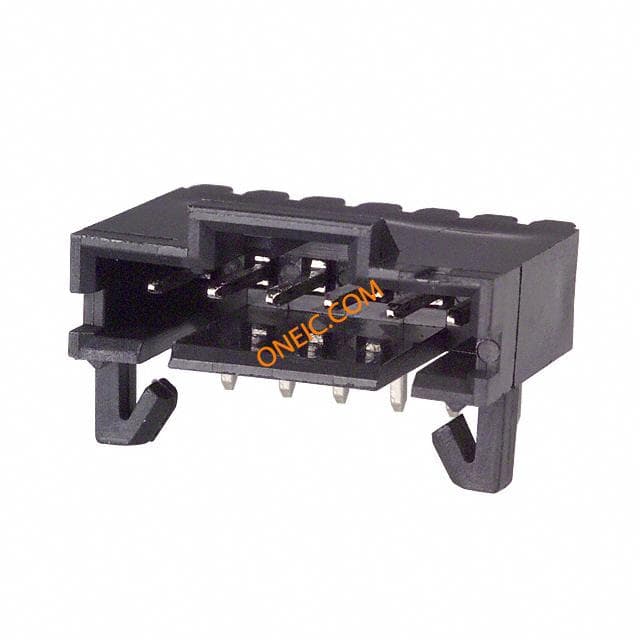

5-103672-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 6POS PCB TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRRA LATCH W/HLDWN

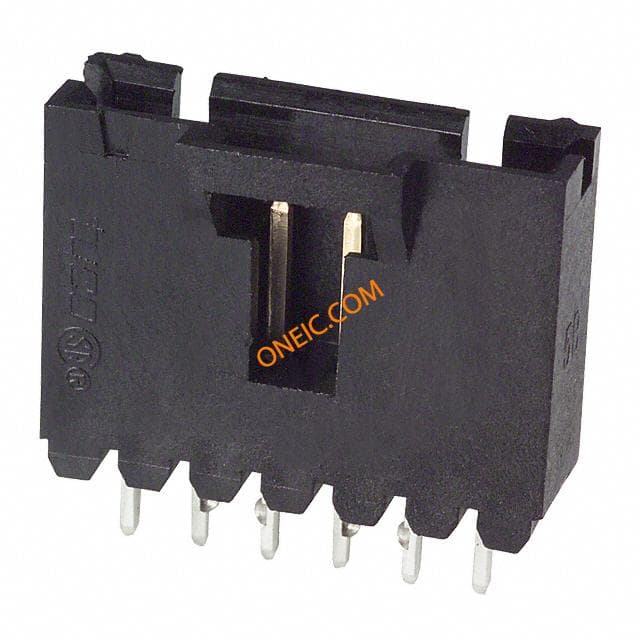

5-103908-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 6POS 30AU TE Connectivity AMPMODU, MTE Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 6 Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM AMPMODUMTEVERTASSY,06MTEHDRSRSTLATCHW/HLDWN TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRST LATCH W/HLDWN

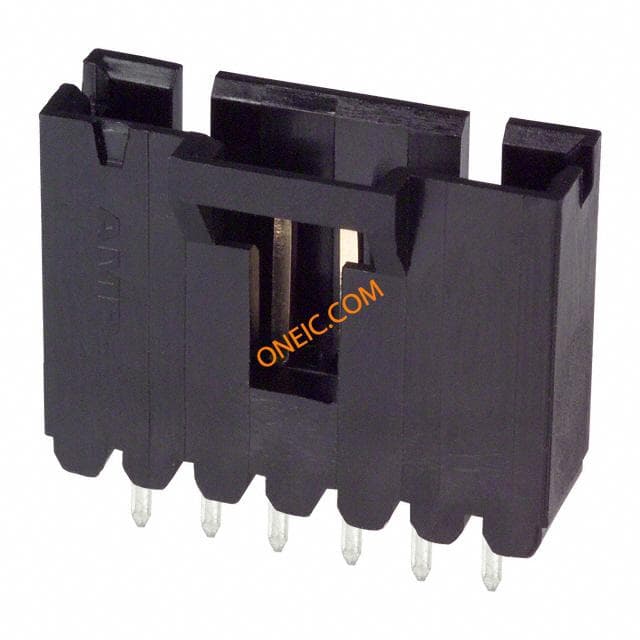

5-104363-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 6POS 15AU TE Connectivity MTE Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 06MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, MTE, 6WAY MTEHI-TEMPHDRASSY,06MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 6路 2.54mm节距 (1排) 直 PCB 针座 , 焊接端接, 3A, 通孔 06 MTE HDR SRST LATCH .100CL
5-103944-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 6POS .100 POLAR TIN Headers & Wire Housings PIN ASSEMBLY 6P .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorNot PreloadedHousing Gender = Connector - PinAccepts Contact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 6路 2.54mm节距 公 IDC 连接器 , 电缆安装 2X6 MTE SHRD PIN SR POL .100CL
5-103946-5
te connectivity / amp
Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 6POS .100 POLAR 30AU Headers & Wire Housings PIN ASSEMBLY 6P Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingHousing Type = Housing - PinHousing Accepts Contact Type = Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mmSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X6 MTE SHRD PIN SR POL .100CL

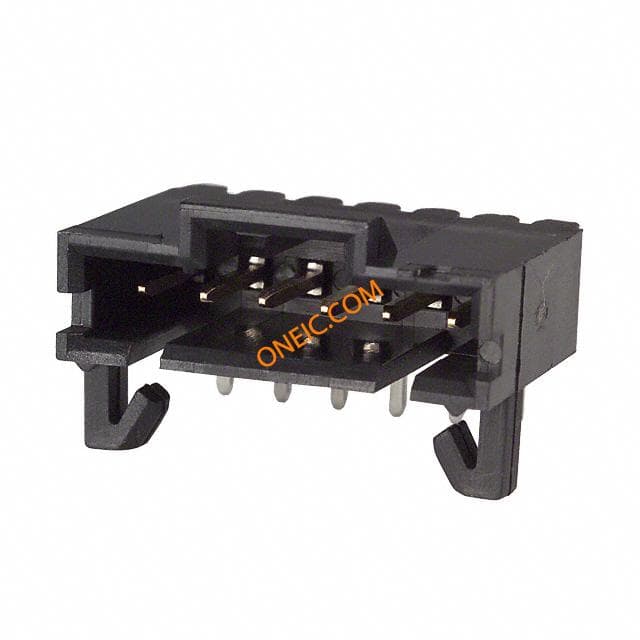

5-103904-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 6POS 30AU Headers & Wire Housings LATCHING HDR SHRD 6P with hold down Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 6 MTE HDR SRRA LATCH W/HLDWN

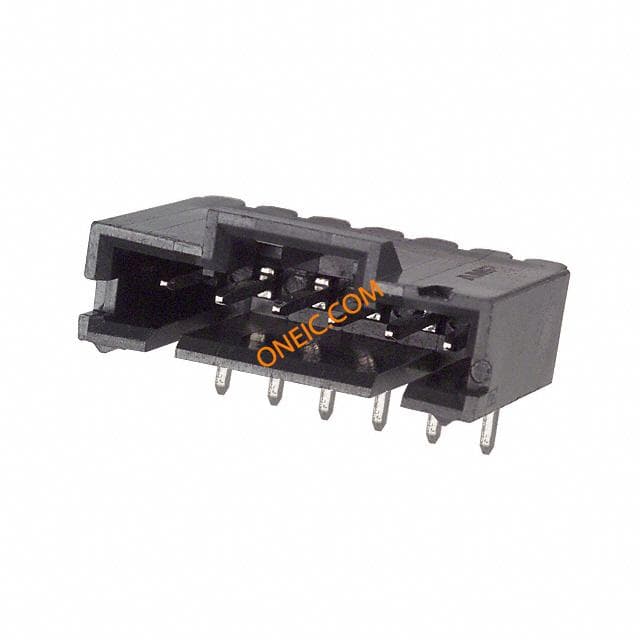

5-103634-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 6POS PCB TIN Headers & Wire Housings LATCHING HDR SHRD 6P w/o hold down Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM 06 MTE HDR SRRA LATCH.100CL LF
5-103945-5
te connectivity / amp
Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 6POS .100 POLAR 15AU Headers & Wire Housings PIN ASSEMBLY 6P Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 6路 2.54mm节距 公 IDC 连接器 , 电缆安装 2X6 MTE SHRD PIN SR LATCH .100
103952-5
TE Connectivity / AMP
Headers & Wire Housings OBSOLETE .100 AMPMODU Headers, Housings & Contacts CONN PLUG 6POS .100 POLAR GOLD

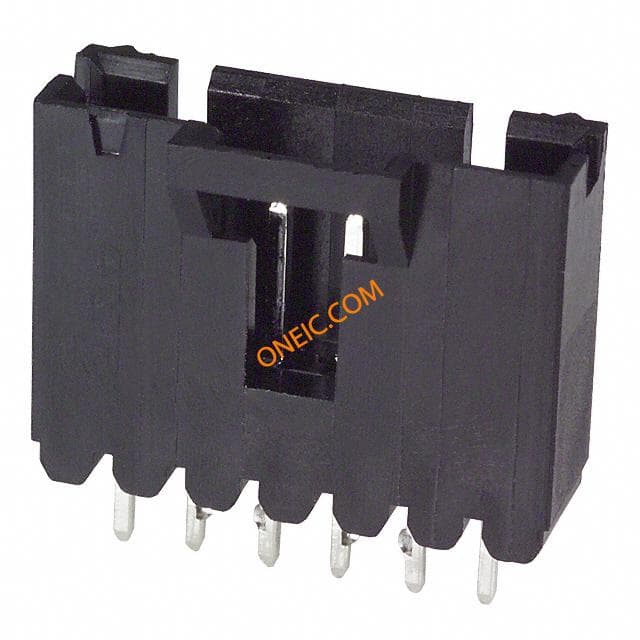

5-103669-5
