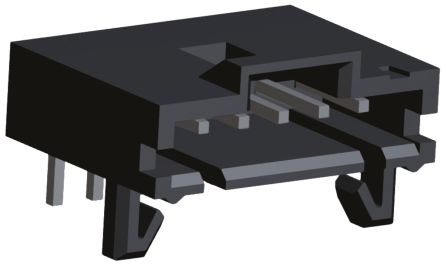

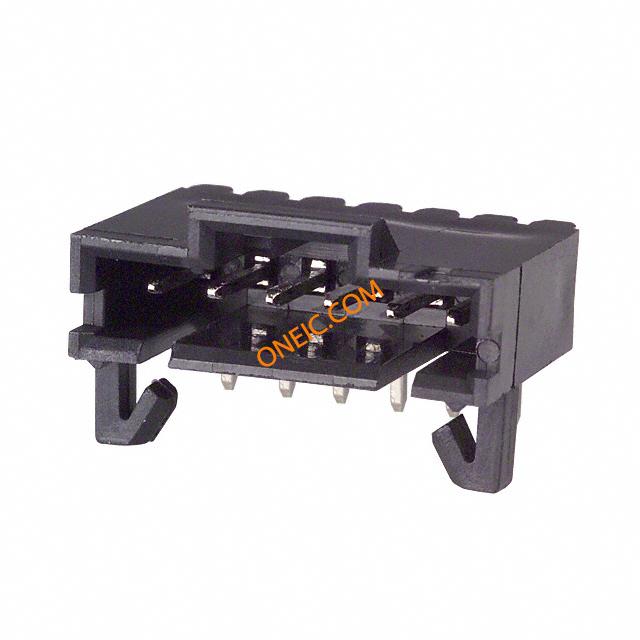

5-103672-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 6POS PCB TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRRA LATCH W/HLDWN |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认可国家 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3A |
| 绝缘电阻 | 5000 MΩ | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 13.59 mm [ .535 in ] | 长度 | 17.78 mm [ .7 in ] |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 方向 | 直角 | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Nickel |
| 触点时序 | Without | 安装样式 | 带有 |
| 排数 | 1 | 壳体镀层 | Tin |
| 插入件材料 | 黄铜 | 触头材料 | 黄铜 |
| 壳体材料 | 热塑塑料 | 安装特性 | 压具 |
| 包装数量 | 30 | 面板安装类型 | 直角 |
| 端接排数 | 焊接 | 端接样式 | 插针 |
| 触点数 | 6 | 端接表面处理 | 带有 |
| 位数 | 6 | 兼容外壳尺寸（如TM-700等） | 母端护套组件 |
| 触头长度-柱 | 3.3 mm [ .13 in ] | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡 | 接触长度 - 配合 | 0.230" (5.84mm) |
| 表面贴装焊盘尺寸 | Without | 端子柱长度 | 5.84 mm [ .23 in ] |
| 接触镀层厚度 | 100µin (2.54µm) | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU MTE |
| 覆盖范围 | 覆盖 | 产品特性 | Board Lock |
| 产品子类型 | 连接器 | 加载位置数 | All |
环境参数
| 温度额定值 | High | 工作温度 | -65 – 105 |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
