5-103959-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 4X6 MTE RCPT SR LATCH .100CL Headers & Wire Housings 4X6 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:ConnectorWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 756 | 工厂包装数量 | 36 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 保护额定电压（VPR） | 600 VAC | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 5.08 mm [ .2 in ] | 长度 | 60.71 mm [ 2.39 in ] |
| 锁定类型 | Latch | 包装方式 | Bulk |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 黑色 |
| 导线线规 | 26-30 AWG | 排间距 | 2.54 mm |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 第二连接器 | With | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin Over Nickel |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 操作力 | Standard | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 36 |
| 面板安装类型 | 不带 | 电缆端接方式 | IDC |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 6 | 绝缘直径 | 1.37 mm [ .054 in ] |
| 位数 | 6 | 兼容外壳尺寸（如TM-700等） | 与接头配合 |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 接触镀层厚度 | 100µin (2.54µm) | 静电放电屏蔽 | 带有 |
产品信息
| 备注 | 带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。 | 类型 | IDC Connector |
| 连接器性别 | RCP | 系列 | AMPMODU MTE |
| 产品特性 | Closed End | 产品子类型 | Headers |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
文档与媒体
相关型号
5-103635-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 6POS 15AU TE Connectivity MTE Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings LATCHING HDR SHRD 6P w/o hold down Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, MTE, 6WAY AMPMODUMTER/AHDAY,06MTEHDRSRRALTCH.100CLLF TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRRA LTCH.100CL LF
5-103950-5
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Strip .100 AMPMODU Headers, Housings & Contacts 4X6 MTE PIN SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103948-5
te connectivity / amp

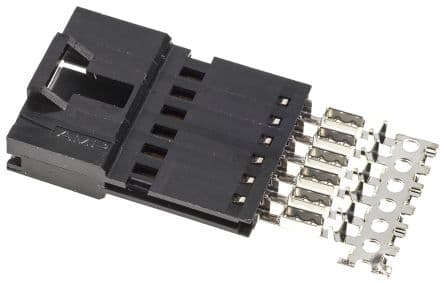

Conn IDC Connector PIN 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 2X6 MTE SHRD PIN SR LATCH .100 Headers & Wire Housings 1X12C P/L 30-26AWG .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 6路 2.54mm节距 公 IDC 连接器 , 电缆安装
5-103672-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 6POS PCB TIN Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRRA LATCH W/HLDWN
5-104809-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS VERT LATCH GOLD Headers & Wire Housings 06 MTE HDR SRST LATCH W/HLDWN Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRST LATCH W/HLDWN
5-103908-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 6POS 30AU TE Connectivity AMPMODU, MTE Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 6 Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM AMPMODUMTEVERTASSY,06MTEHDRSRSTLATCHW/HLDWN TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRST LATCH W/HLDWN
5-104363-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 6POS 15AU TE Connectivity MTE Series 2.54mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 06MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, MTE, 6WAY MTEHI-TEMPHDRASSY,06MTEHDRSRSTLATCH.100CL TE Connectivity AMPMODU MTE 系列 6路 2.54mm节距 (1排) 直 PCB 针座 , 焊接端接, 3A, 通孔 06 MTE HDR SRST LATCH .100CL
5-104450-5
te connectivity / amp

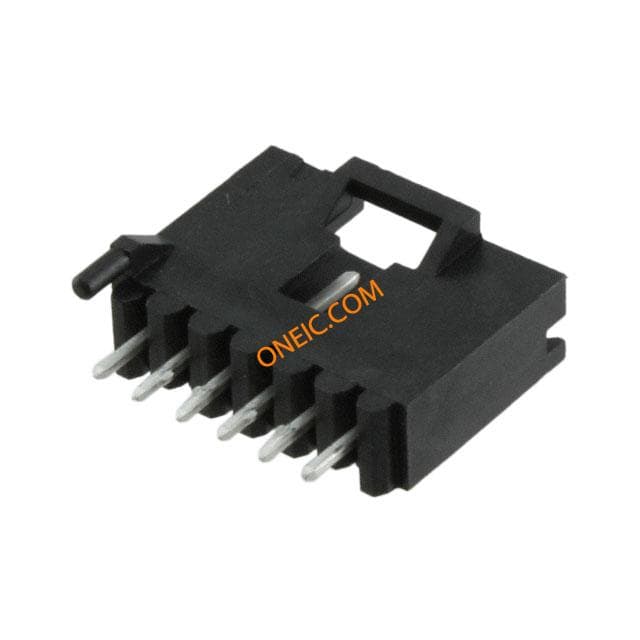

Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS VERT .100 TIN Headers & Wire Housings 06 MTE HDR SRST LATCH W/HLDWN .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 6POS, 2.54MM TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRST LATCH W/HLDWN
