点击放大查看

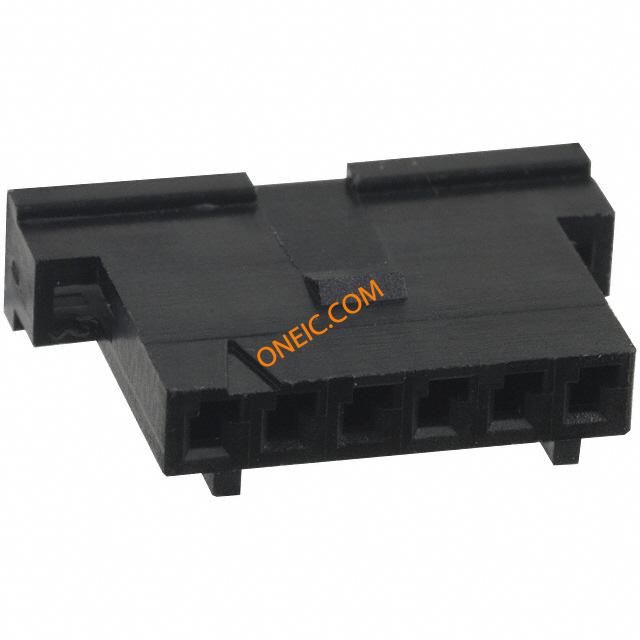

88859-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 006 HOUSING FFC RCPT SR 100CL FFC & FPC Connectors HOUSING RECPT FCC 6P Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 6Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 6POS, 1ROW |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | Yes | ||
电气参数
| 额定电压 | 300V | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 第二连接器 | With | 安装类型 | Straight |
| 连接器类型 | Standard | 接触镀层 | :- |
| 排数 | 1 | 连接器用途 | Receptacle |
| 锁定特性 | Detent | 总宽度 | :0.620" |
| 触头材料 | :- | 壳体材料 | Thermoplastic |
| 安装特性 | Without | 面板安装类型 | Without |
| FFC/FCB厚度 | 0.05-0.13mm | 配接方向 | With |
| 触点数 | 6 | 接触件端接 | :- |
| 位数 | 6 | 中心触点材料 | 2.54 [0.100] |
产品信息
| 备注 | Use Extraction Tool No. 91092-1 for round wire contacts. | 类型 | Housing |
| 连接器性别 | RCP | 系列 | :- |
| 产品特性 | Detent Lock | 产品子类型 | Housing |
| 连接类型 | FFC Cable | ||
环境参数
| 工作温度 | -65°C ~ 105°C | ||
文档与媒体
相关型号
5-103635-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 6POS 15AU TE Connectivity MTE Series 2.54mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings LATCHING HDR SHRD 6P w/o hold down Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, MTE, 6WAY AMPMODUMTER/AHDAY,06MTEHDRSRRALTCH.100CLLF TE Connectivity AMPMODU MTE 系列 2.54mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 06 MTE HDR SRRA LTCH.100CL LF
2-103672-9
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS R/A .100 TIN Headers & Wire Housings HDR 6P R/A .100 TIN 2-103672-9 Conn Shrouded Header HDR 6 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE HDR SRRA LATCH W/HLDWN
147324-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS R/A SMD W/POLAR Headers & Wire Housings 06 MTE HDR SRRA SMT.100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HeaderNumber of Positions = 6Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE HDR SRRA SMT.100CL
104363-5
te connectivity / amp
Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS VERT LATCH 15AU Headers & Wire Housings 06 MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 6 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE HDR SRST LATCH .100CL

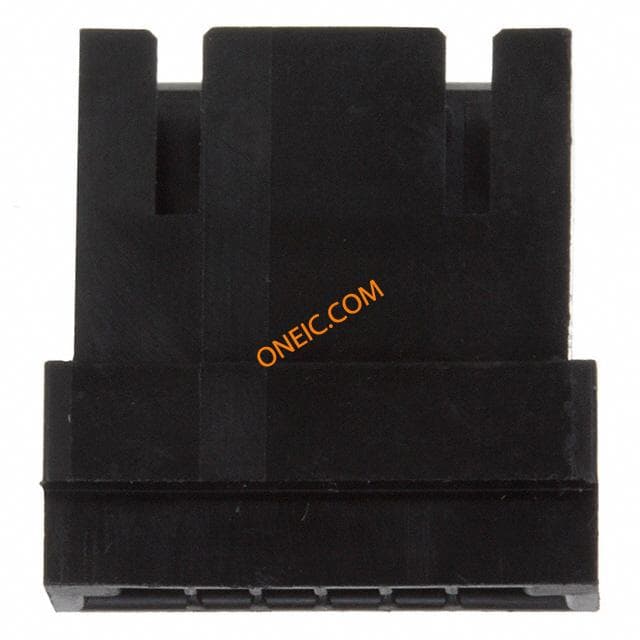

485893-4
