1375583-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 6 POS 2.54mm Solder ST SMD T/R Headers & Wire Housings 06 MTE VERTICAL SMT .100 AMPMODU Headers, Housings & Contacts CONN HEADER 6POS IDC SMD 30GOLD SEE374-15035-1375583-5 06 MTE VERTICAL SMT HDR 30 AU |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A110964CT |
| 标准包装规格 | 100 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 100 |
合规参数
| RoHS | No | 标准 | ULListed,CSACertified |
| 认证机构 | CSA,UL | 材料阻燃等级 | UL94V-0 |
电气参数
| 连接器阻抗 | 压接 | 最大额定电流 | 3A |
| 绝缘电阻 | 5000Megohms | 直流开关电压 | 600V |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Reel | 壳体颜色 | 黑色 |
| 导线线规 | 30-22 | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚长度（针脚） | 0.024" |
| 安装类型 | Surface Mount | 行程角度 | Straight |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 安装样式 | 带有 | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 0.7" | 面板安装类型 | 垂直 |
| 主要材料 | InterconnectSystem | 插针孔直径 | 0.1" |
| 端接样式 | 插针 | 触点数 | 6 |
| 绝缘直径 | 0.054" | 位数 | 6 |
| 触点镀层 | Gold(30)overNickel(50) | 安装孔直径 | 0.055×0.089" |
| 接触长度 - 配合 | 0.230" (5.84mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MTE | 产品特性 | Board Lock |
| 制造商全称 | AMPMODU/MTESeries | 架构类型 | 否 |
| 产品子类型 | Headers - Shrouded | 矩阵（列×行） | 0.100in. |
| 加载位置数 | All | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | -65to+105°C |
相关型号
88859-1
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 006 HOUSING FFC RCPT SR 100CL FFC & FPC Connectors HOUSING RECPT FCC 6P Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 6Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector FFC/FPC CONNECTOR, PLUG, 6POS, 1ROW
103960-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 26-30 15GOLD Headers & Wire Housings 4X6 MTE RCPT SR LATC 756 Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR LATCH .100CL
103957-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 POLAR 15AU Headers & Wire Housings RECEPTACLE ASSY 6P Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTERECPASSY,4X6MTERCPTSRLATCH.100CL 4X6 MTE RCPT SR LATCH .100CL

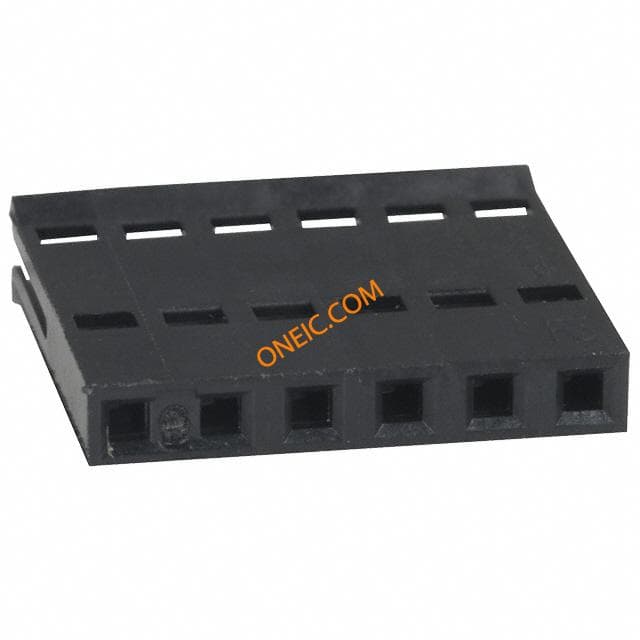

487378-5
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 6POS .100 SLIMLINE FFC & FPC Connectors REC 1X34P 100X100 HSG Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 6Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 006 HOUSING FFC RCPT 100CL SR
103956-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 6P Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR LATCH .100CL
103959-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 6POS .100 26-30 TIN Headers & Wire Housings 4X6 MTE RCPT SR LATCH .100CL 4X6 MTE RCPT SR LATCH .100CL
103961-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 6POS .100 26-30 30GOLD Headers & Wire Housings 4X6 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 4X6 MTE RCPT SR LATCH .100CL
5-103957-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 POLAR 15AU Housing 6 way receptacle 2.54mm AmpModu Headers & Wire Housings RECEPTACLE ASSY 6P Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM MTERECPASSY,4X6MTERCPTSRLATCH.100CL TE Connectivity AMPMODU MTE 系列 6路 2.54mm节距 母 PCB 壳体 , 电缆安装 4X6 MTE RCPT SR LATCH .100CL
5-103958-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 POLAR 30AU Shrouded recp. ass. 2.54mm straight 6way Headers & Wire Housings RECEPTACLE ASSY 6P Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 6Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM Shroudedrecp.ass.2.54mmstraight6way TE Connectivity AMPMODU MTE 系列 6路 2.54mm节距 母 IDC 连接器 , 电缆安装 4X6 MTE RCPT SR LATCH .100CL
104257-5
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .1" POL UNLOAD 6 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 6P Conn Housing RCP 6 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 6WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Plug; wire-board; female; PIN:6; w/o terminals; 2.54mm; for cable TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 6 路 直 母 PCB 壳体 06 MTE RCPT HSG SR LATCH .100
103648-5
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 6POS .100 UNLOADED Headers & Wire Housings RECEPT 6 POS RECEPT 6 POS UNLOAD Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 6Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 06 MTE RCPT HSG SR RIB .100CL
487526-5
te connectivity / amp
Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount FFC & FPC Connectors 006 HOUSING FFC RCPT Flexible Film Connectors CONN RCPT 6POS.100 SLIM W/LATCH Conn Housing RCP 6 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 6Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,6POS,2.54MM,SLIMLINE,SINGLER 006 HOUSING FFC RCPT 100CL SR
103969-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 4X6 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 22-26 15AU 4X6 MTE RCPT SR RIBBED .100CL 4X6 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103956-5
te connectivity / amp
Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 6POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 6P Conn IDC Connector RCP 6 POS 2.54mm IDT ST Cable Mount Strip Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 6POS, 2.54MM MTERECPASSY,4X6MTERCPTSRLATCH.100CL TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 6 路 直 母 电缆安装 PCB 连接器外壳 4X6 MTE RCPT SR LATCH .100CL

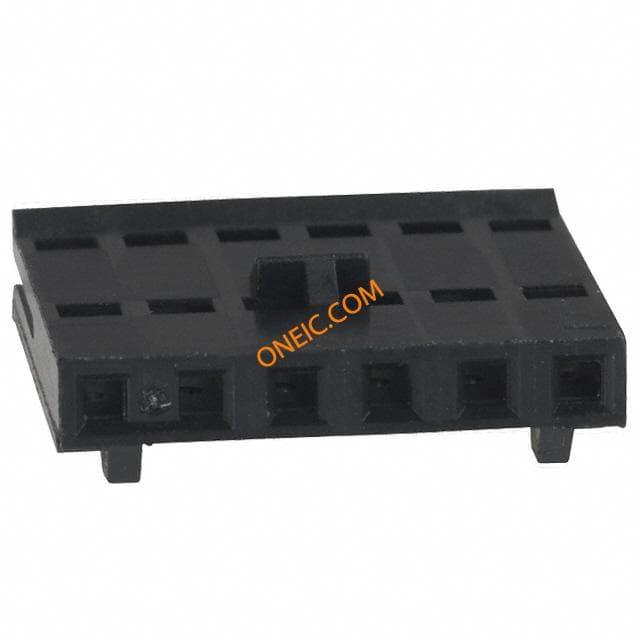

487769-4
