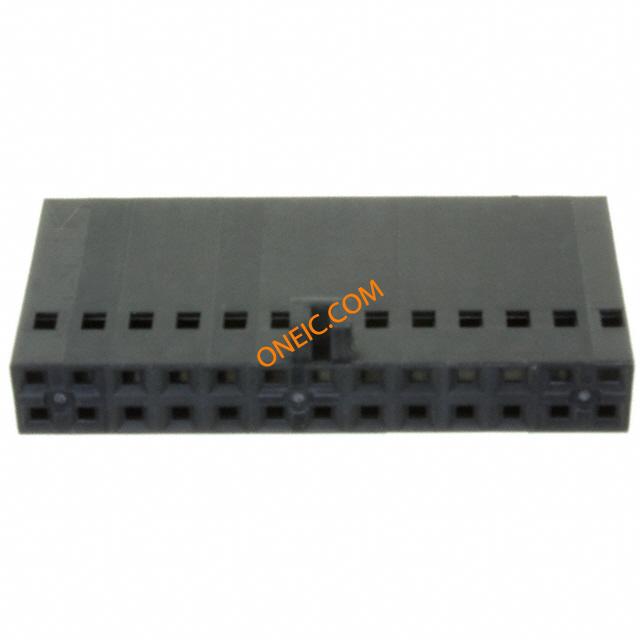

104483-4

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 POL DUAL Headers & Wire Housings CONN HOUSING 26 POS POLARIZED Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 26Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 26 SHORT PT RCPT HSG DR .100CL
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	认可国家	CSA LR7189, UL E28476
材料阻燃等级	Yes

电气参数

额定电压	300 VAC	供电电压	300 VAC
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
长度	32.96	包装方式	Bulk
壳体颜色	黑色	导线线规	22-30 AWG
排间距	0.100" (2.54mm)	端接方式	12 mΩ
触头类型	Female Socket	第二连接器	Without
安装类型	Straight	连接器类型	Receptacle
安装样式	Wire	排数	2
高度（英寸）	5.02	壳体材料	Thermoplastic
包装数量	1	面板安装类型	不带
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	26	接触件端接	Crimp
位数	26	兼容外壳尺寸（如TM-700等）	接触件
安装孔直径	带有	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品特性	Polarizing Key	产品子类型	Receptacles / Sockets - Housings

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

104483-4?RQPN=104483-4

相关型号

1-104351-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS DUAL 15AU Headers & Wire Housings 26 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 26Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST B/A W/HD

¥4.5560

详情

暂无图片

1-104350-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 26POS DUAL 30AU

详情

1-104355-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 26POS R/A DUAL

详情

1-146130-2

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS DUAL SMD Headers & Wire Housings 26 PIN SMD HEADER 720 Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 26Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SFMNT B/A

¥11.6960

详情

1-104353-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS R/A DUAL Headers & Wire Housings 26 MODII HDR DRRA B/A W/HLDWN Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRRA B/A W/HLDWN

¥20.1960

详情

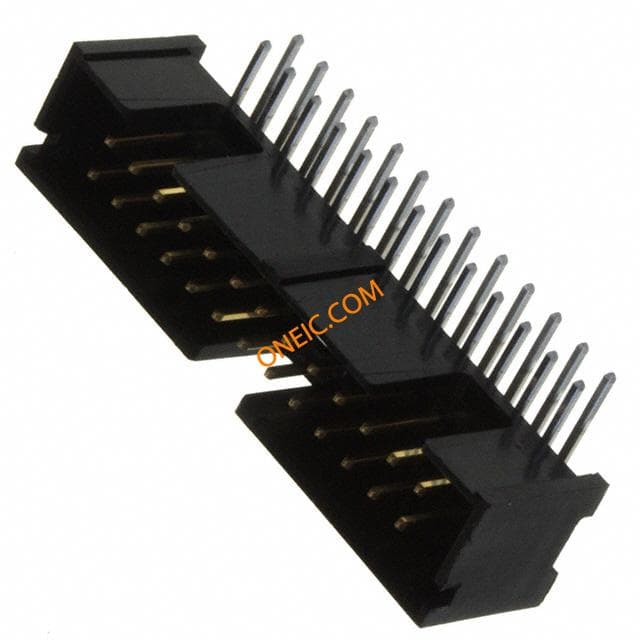

5103310-6

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 26POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 26 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X013P R/A LOW PROFILE Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile26 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 26POS, 2.54MM AMPMODUAMP-LATCHPinHeader,.100CL,26Pos.,LowProfile,RightAngle TE Connectivity AMP-LATCH 系列 2.54mm节距 26路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 26P RA BLACK

¥9.0600

详情

103310-6

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 26POS GOLD Headers & Wire Housings 26P HEADER R/A Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 262.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 026 LOPRO HDR RA 15DP

¥5.9405

详情

暂无图片

1-104352-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 26POS DUAL TIN

详情

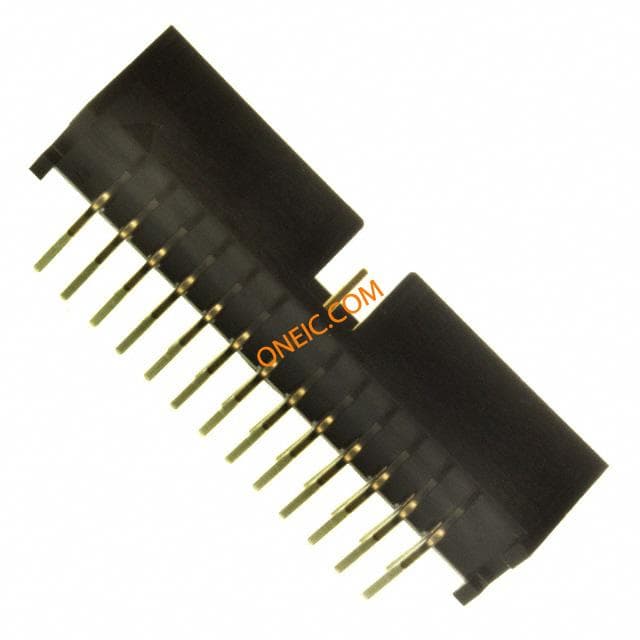

5103311-6
