点击放大查看

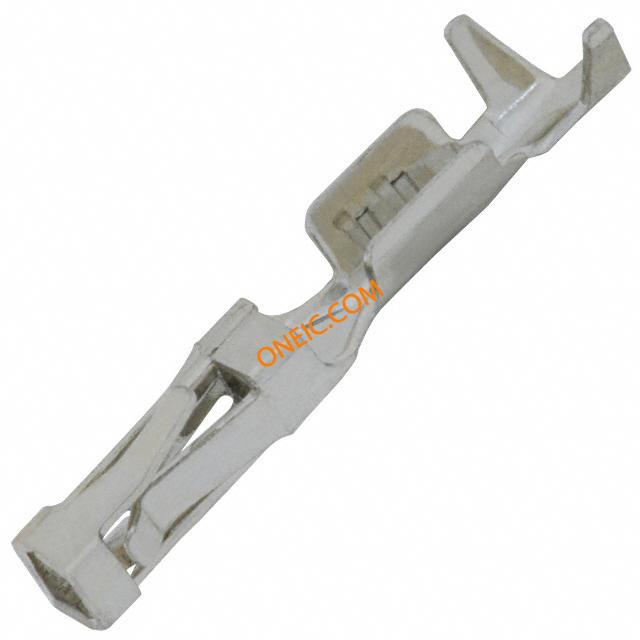

104480-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN SOCKET 22-26AWG TIN CRIMP Headers & Wire Housings SOCKET 26-22 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Receptacle ContactWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = .64 - 1.52 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, RECEPTACLE, 26-22AWG, CRIMP AMPMODUSHORT-PTCONT,SHORTPOINTRECPCONTLP SHORT POINT RECP CONT LP |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85369010 |
电气参数
| 额定电压 | 300 VAC | 最大额定电流 | 3 A |
机械参数
| 重量 | 0.073 | 包装方式 | Bulk |
| 导线线规 | 22-26 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Socket |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Bright Tin-Lead Over Nickel |
| 触头材料 | Copper Alloy | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 接触镀层厚度 | 100µin (2.54µm) | 线规或范围 - AWG | :26AWG |
产品信息
| 连接器性别 | SKT | 系列 | AMPMODU MOD IV |
| 产品子类型 | Contacts | 适用产品/相关产品 | :AMPMODU Short Point Connectors |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
