103653-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 4POS .1" POL UNLOAD 4 way MTE Pin Housing Headers & Wire Housings PIN ASSEMBLY 4P Conn Housing PL 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = PinNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, PIN, 4WAY Housing;Thermoplastic;Pin;Single;0.1in.;UL94V-0;Black;4 TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 4 路 直 母 电缆安装 PCB 壳体 04 MTE SHRD PIN HSG SR LATCH |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU MTE Series | 开关功能 | Detent Latching |
| 最大额定电流 | 3 A | ||
机械参数
| 颜色 | Black | 深度 | 24.13mm |
| 间距 | 2.54 mm | 宽度 | 6.6mm |
| 高度 | 6.6 mm | 长度 | 12.57mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 外壳样式 | Pin | 端接方式 | :Crimp |
| 触头类型 | Male Pin | 引脚间距 | :2.54mm |
| 极化 | Latched | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 接触镀层 | :- | 排数 | 1 |
| 封装形式 | Pin | 锁定特性 | Detent Latching |
| 触头材料 | :- | 壳体材料 | Thermoplastic |
| 总长度 | 12.57 mm | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.1" | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
| 中心触点材料 | 2.54 [.100] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | MTE |
| 预加载 | No | CAD图纸 | 3D CAD Model |
| 编码、键控 | No | 制造商全称 | AMPMODU/MTESeries |
| 产品子类型 | Housing | 矩阵（列×行） | 0.1in. |
| 适用产品/相关产品 | Centerline Single-Row Connector | ||
环境参数
| 工作温度 | -65C to 105C | ||
相关型号
104257-3
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 4POS .1" POL UNLOAD 4 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 4P Conn Housing RCP 4 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, 4WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Connector: wire-board; AMPMODU MTE; plug; female; w/o terminals TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 4 路 直 母 PCB 壳体 04 MTE RCPT HSG SR LATCH .100
5-103971-3
te connectivity / amp
5X4 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 5X4 MTE RCPT SR RIBBED .100CL
104505-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP Headers & Wire Housings MTE PIN 22-26AWG 104505-6 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 22-26 AWG PLTD
104505-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPINLP AMPMODU 50 Tin Over Nickel 26-22 AWG Crimp Pin IDC Contact MTE PIN LP
5-103961-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 4POS .100 26-30 GOLD Headers & Wire Housings HSG&REC 1X04C P/L 30-26AWG 5-103961-3 Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 5X4 MTE RCPT SR LATHC .100CL
104505-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 15GOLD CRIMP Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPINLP MTE PIN LP
5-104506-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 28-32AWG 15GOLD CRIMP Headers & Wire Housings PIN 32-28 AWG 5-104506-5 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU Contact;Pin;MTE(IDC);PhosphorBronze;32-28AWG;300VAC;3A(Contact) MTE PIN LP
104506-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 32-28 AWG GOLD Headers & Wire Housings PIN 32-28 AWG GOLD Contacts-AMPMODU Machine Applied Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE PIN 28-32 AWG PLTD
5-103959-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 5X4 MTE RCPT SR LATCH .100CL Headers & Wire Housings 5X4 MTE RCPT SR LATCH .100CL Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103973-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 5X4 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 5X4 MTE RCPT SR RIBBED .100CL 5X4 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-104505-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG 30GOLD CRIMP MTE Contact,pin,0.12-0.40mm² Headers & Wire Housings PIN 26-22 PHBZ/AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTEPINCONTSTRIP,MTEPIN22-26AWGPLTD TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金镀镍触点 MTE PIN 22-26 AWG PLTD
5-104505-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact male crimp 26-22AWG AmpModu Headers & Wire Housings PIN 26-22 PHBZ/SN Conn Contact PIN 1 POS Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, SOCKET, 26-22AWG, CRIMP Contactmalecrimp26-22AWGAmpModu TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀锡镀镍触点 MTE PIN 22-26 AWG PLTD

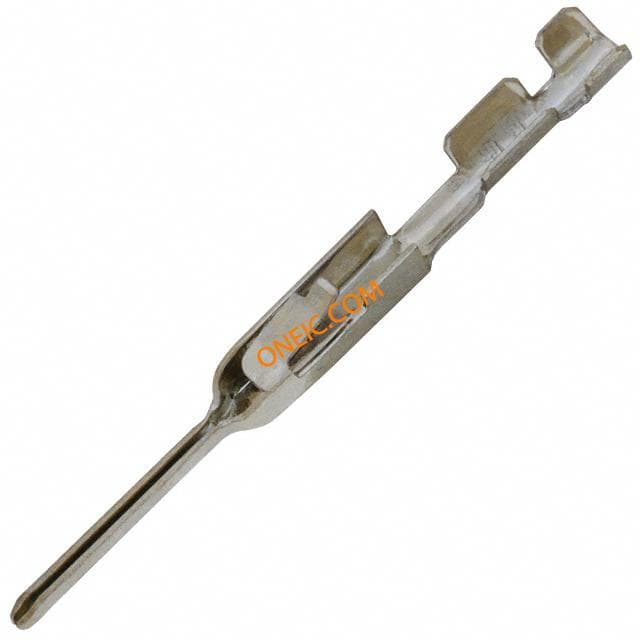

5-104505-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Contact male crimp 26-22AWG AmpModu Headers & Wire Housings PIN 26-22 AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.12-0.40² [26-22] mm [AWG]Wire Insulation Diameter = .91 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU CONTACT, PIN, 26-22AWG, CRIMP AMPMODUPinContact,MTE(IDC)Series,26-22AWG TE Connectivity AMPMODU MTE 系列 公 压接接线端子, 压接, 镀金镀镍触点 MTE PIN LP
5-103969-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 5X4 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 5X4 MTE RCPT SR RIBBED .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-103972-3
te connectivity / amp
Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 5X4 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 5X4 MTE RCPT SR RIBBED .100CL 5X4 MTE RCPT SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
5-104506-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Terminals MTE PIN 28-32 AWG Contacts-AMPMODU Machine Applied CONN PIN 28-32AWG GOLD CRIMP Contacts-AMPMODU Machine Applied Product Highlights:PinContact Type = MTE (IDC)Wire Range = 0.03-0.09² [32-28] mm [AWG]Wire Insulation Diameter = .64 - 1.37 mmStandard Applied PressureSearch Keywords:.031, .050, .100, .125, .156 C/L Interconnection System, wire to board, NIC, Network Interface Cards, PC Cards, AMPMODU MTE (IDC) AMPMODU 32 to 28 AWG Pin Wire Crimp Snap-In MTE PIN 28-32 AWG PLTD
103648-3
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 4POS .100 UNLOADED Headers & Wire Housings HSG&REC 1X04C G/R 26-22AWG Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 4Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE, 4POS, 2.54MM 04 MTE RCPT HSG SR RIB .100CL
5-103970-3
te connectivity / amp
Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts 5X4 MTE RCPT SR RIBBED .100CL Headers & Wire Housings 5X4 MTE RCPT SR RIBBED .100CL Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Conn IDC Connector RCP 4 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 4Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
104505-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Contacts-AMPMODU Machine Applied CONN PIN 22-26AWG TIN CRIMP Headers & Wire Housings MTE PIN 22-26 AWG MTE PIN 22-26 AWG PLTD

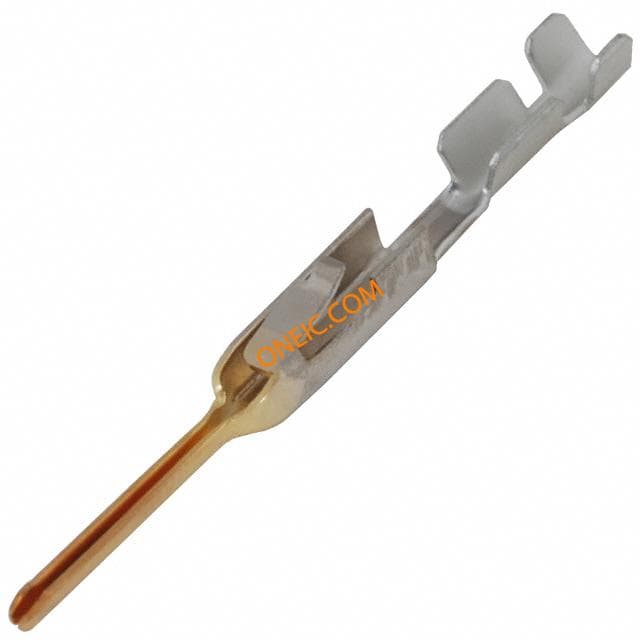

5-104505-5
