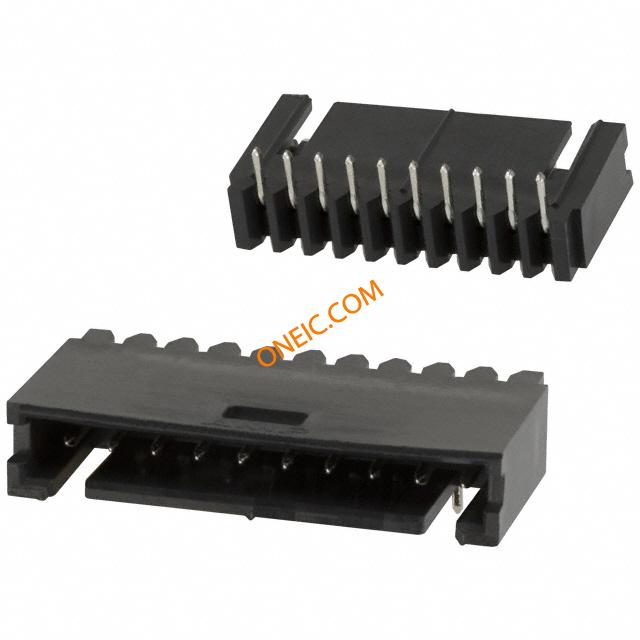

102523-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 10POS PCB TIN Headers & Wire Housings SHROUDED RA SNGL 10 with standoffs Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 10 MODII HDR SRRA SHRD .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A26674 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 18 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 最大额定电流 | 3 A | 绝缘电阻 | 5000 MOhms |
| 保护额定电压（VPR） | 750 Vrms | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 底座类型 | 带有 | 锁定类型 | 不带 |
| 包装方式 | Tube | 壳体颜色 | 黑色 |
| 引脚样式 | 正方形 | 稳定器 | 不带 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 第一连接器 | 否 |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin-Lead Over Nickel | 安装样式 | 标准 |
| 排数 | 1 | 外壳材料（壳体） | 4- 面 |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 包装数量 | 18 |
| 面板安装类型 | 通孔 | 端接样式 | Through Hole |
| 第一连接器类型 | 带罩 | 第一触头极性 | Pin (Male) |
| 外径 | .64 mm [ .025 in ] | 触点数 | 10 |
| 端接表面处理 | 带有 | 位数 | 10 |
| 柱体长度（配合） | 6.1 mm | 安装孔直径 | 带有 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 2.79 mm |
| 接触镀层厚度 | 100µin (2.54µm) | 静电放电屏蔽 | 不带 |
| 外壳尺寸，连接器布局 | 1.778 mm [ .07 in ] | 第一连接器安装特征 | 否 |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMPMODU MOD II | 钥匙类型 | 否 |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 密封等级 | 不带 | 防护等级 | 带罩 |
| 工作温度 | - 55 C to + 105 C | 封装热阻 | 1.397 mm [ .055 in ] |
| 结工作温度 | 否 | ||
文档与媒体
相关型号
102241-8
te connectivity / amp
