103976-9

点击放大查看

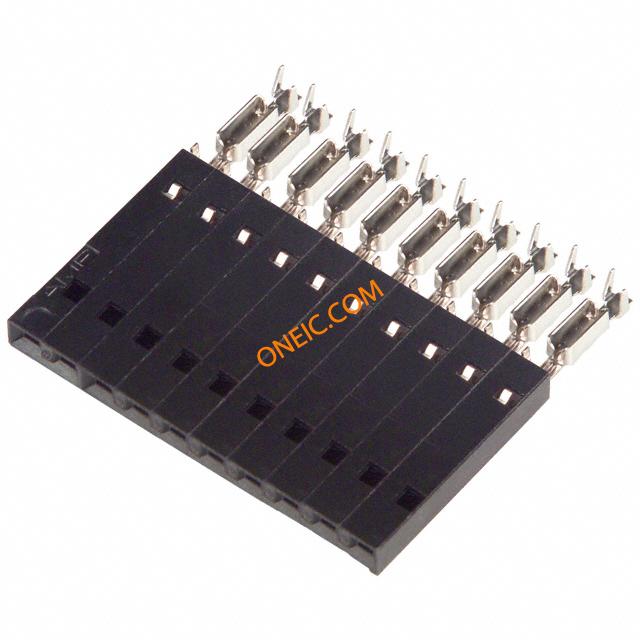

103976-9

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 10 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECEPTACLE 10POS .100 30AU Headers & Wire Housings 2X10 RCPT SR PLAIN .100CL .100 AMPMODU Headers, Housings & Contacts Product Highlights:ConnectorHousingConnector Style = ReceptacleContact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X10 MTE RCPT SR PLAIN .100CL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU其他名称A28379
标准包装规格22产品类别Headers & Wire Housings
标准包装数量154工厂包装数量22

合规参数

RoHSContains lead / RoHS non-compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94V-0

电气参数

供电电压267 V接触电阻15 mΩ
输入电阻5000连接器阻抗刺破式压接 (IDC), 压接
最大额定电流3 A保护额定电压（VPR）600 VAC

机械参数

颜色Black间距2.54 mm
高度2.49 mm [ .098 in ]长度50.8 mm [ 2 in ]
锁定类型不带包装方式Tube
导线类型Ribbon Cable壳体颜色黑色
导线线规22-26 AWG排间距2.54 mm
端接方式IDT触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Gold Over Nickel安装样式Wire
排数1压力（PSI）标准
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Thermoplastic包装数量22
面板安装类型不带电缆端接方式IDC
端接样式Crimp第一触头极性Socket (Female)
触点数10绝缘直径1.37 mm [ .054 in ]
位数10兼容外壳尺寸（如TM-700等）与接头配合
安装孔直径不带典型触点布局同轴
接触镀层厚度30µin (0.76µm)静电放电屏蔽带有
接触件镀层 - 插柱（配合端）亮光

产品信息

备注带状电缆带缺口把手 22-28 AWG, 气动终结器的最大绝缘直径为 1.14 [0.045]。类型IDC Connector
连接器性别RCP系列AMPMODU MTE
产品特性Closed End产品子类型Headers
