点击放大查看

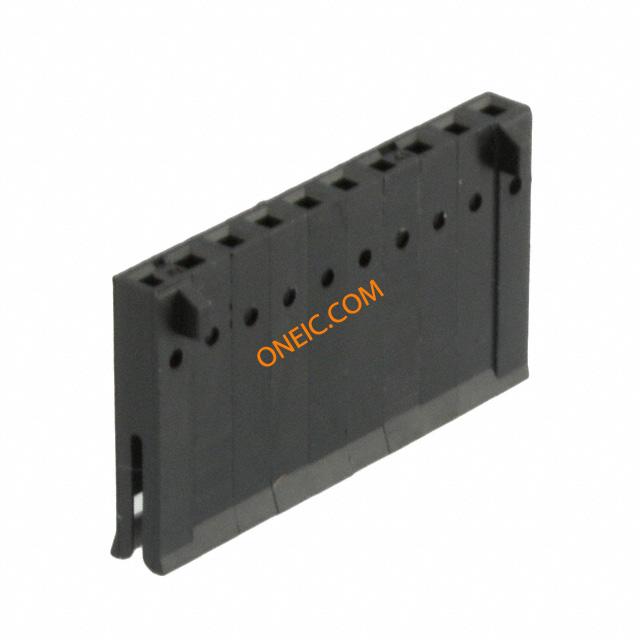

487769-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 10POS HOUSING FFC .100 FFC & FPC Connectors 010 HOUSING FFC RCPT Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 10Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 010 HOUSING FFC RCPT 100CL SR |
| 分类 |
商业参数
| 其他名称 | 4877698 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | Yes |
电气参数
| 额定电压 | 300V | 供电电压 | 300 VAC |
| 输入电阻 | 5000 | 钳位电压 | 720 |
| 连接器阻抗 | 制动器窗口 | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | FFC |
| 第二连接器 | With | 安装类型 | Straight |
| 连接器类型 | Slimline | 安装样式 | Cable |
| 排数 | 1 | 连接器用途 | Receptacle |
| 锁定特性 | Detent | 壳体材料 | Thermoplastic |
| 总长度 | 2.54 [0.100] | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | Without |
| 端接样式 | 插座 | FFC/FCB厚度 | 0.05-0.13mm |
| 配接方向 | Without | 触点数 | 10 |
| 位数 | 10 | 安装孔直径 | 带有 |
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 产品特性 | Detent Lock | 产品子类型 | Housing |
| 连接类型 | FFC Cable | ||
环境参数
| 工作温度 | -65°C ~ 105°C | ||
