点击放大查看
2-487406-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Flexible Film Contacts CONN SOCKET FLEXFLAT .100 30GOLD FFC & FPC Connectors 100X100 FFC SKT 56000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Receptacle, standard pressure2.54 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableGold (30) Contact Mating Area PlatingSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT, SOCKET, IDC / IDT CONTACT,SOCKET,FLXIBLEFILM,2.54MMCENTERLINE TE Connectivity FFC 系列 母 压接接线端子, IDC, 镀金镀镍触点 FFC,RCPT CONTACT,STD PRESSURE |
| 分类 |
商业参数
| 其他名称 | 24874063 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 14000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 最大额定电流 | 2 A | ||
机械参数
| 深度 | 1.87 mm | 间距 | 2.54 mm |
| 重量 | 0.0002 | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | Flexible Flat Conductor Cable | 端接方式 | Crimp |
| 触头类型 | Receptacle, standard pressure | 外壳颜色 | Not Required |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector FFC-FPC | 接触镀层 | Gold Over Nickel |
| 安装样式 | Cable | 触头材料 | Phosphor Bronze |
| 壳体材料 | Not Required | 总长度 | 2.54 [0.100] |
| 包装数量 | Strip | 端接样式 | IDC |
| 第一触头极性 | SKT | 触点数 | Not Required |
| 接触件端接 | Crimp | 导体绝缘 | 1.19 [0.047] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | :- | 产品子类型 | Contacts |
| 适用产品/相关产品 | :FFC / FPC Connectors | ||
环境参数
| 工作温度 | -65C to 105C | ||
相关型号
487378-7
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 8POS .100 SLIMLINE FFC & FPC Connectors 100X100 FFC HSG REC 1X08P Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = Slimline8 PositionsNumber of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector CONNECTOR,RECEPTACLEHOUSING,FLEXIBLEFILM,8POS,2.54MM,SLIMLINE,SINGLER 008 HOUSING FFC RCPT 100CL SR
2-487526-4
te connectivity / amp
Conn Housing RCP 25 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 25POS .100 W/LATCH FFC & FPC Connectors 025 HOUSING FFC RCPT 100CL SR Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 25Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 025 HOUSING FFC RCPT 100CL SR
2-88637-9
te connectivity / amp
FLEXIBLE FILM CONNECTORS Flexible Film Connectors CONN HOUSING STANDARD DUAL 58POS FFC & FPC Connectors 058 HOUSING FFC RCPT DR 100CL Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 58Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 058 HOUSING FFC RCPT DR 100CL
88859-5
te connectivity / amp
Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 13POS HOUSING FFC .100 FFC & FPC Connectors 013 HOUSING FFC RCPT SR 100CL Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 13Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 013 HOUSING FFC RCPT SR 100CL
1-487526-4
te connectivity / amp
Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 15POS.100 SLIM W/LATCH FFC & FPC Connectors 15 HSG RCPT 100CL SR Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 15Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 015 HOUSING FFC RCPT 100CL SR
1-88637-7
te connectivity / amp
Conn Housing RCP 28 POS 2.54mm ST Flexible Film Connectors CONN HOUSING STANDARD DUAL 28POS FFC & FPC Connectors 028 HOUSING FFC RCPT Conn Housing RCP 28 POS 2.54mm ST Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 28Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 028 HOUSING FFC RCPT DR 100CL
1-487378-8
te connectivity / amp
Conn Housing RCP 19 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 19POS .100 SLIMLINE FFC & FPC Connectors 019 HOUSING FFC RCPT 100CL SR Flexible Film Connectors Product Highlights:ConnectorNot PreloadedHousing Gender = PlugAccepts Contact Gender = Receptacle2.54 mm CenterlineSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 019 HOUSING FFC RCPT 100CL SR

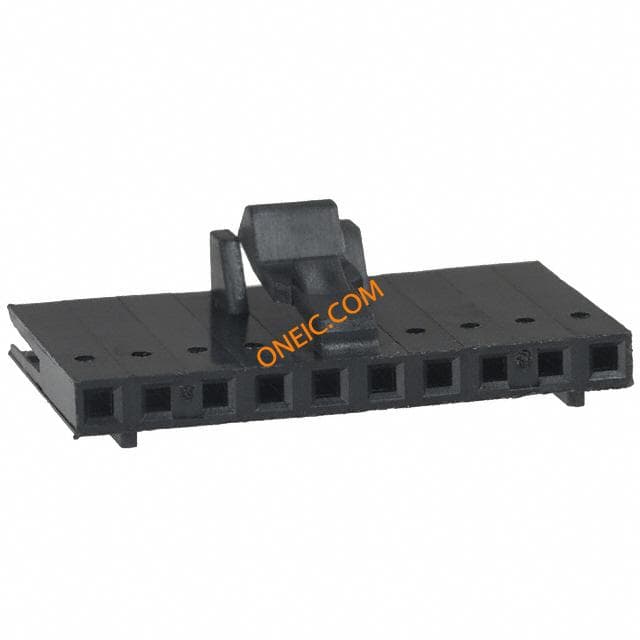

487526-9
