102241-8

点击放大查看

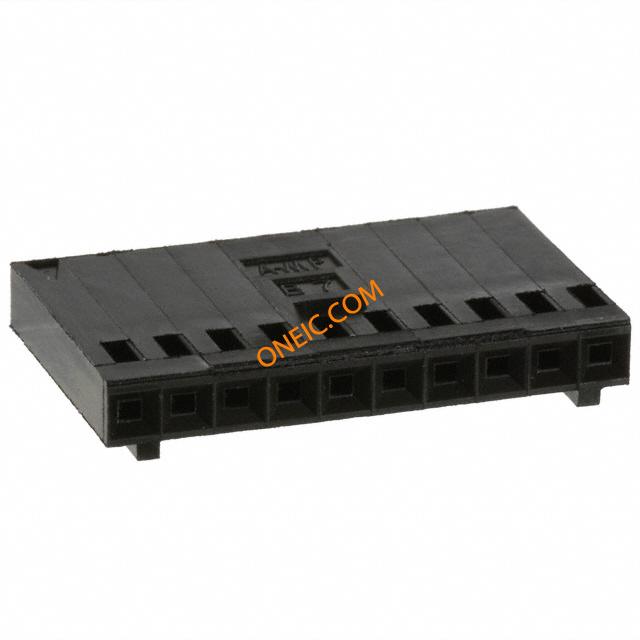

102241-8

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 10POS .100 POLAR 2.54mm,housing,10W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 10 SNL detent latching Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 10Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,10POSITION,.100IN,SINGLEROW,LATCHED AMPMODU 10 Position Single Row 2.54 mm Pitch Unloaded Socket Latching Housing Crimp housing Pitch2.54 mm Poles 10 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-8, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 10 路 直 母 电缆安装 PCB 壳体 10 MODIV HSG COMP SR .100 POL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94 V-0

电气参数

额定电压250 VAC极数10
开关功能Detent Latching供电电压250 VAC
接触电阻12 mΩ输入电阻5000
连接器阻抗压接最大额定电流3 A
绝缘电阻5000 MOhm连接器类型 - 电压输入Crimp
保护额定电压（VPR）750 V

机械参数

颜色Black深度15.24mm
间距2.54 mm宽度4.62mm
高度4.62 mm [ .182 in ]长度25.4mm
锁定类型带有包装方式Bulk
壳体颜色黑色导线线规20-32 AWG
方向直触点形式Female Socket
触头类型Female Socket安装类型Straight
连接器类型Receptacle紧固类型Locking Ramp
排数1连接器样式Single row
插入件材料铍铜壳体材料Nylon
包装数量1主要材料InterconnectSystem
端接样式插座连接器颜色black
触点数10接触件端接Crimp
位数10第一连接器极性Female
兼容外壳尺寸（如TM-700等）公端安装孔直径带有
典型触点布局同轴静电放电屏蔽不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列Mod IV
制造商全称AMPMODU/MODIVSeries产品子类型Wire Housings
放大器类型带有连接方式Wire-Board
输出配置Free Hanging (In-Line)适用产品/相关产品Centerline Single-Row Connector

环境参数

测试温度标准部件 - 非辉光导线工作温度- 65 C to + 105 C

文档与媒体

PDF 文档
580372.pdf
在线文档
102241-8?RQPN=102241-8

相关型号

5-103080-8

5-103080-8

te connectivity / amp
