1-794407-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKT 20-16AWG MINI-UMNL AU Pin & Socket Connectors MINI UMNL SOK 20-16 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = StripWire Range = 0.50-1.40² [20-16] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 20-16 AWG AU LF |
| 分类 |
商业参数
| 其他名称 | A100438CT | 产品类别 | Pin & Socket Connectors |
| 标准包装数量 | Tape & Reel | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not reviewed for lead free solder process | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| CSA分类 | 已认证 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | 是 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 11.2 | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 镀层 | 锡 | 包装方式 | Tape & Reel (TR) |
| 电缆类型 | 分离式导线 | 导线线规 | 16-20 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 插针或插孔 | Socket | 释放力 | 带有 |
| 连接器类型 | Connector Power | 接触镀层 | Gold Over Nickel |
| 壳体镀层 | Nickel | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 包装数量 | Strip |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 适用端子尺寸 | No | 接触件端接 | Crimp |
| 绝缘直径 | 2.01 â 3.20 [0.079 â 0.126] | 兼容外壳尺寸（如TM-700等） | 插头护套 |
| 触点镀层 | 哑光 | 接触件表面处理 - 配合 | 锡 |
| 法兰上方插针尺寸 | 1 mm [ .039 in ] | 接触镀层厚度 | 30µin (0.76µm) |
| 线规或范围 - AWG | 20-16 | 线规或范围 - mm² | 0.50-1.40² [20-16] |
| 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] | ||
产品信息
| 类型 | Stamped | 连接器性别 | SKT |
| 系列 | Mini-Universal Mate-N-Lok | 产品子类型 | Contact |
| 应用细节 | Power | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
相关型号
189727-1
te connectivity / amp
EXTRACTION TOOL Hand Tools EXTRACTION TOOL MiniUniversal MATE-N-LOK Extraction tool EXTRACTION TOOL FOR MINI-UNIVERSAL MATE-N-LOK CONTACTS Extraction Tool For Mini Universal Mate-N-Lock Contacts TOOL,CONTACTEXTRACTION Tool: for demounting of terminals; terminals Ejector tool for M-UMNL, 189727-1, TE Connectivity
172328-1
te connectivity / amp
Conn Housing RCP 2 POS 4.14mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 2POS MINI-U M-N-L Female Compact Power Connector Socket,9.5A 600V ac/dc Power to the Board UNIV M-N-L HSG Conn Housing RCP 2 POS 4.14mm ST Loose Piece Conn Housing RCP 2 POS 4.14mm Crimp ST Cable Mount Bag Conn Housing RCP 2 POS 4.14mm Crimp ST Cable Mount Bag Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, RECEPTACLE, 2 WAY, NYLON, PANEL MINI-UM-N-LHSG,UNIVM-N-LHSG Plug/socket; wire-wire; male/female; w/o terminals; 4.14mm; PIN:2 Socket housing Pitch4.14 mm Poles 1 x 2 Single row / for panel mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172328-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9.5A 600 V 交流/直流, -20 → +105 °C MINI UNIVERSAL MATE-N-LOK CAP HOUSING 2P
1-172162-2
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 12POS .163" Pin & Socket Connectors RCPT HSG 12P .163 Conn Housing RCP 12 POS 4.2mm ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 12 POS TR MINI UNIV
172339-1
te connectivity / amp
Conn Housing PL 6 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 6POS MINI-U MATE-N-L Male Compact Power Connector Plug,9.5A 600V ac Pin & Socket Connectors 6POS UNIV M-N-L HSG Conn Housing PL 6 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 64.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 6WAY Connector,SoftShell;6;600VAC;Plug;Double-Row;Nylon;Plug;Natural Plug; wire-board; female; w/o terminals; 4.14mm; PIN:6; 600V Pin housing Pitch4.14 mm Poles 2 x 3 Double row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172339-1, TE Connectivity TE Connectivity 线对线连接器 插头 公, 6P, 9.5A 600 V 交流, -20 → +105 °C MINI UMNL PLUG HOUSING 6P
172327-1
te connectivity / amp
Conn Housing RCP 1 POS Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 1POS MINI-U MNL Pin & Socket Connectors 1 POS RECPT MINI Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 1In-Line Contact LayoutMount = Free HangingSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG AND SOCKET CONNECTOR HOUSING
770586-1
te connectivity / amp
Conn Housing M 22 POS 4.14mm Crimp ST Cable Mount Individual Pin & Socket Connectors 22P MINI UMNL PLUG H .163" Centerline, 600 V, 9.5 A max. CONN PLUG 22POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,22Way Conn Housing M 22 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 224.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR PLUG & SOCKET MINI-UMNLPLGHSG,22PMINIUMNLPLUGHSG Pin housing Pitch4.14 mm Poles 2 x 11 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal, 770586-1, TE Connectivity 22P MINI UMNL PLUG HSG
770580-1
te connectivity / amp
Conn Housing M 10 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 10POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,10Way Pin & Socket Connectors PLUGHOUSE 10 POS Conn Housing M 10 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, RECEPT Connector,SoftShell;10;600VAC;Plug;Double-Row;Nylon;Plug;White Pin housing Pitch4.14 mm Poles 2 x 5 Double row / straight / accepts male or female contacts MATE-N-LOK, 770580-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.14mm 节距 10 路 直 公 电缆安装 压接连接器外壳 10P MINI UMNL PLUG HSG
172157-1
te connectivity / amp
Conn Housing RCP 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 2POS MINI UNIV-MATE 2 way cable/panel socket Min Mate-N-Lok Pin & Socket Connectors 2P CAP HOUSING Conn Housing RCP 2 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, RECEPTACLE, 2 WAY, NYLON, PANEL Receptacle,Mini-Universal-Mate-N-Lok,2Pos,PanelMount,DetentLock,White Plug; wire-wire; male; 4.14mm; PIN:2; UL94V-2; Pin layout:2x1; 250V Socket housing 4.14 mm Poles 1 x 2 Single row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172157-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 1 行 4.2mm 节距 2 路 直 母 压接连接器外壳 2CIR MINI U-M-N-L CAP NATL
172165-1
te connectivity / amp
Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 2POS MINI UNIV-MATE 2 way cable plug Min Mate-N-Lok Pin & Socket Connectors 2 CIRCUIT PLUG Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG HOUSING, 2WAY CONN, INLINE PLUG & SOCKET Connector,SoftShell;2;600VAC;Plug;In-Line;Nylon;Plug;Natural Plug; wire-wire; female; 4.14mm; PIN:2; UL94V-2; Pin layout:2x1 Pin housing 4.14 mm Poles 1 x 2 Single row / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172165-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 1 行 4.2mm 节距 2 路 直 公 压接连接器外壳 2 CIR UNIV M-N-L PLUG NATL

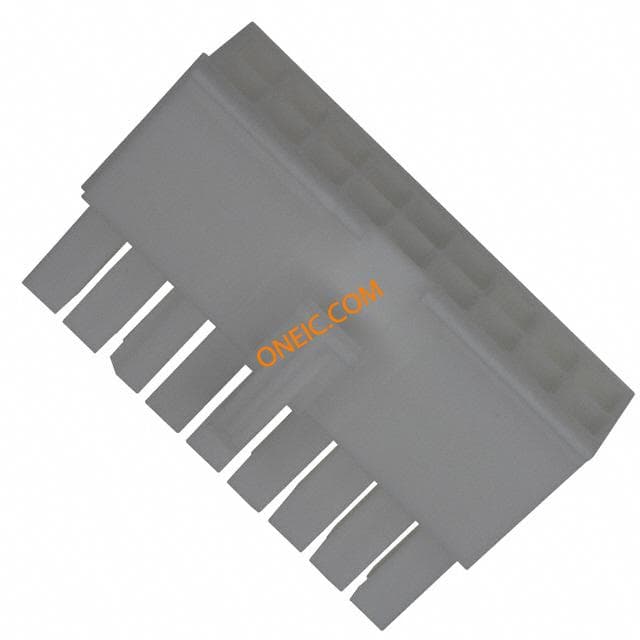

770584-1
te connectivity / amp
Conn Housing M 18 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 18POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,18Way Pin & Socket Connectors 18P MINI UMNL PLUG H Conn Housing M 18 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 184.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON MINI-UMNLPLGHSG,18PMINIUMNLPLUGHSG Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:18; 600V MATE-N-LOK 18 Position Positive Lock Free Hanging Plug Housing Pin housing Pitch4.14 mm Poles 2 x 9 Double row / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 770584-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.14mm 节距 18 路 直 公 电缆安装 压接连接器外壳 18P MINI UMNL PLUG HSG
172344-1
te connectivity / amp
Conn Housing RCP 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 3POS MINI-MATE-N-L Mate-n-lok,housing,cap,free hanging,3w Pin & Socket Connectors 3P CAP HOUSING free hanging Conn Housing RCP 3 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UM-N-LHSG,UNIVM-N-LHSG Socket housing Pitch4.14 mm Poles 1 x 3 Single row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172344-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 1 行 4.2mm 节距 3 路 直 母 压接连接器外壳 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 3P
1-172165-2
te connectivity / amp
Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG HOUSING 2POS .163" Mini Mate-n-lok cable plug housing 2-way Pin & Socket Connectors PLUG HSG 2P .163 Conn Housing PL 2 POS 4.2mm Crimp ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MiniMate-n-lokcableplughousing2-way 2CIR MINI U-M-N-L PLUG RED
172333-1
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 12POS MINI-UMNL Pin & Socket Connectors MINI UNIVERSAL M-N-L Conn Housing RCP 12 POS 4.2mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 124.14 x 4.14 mm Centerline, MatrixMatrix Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 12WAY MINI-UM-N-LHSG,MINIUNIVERSALM-N-LHOUSING Plug/socket; wire-wire; male/female; w/o terminals; 4.14mm; 600V Socket housing Pitch4.14 mm Poles 3 x 4 Multi row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172333-1, TE Connectivity MINI UNIVERSAL M-N-L HOUSING

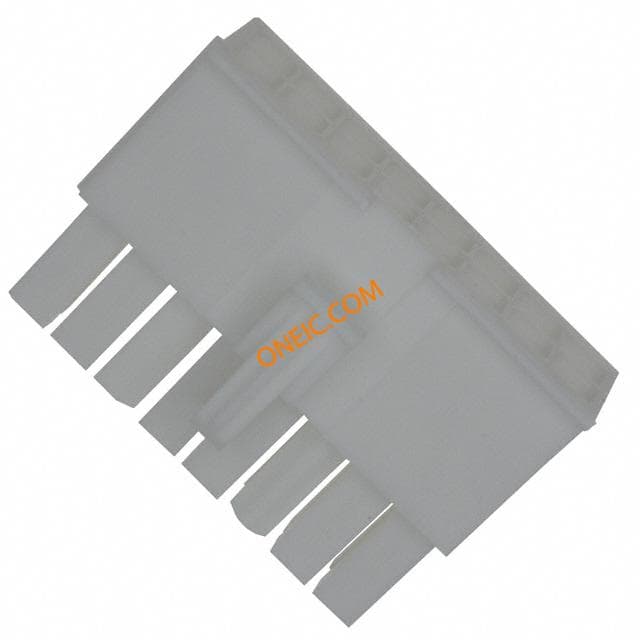

770583-1
