点击放大查看

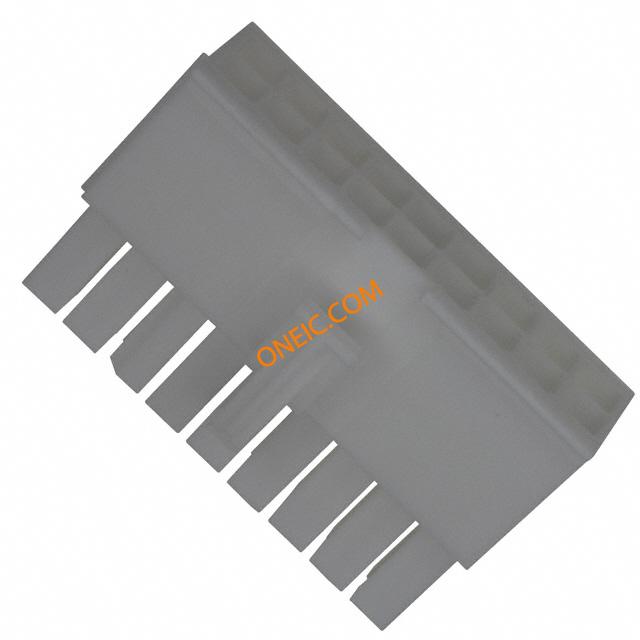

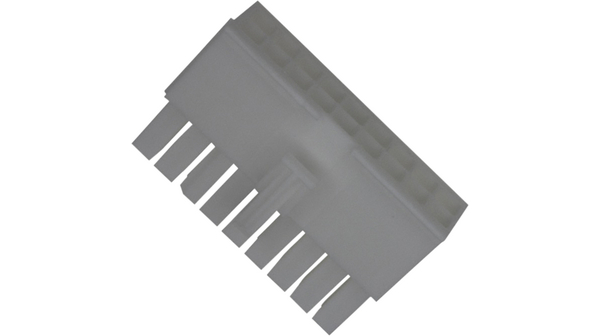

770584-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing M 18 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 18POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,18Way Pin & Socket Connectors 18P MINI UMNL PLUG H Conn Housing M 18 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 184.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON MINI-UMNLPLGHSG,18PMINIUMNLPLUGHSG Plug; wire-board; male/female; w/o terminals; 4.14mm; PIN:18; 600V MATE-N-LOK 18 Position Positive Lock Free Hanging Plug Housing Pin housing Pitch4.14 mm Poles 2 x 9 Double row / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 770584-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.14mm 节距 18 路 直 公 电缆安装 压接连接器外壳 18P MINI UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VDC/600VAC |
| 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK | ||
机械参数
| 颜色 | White | 深度 | 23.7mm |
| 间距 | 4.14 mm | 宽度 | 15.19mm |
| 高度 | 15.19 mm | 长度 | 38.96mm |
| 重量 | 0.005 | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 导线线规 | 16-30 AWG |
| 排间距 | 0.163" (4.14mm) | 触头类型 | Male or Female |
| 柱间距 | 4.14mm | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 锁定特性 | lock |
| 壳体材料 | Nylon | 总长度 | 38.96 mm |
| 包装数量 | One Piece Housing | 主要材料 | InterconnectSystem |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 18 |
| 接触件端接 | Crimp | 位数 | 18 |
| 中心触点材料 | 4.14 x 4.14 [.163 x .163] | 典型触点布局 | Double-Row |
| 接触镀层厚度 | 0.99 [0.039] | 线规或范围 - AWG | 30-16 |
| 第一连接器安装类型 | :Free Hanging | 第一连接器安装特征 | 2x9 |
产品信息
| SPG | 6 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | M |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Housing |
| 适配器系列 | Mini Universal MATE-N-LOK | 单元数量 | 1 |
| 模块/板类型 | No | 电路数 | 18 |
| 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector | ||
环境参数
| 工作温度 | -55C to 105C | ||
