点击放大查看

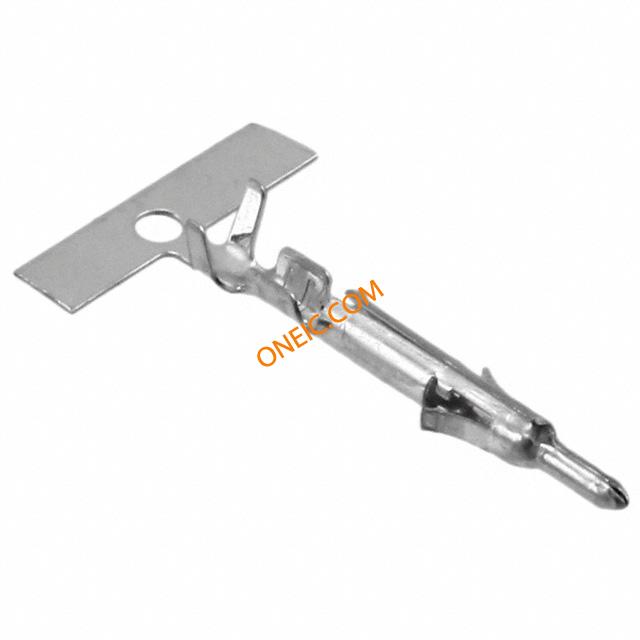

770985-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG TIN CRIMP Crimp contact, pin, 9.5A, 26-22AWG Standard Circular Connector PIN 26-22 AWG MINI UMNL Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, MALE, 26-22AWG Connector;Pin;Brass;Pre-Tin;600VAC;9.5A;26to22AWG;0.039in. Crimp pin 9.5 A Male 26...22 AWG, 770985-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UMNL PIN 26-22AWG SN LP |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHS,ELVcompliants |
| 海关税号 | 85369010 | 抗辐射加固 | No |
电气参数
| 额定电压 | :600 V | 最大额定电流 | :9A |
| 连接器类型 - 电压输入 | Mini-UniversalMATE-N-LOK | ||
机械参数
| 深度 | 2.95 mm | 高度 | 2.92 mm |
| 重量 | 0.001 | 镀层 | Tin |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 出线方向 | No | 导线线规 | 22-26 AWG |
| 端接方式 | Crimp | 触点形式 | 1Signal |
| 触点尺寸 | :22 | 触头类型 | Power |
| 芯径 | 0.039in. | 安装类型 | Straight |
| 插针或插孔 | Pin | 外壳镀层 | Not Required |
| 连接器类型 | Connector Circular | 接触镀层 | Pre-Tin |
| 安装样式 | Wire | 壳体镀层 | :Tin |
| 触头材料 | Brass | 总长度 | 26-22AWG |
| 主要材料 | Contact | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 绝缘直径 | 0.047to0.069in. |
| 线规或范围 - AWG | :26AWG | 线规或范围 - mm² | :0.4mm² |
| 外径-未扩张 | :1.75mm | ||
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 制造商全称 | Mini-UniversalMATE-N-LOK | 产品子类型 | Connectors |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors | ||
