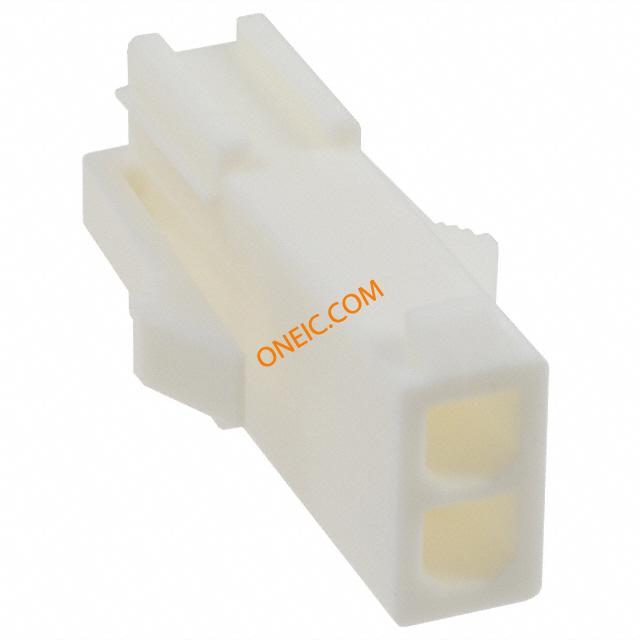

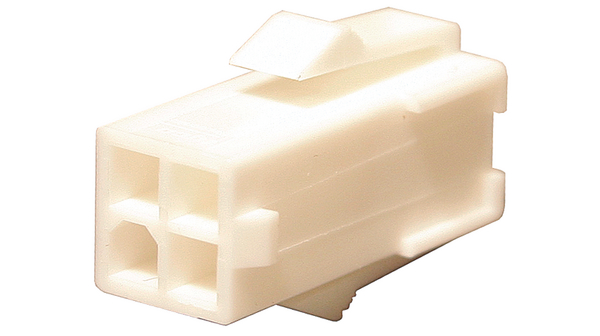

794896-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 2POS SEALED MINI UMNL Female Compact Power Connector Socket,9A 600V ac Pin & Socket Connectors CAP 2P Conn Housing RCP 2 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK SealedNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, RCPT, 2 WAY, NYLON Connector;Nylon(Housing);2;Natural;RoHSCompliant,ELVCompliant Socket; wire-board; male; w/o terminals; Contacts ph:4.14mm; 600V Crimp housing Pitch4.14 mm Poles 1 x 2 accepts male or female contacts / straight / for panel mount MATE-N-LOK Mini Universal Sealed, 794896-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9A 600 V 交流 2 CIR MINI UMNL RND WIRE HOLES |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :UL | ||
电气参数
| 额定电压 | 600 V ac | 工作电压 | :250V |
| 最大额定电流 | 9A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Socket |
机械参数
| 颜色 | Natural | 深度 | 24.97 mm |
| 间距 | 4.14 mm | 重量 | 0.001 |
| 材料（通用） | :Nylon, UL94V-0 | 包装方式 | Bulk |
| 导线线规 | :10AWG | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 柱间距 | 4.14mm |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Receptacle | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 1 |
| 面板厚度 | 0.8...2mm | 壳体材料 | Nylon |
| 总长度 | 13.65 mm | 包装数量 | 1 |
| 连接器 - 电缆 | socket | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | :White |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 线规或范围 - AWG | :20AWG |
| 第一连接器安装特征 | 1x2 | ||
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Mate-N-Lok | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacle Housings | 适配器系列 | Mini Universal MATE-N-LOK Sealed |
| 单元数量 | 1 | 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors |
环境参数
| 工作温度 | -20C to 105C | ||
