770903-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Power to the Board PIN 22-18 AWG REEL .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG TIN CRIMP Contact,pin,mini universal,22-18awg Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18AWG, CRIMP CONTACT, CRIMP, PIN, 22-18AWG, CONTACT, CRIMP, PIN, 22-18AWG, REEL CONTACT,PIN,MINI-UNIVERSALMATE-N-LOK,22-18AWG Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀预镀锡镀镍触点 MINI UMNL PIN 22-18 AWG SN |
| 分类 |
商业参数
| 其他名称 | A25683CT | 零件号别名 | DUL-PIN-22-18AW-S/M-UMNL E25278-000 |
| 产品类别 | Power to the Board | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 600 V | 接触电阻 | 20mΩ |
| 最大额定电流 | 9.5 A | 最小供电电压 | 600VAC |
机械参数
| 深度 | 2.46 mm | 间距 | Not Required mm |
| 高度 | 1.72 mm | 重量 | 0.002 |
| 镀层 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 触头类型 | Power |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Pin | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Pre-Tin Over Nickel | 安装样式 | Snap In |
| 触头材料 | Brass | 壳体材料 | Not Required |
| 总长度 | 17.55 mm | 端接样式 | Quick Connect |
| 第一触头极性 | Pin (Male) | 触点数 | 1 |
| 接触件端接 | Crimp | 线规或范围 - AWG | 22-18 |
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | :Mini-Universal MATE-N-LOK | 产品子类型 | Contacts |
| 适用产品/相关产品 | :Miniature Circular Plastic Connectors | ||
环境参数
| 工作温度 | 105°C | ||
文档与媒体
相关型号
189727-1
te connectivity / amp
EXTRACTION TOOL Hand Tools EXTRACTION TOOL MiniUniversal MATE-N-LOK Extraction tool EXTRACTION TOOL FOR MINI-UNIVERSAL MATE-N-LOK CONTACTS Extraction Tool For Mini Universal Mate-N-Lock Contacts TOOL,CONTACTEXTRACTION Tool: for demounting of terminals; terminals Ejector tool for M-UMNL, 189727-1, TE Connectivity
794896-1
te connectivity / amp
Conn Housing RCP 2 POS 4.14mm Crimp ST Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 2POS SEALED MINI UMNL Female Compact Power Connector Socket,9A 600V ac Pin & Socket Connectors CAP 2P Conn Housing RCP 2 POS 4.14mm Crimp ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK SealedNumber of Circuits = 24.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR HOUSING, RCPT, 2 WAY, NYLON Connector;Nylon(Housing);2;Natural;RoHSCompliant,ELVCompliant Socket; wire-board; male; w/o terminals; Contacts ph:4.14mm; 600V Crimp housing Pitch4.14 mm Poles 1 x 2 accepts male or female contacts / straight / for panel mount MATE-N-LOK Mini Universal Sealed, 794896-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9A 600 V 交流 2 CIR MINI UMNL RND WIRE HOLES
1-172162-2
te connectivity / amp
Conn Housing RCP 12 POS 4.2mm ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT HOUSING 12POS .163" Pin & Socket Connectors RCPT HSG 12P .163 Conn Housing RCP 12 POS 4.2mm ST Loose Piece Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 12 POS TR MINI UNIV
172234-1
te connectivity / amp
Conn Housing RCP 3 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN CAP 3POS MINI UNIV-MATE Housing,cap FH,Mate-n-lok,3 Way,Natural Pin & Socket Connectors RECEPTACLE HOUSING Conn Housing RCP 3 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 34.14 mm Centerline, MatrixIn-Line Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP RECEPTACLE HOUSING, FREE, 3WAY Connector,SoftShell;3;600VAC;Receptacle(Cap);In-Line;Nylon;Natural Plug; wire-board; male; w/o terminals; 4.14mm; PIN:3; 600V Socket housing Pitch4.14 mm Poles 1 x 3 Single row / Free hanging/cable mount / straight / accepts male or female contacts MATE-N-LOK Mini Universal, 172234-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm 节距 3 路 直 母 压接连接器外壳 3P MINI UNIVERSAL MATE-N-LOK CAP HOUSING
1445824-2
te connectivity / amp
REC,11-5,FLNG MT,LG INS,ALT KE Standard Circular Connectors REC,11-5,FLNG MT,LG INS,ALT KE CONN RCPT 5POS MINI CPC Standard Circular Connector REC,11-5,FLNG MT,LG INS,ALT KE
1445539-3
te connectivity / amp
Conn Housing RCP 1 POS ST Miniature CPC (Circular Plastic Connector) CONN RECEPT 8-1POS PANEL MOUNT Standard Circular Connector RCPT SIZE 8 1 POS FLNG MT STD KEY Conn Housing RCP 1 POS ST Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector REC,8-1,FLNG MT,LG INS,STD KEY
770580-1
te connectivity / amp

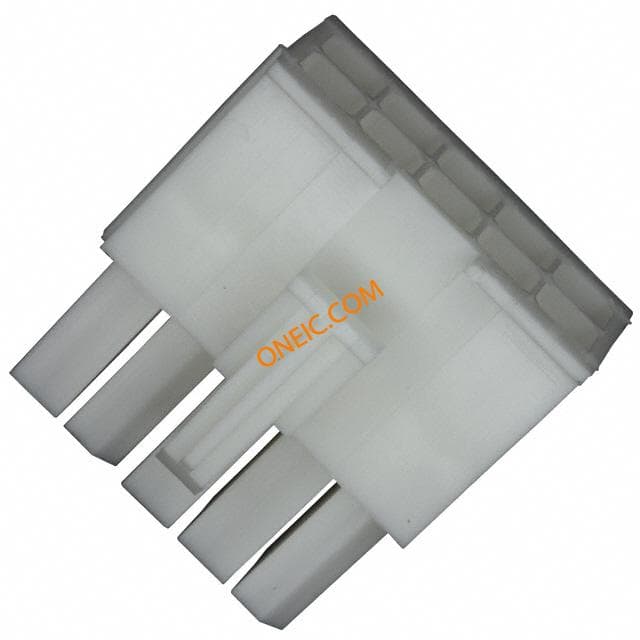

Conn Housing M 10 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 10POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,10Way Pin & Socket Connectors PLUGHOUSE 10 POS Conn Housing M 10 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 104.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONNECTOR, RECEPT Connector,SoftShell;10;600VAC;Plug;Double-Row;Nylon;Plug;White Pin housing Pitch4.14 mm Poles 2 x 5 Double row / straight / accepts male or female contacts MATE-N-LOK, 770580-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 2 行 4.14mm 节距 10 路 直 公 电缆安装 压接连接器外壳 10P MINI UMNL PLUG HSG
1-172329-5
te connectivity / amp
Conn Housing RCP 3 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 3POS MINI-U-MNL GREEN
1445828-3
te connectivity / amp
Conn Housing RCP 6 POS ST Standard Circular Connector RCPT SIZE 11 6 POS FRE HNG STD KEY Miniature CPC (Circular Plastic Connector) CONN RECEPT 11-6POS FREE-HANGING REC,11-6,FRE HNG,LG INS,STD KE REC,11-6,FRE HNG,LG INS,STD KE Search Keywords:IP 67, wire to wire, wire to board, wire to panel, input/output, box to box, circular industrial, sealed, discrete wire, crimp, Mini CPC, Miniature CPC, circular plastic connector, miniature circular plastic connector
1-172330-5
te connectivity / amp
Conn Housing RCP 8 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN CAP 4POS MINI-U-MNL GREEN
1-172340-5
te connectivity / amp
Conn Housing PL 9 POS 4.2mm Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PLUG 9POS MINI-UMNL GREEN
455830-1
te connectivity / amp
Straight Action Hand Tool Hand Tools INSERTION TOOL TOOL INSERTIONF UNI-MATE-II TOOL; CONTACT INSERTION INSERTION TOOL FOR MATE-N-LOCK CONTACTS TOOL,CONTACTINSERTION Insertion tool, 455830-1, TE Connectivity INSERTION TOOL
172331-1
te connectivity / amp
Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN RCPT/CAP 6POS MINI-U M-N-L Female Compact Power Connector Socket,9.5A 600V ac Pin & Socket Connectors CAP HOUSING 6P Conn Housing RCP 6 POS 4.2mm Crimp ST Loose Piece Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 64.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP SOCKET HOUSING, 6WAY PLUG AND SOCKET CONNECTOR HOUSING Connector,SoftShell;6;600VAC;Receptacle(Cap);Double-Row;Nylon;Natural Socket housing Pitch4.14 mm Poles 2 x 3 Double row / straight / for panel mount / accepts male or female contacts MATE-N-LOK Mini Universal, 172331-1, TE Connectivity TE Connectivity 线对线连接器 插座 母, 9.5A 600 V 交流 MINI UNIVERSAL MATE-N-LOK CAP HOUSING 6P
794805-1
te connectivity / amp

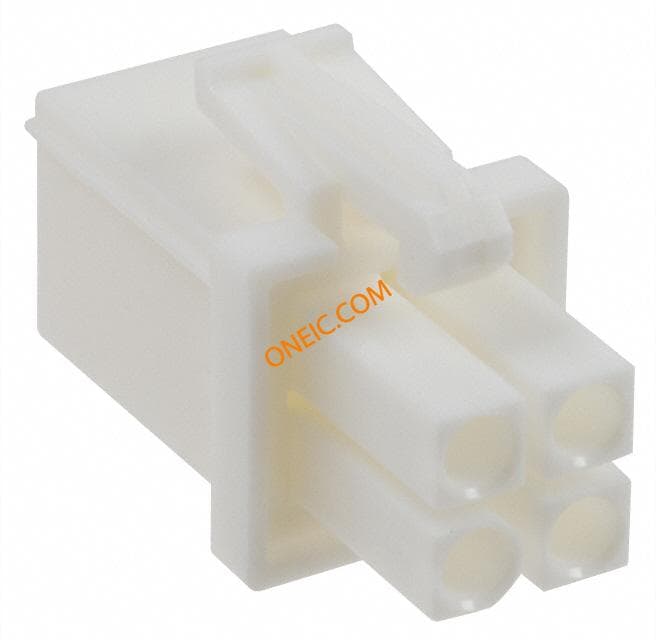

Conn Housing PL 4 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 4POS SEALED MINI UMNL Male Compact Power Connector Plug,9A 600V ac Pin & Socket Connectors PLUG 4P Conn Housing PL 4 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK SealedNumber of Circuits = 44.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG, SEALED, 4WAY Connector;Nylon(Housing);4;White;RoHSCompliant,ELVCompliant Plug; wire-wire; sealed; 4.14mm; PIN:4; UL94V-0; Pin layout:2x2 Crimp housing Pitch4.14 mm Poles 2 x 2 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal Sealed, 794805-1, TE Connectivity TE Connectivity 线对线连接器 插头 公, 9A 600 V 交流 4 CIR UMNL PLUG,ROUND HOLES
