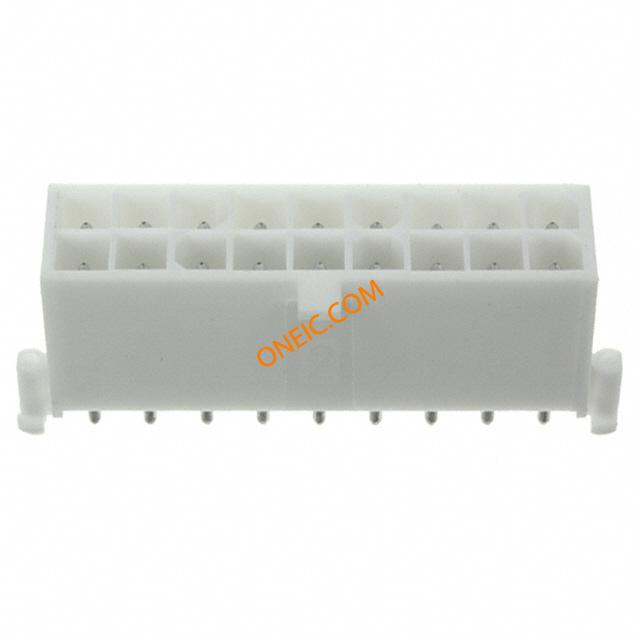

1-794069-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 18 POS 4.14mm Solder ST Thru-Hole 18 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 18POS STR DUAL .163 TIN Conn Power HDR 18 POS 4.14mm Solder ST Thru-Hole 18 Terminal 1 Port Product Highlights:Header - PinThrough Hole Contact Termination TypeMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 24.14 mm CenterlineTerminate To Printed Circuit BoardSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 18POS 4.14MM 18P MINI UMNL HDR W/DH SN LF |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | White | 间距 | 4.14 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 排间距 | 0.163" (4.14mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 排数 | 2 |
| 触点数 | :18 | 接触件端接 | :Through Hole Vertical |
| 位数 | 18 | 接触镀层厚度 | 150µin (3.81µm) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | :Mini-Universal MATE-N-LOK 2 | 产品特性 | Board Lock |
| 加载位置数 | All | ||
