770583-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing M 16 POS 4.14mm Crimp ST Cable Mount Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 16POS MINI UNIV-MATE Housing,plug,mini Mate-n-lok,2 row,16Way Pin & Socket Connectors 16P MINI UMNL PUG Conn Housing M 16 POS 4.14mm Crimp ST Cable Mount Individual Product Highlights:HousingMini-Universal MATE-N-LOKNumber of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, MATE-N-LOK, 16WAY Connector,SoftShell;16;600VAC;Plug;Double-Row;Nylon;Plug;White Pin housing Pitch4.14 mm Poles 2 x 8 Double row / accepts male or female contacts / straight MATE-N-LOK Mini Universal, 770583-1, TE Connectivity 16P MINI UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 9.5 A | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK |
机械参数
| 颜色 | White | 深度 | 23.83mm |
| 间距 | 4.14 mm | 长度 | 34.82mm |
| 重量 | 0.004 | 锁定类型 | Positive Lock |
| 包装方式 | Bulk | 导线线规 | 16-30 AWG |
| 排间距 | 0.163" (4.14mm) | 触头类型 | Male or Female |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Nylon |
| 包装数量 | One Piece Housing | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
| 中心触点材料 | 4.14 x 4.14 [.163 x .163] | 典型触点布局 | Double-Row |
| 接触镀层厚度 | 0.99 [0.039] | 线规或范围 - AWG | 30-16 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | M | 系列 | MATE-N-LOK |
| CAD图纸 | 3D CAD Model | 产品子类型 | Housing |
| 模块/板类型 | No | 电路数 | 16 |
| 适用产品/相关产品 | Centerline Soft Shell Pin & Socket Connector | ||
文档与媒体
相关型号
1-770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG GOLD CRIMP Pin & Socket Connectors MINI UMNL SOK PHBRZ .163" Centerline, 600 V, 9.5 A max. Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK PHBRZ AU LF
770834-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors SKT 30-26 AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接触点, 压接, 镀预镀锡触点 MINI UMNL SOCKET SN
1-794075-0
te connectivity / amp
Conn Power PIN 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 16POS VERT .163 TIN Headers & Wire Housings HEADER 16 POS TIN DUAL ROW Conn Power PIN 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL HDR W/O DH SN

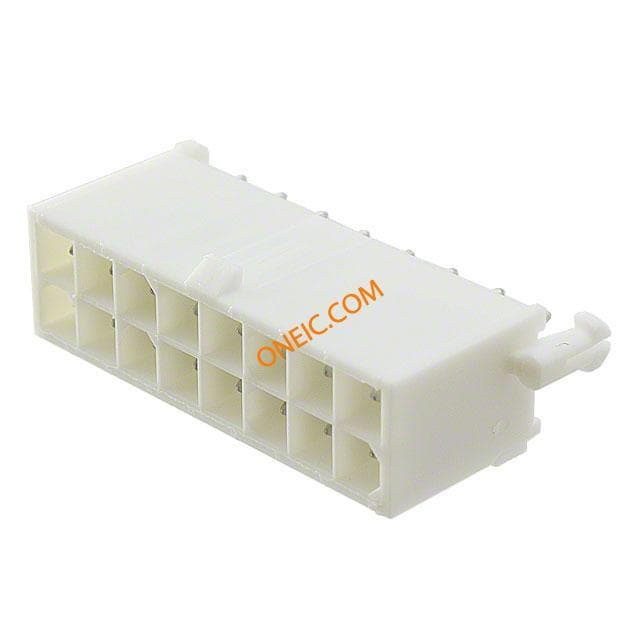

794068-1
te connectivity / amp
Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS STR DUAL .163 TIN Power to the Board 16POS VERT MALE CONX 800 Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL HDR W/DH SN

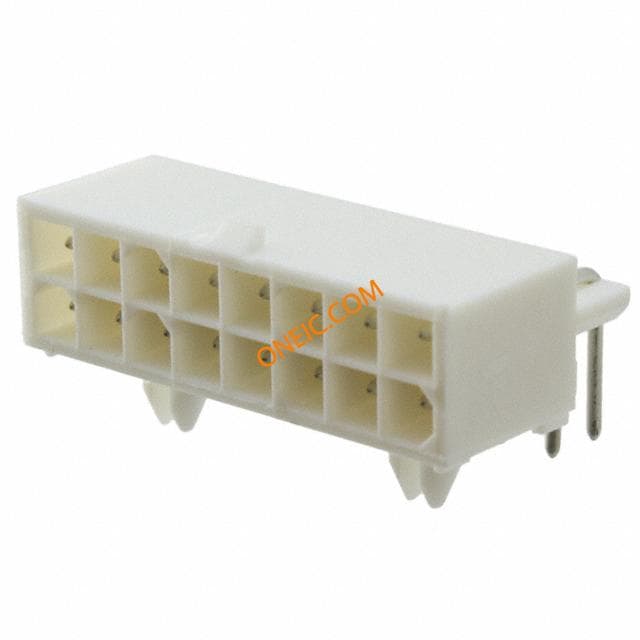

770974-1
te connectivity / amp
Conn Power PIN 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS R/A DUAL .163 TIN Pin & Socket Connectors 16P R/A PCB HEADER 400 Conn Power PIN 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL R/A HDR ASSY SN
1-770974-1
te connectivity / amp
Conn Power HDR 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS R/A DUAL .163 AU TE Connectivity MATE-N-LOK Series 4.14mm Pitch 16 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 16 POS R/A GOLD DUAL ROW Conn Power HDR 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Header,pin,miniMatenlok,PCB,16Way,90deg Pin header Pitch4.14 mm Poles 2 x 8 90° MATE-N-LOK Mini Universal, 1-770974-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 16路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 16P MINI UMNL R/A HDR ASSY LF
1-770903-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN PIN 18-22AWG GOLD CRIMP Mate-n-lok,contact,pin,0.30-0.90mm² Power to the Board SKT 22-18 AWG REEL Reel of 4500 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 22-18AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN22-18AWGAU MATE-N-LOK 22-18 AWG Wire to Cable Crimp Pin Contact TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀金镀镍触点 MINI UMNL PIN 22-18 AWG AU

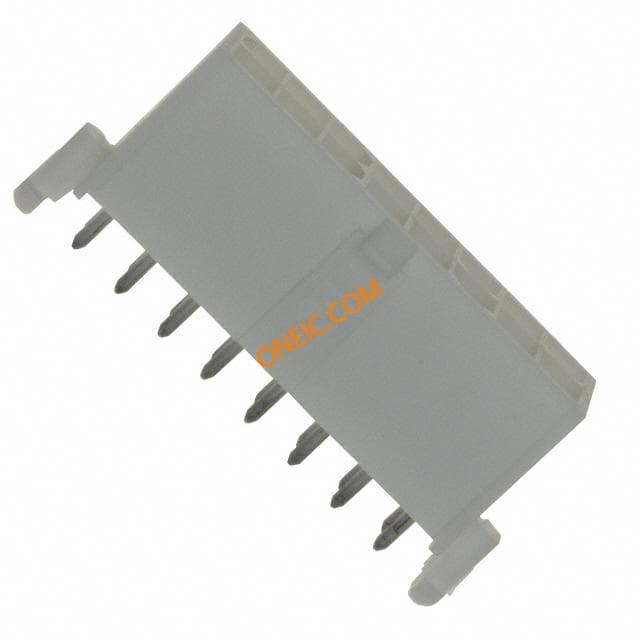

794068-2
te connectivity / amp
Conn Power PIN 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS STR DUAL .163 AU Pin & Socket Connectors 16P MINI UMNL HDR W/ DH AU Conn Power PIN 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOKNumber of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL HDR W/DH AU
1-794068-0
te connectivity / amp
Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 16PS STR DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 16 Way Straight Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 16 POS TIN DUAL ROW Conn Power HDR 16 POS 4.14mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI-UNIVM-N-LHDRS,16PMINIUMNLHDRW/DHSN Pin header Pitch4.14 mm Poles 2 x 8 straight MATE-N-LOK Mini Universal, 1-794068-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 16路 直 PCB 针座, 焊接端接, 9.5A , 通孔 16P MINI UMNL HDR W/DH SN
770902-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 22-26AWG GOLD CRIMP Pin & Socket Connectors SOCKET 26-22 REEL 21000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP MINI UMNL SOK 26-22 AWG AU

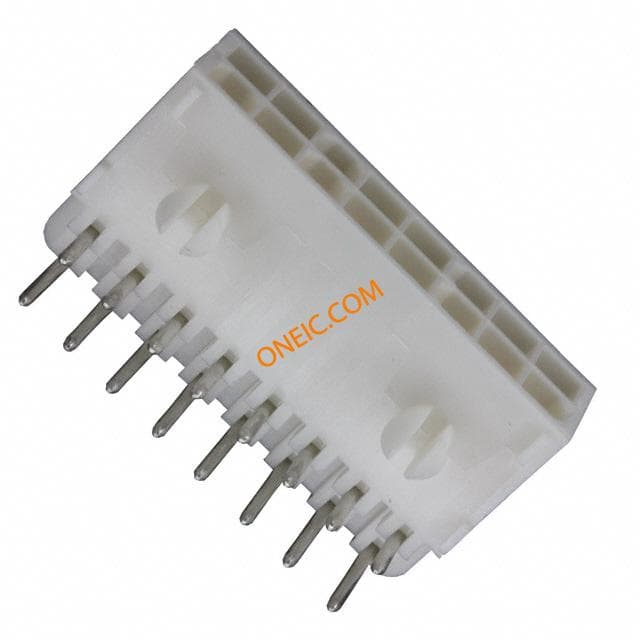

770974-2
te connectivity / amp
Conn Power PIN 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS R/A DUAL .163 AU Power to the Board 16P MINI UMNL R/A HD 200 Conn Power PIN 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP 16P MINI UMNL R/A HDR ASSY AU
770904-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONN SOCKET 18-22AWG TIN CRIMP Contact,crimp,rec,mini Matenlok,22-18awg Power to the Board MINI UMNL SOCKET 22- Reel of 4500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketStripWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CRIMP SOCKET, 22-18AWG CONTACT, CRIMP, SOCKET, 22-18AWG, REEL CONTACT,SOCKET,MINI-UNIVERSALMATE-N-LOK,22-18AWG Miniature Universal MATE-N-LOK 22-18 AWG Wire to Cable Crimp Socket Contact Crimp contact 11.2 A Female 18...22 AWG, 770904-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 母 压接接线端子, 压接, 镀锡触点 MINI UMNL SOK 22-18 AWG SN
770985-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG TIN CRIMP Crimp contact, pin, 9.5A, 26-22AWG Standard Circular Connector PIN 26-22 AWG MINI UMNL Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactMini-Universal MATE-N-LOKPinLoose PieceWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, MALE, 26-22AWG Connector;Pin;Brass;Pre-Tin;600VAC;9.5A;26to22AWG;0.039in. Crimp pin 9.5 A Male 26...22 AWG, 770985-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 公 压接接线端子, 压接, 镀锡触点 MINI UMNL PIN 26-22AWG SN LP
1-770901-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Power to the Board PIN 26-22 BR/AU 28000 .163" Centerline, 600 V, 9.5 A max. CONN PIN 22-26AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKPinStripWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, PIN, 26-22AWG, CRIMP MINI-UMNLSTRIP,MINIUMNLPIN26-22AWGAULF MINI UMNL PIN 26-22 AWG AU LF
1-770974-0
te connectivity / amp
Conn Power HDR 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HEADER 16PS R/A DL .163 TIN TE Connectivity MATE-N-LOK Series 4.14mm Pitch 16 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 16 POS R/A TIN DUAL ROW Conn Power HDR 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP PLUG & SOCKET CONN, HEADER, 16POS 4.14MM MINI-UNIVM-N-LHDRS,16PMINIUMNLR/AHDRASSYSN Pin header Pitch4.14 mm Poles 2 x 8 90° MATE-N-LOK Mini Universal, 1-770974-0, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 16路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 16P MINI UMNL R/A HDR ASSY SN
1-770988-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip .163" Centerline, 600 V, 9.5 A max. CONTACT SKT 18-22AWG MINI-UMNL Pin & Socket Connectors MINI SOK 22-18 AWG Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactMini-Universal MATE-N-LOKSocketPackaging Method = Loose PieceWire Range = 0.30-0.90² [22-18] mm [AWG], (2) 0.30-0.40² [(2) 22] mm [AWG]Search Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP CONTACT, SOCKET, 22-18AWG, CRIMP MINI UMNL SOK 22-18AWG LP LF

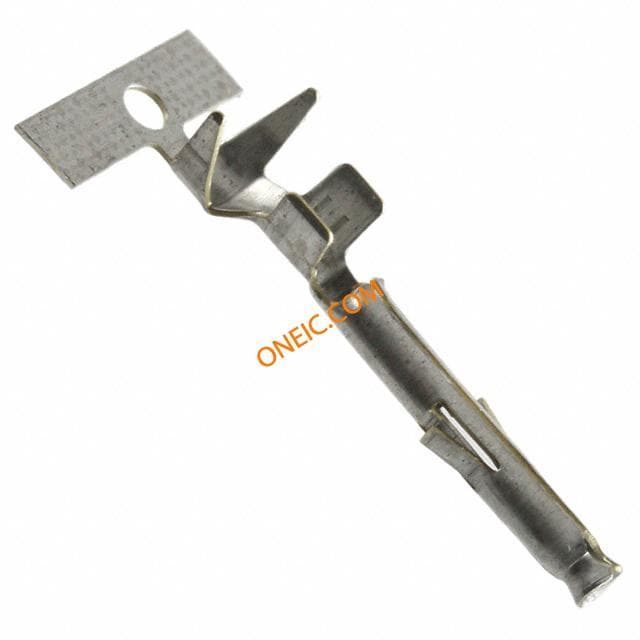

794407-1
