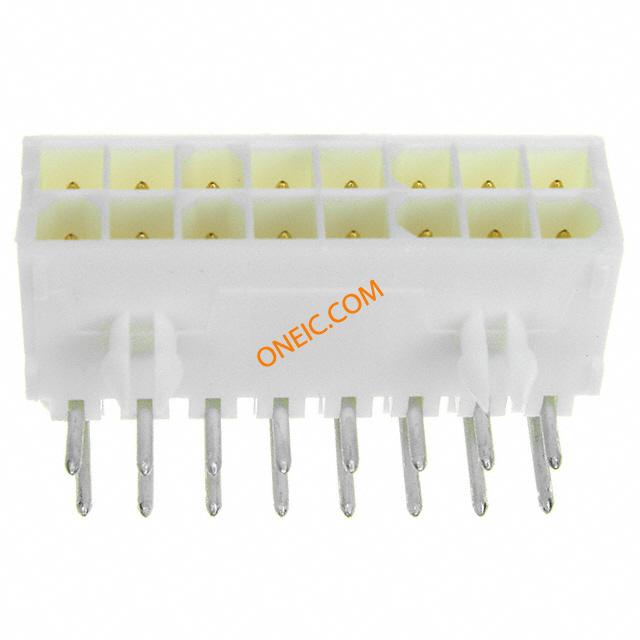

1-770974-1

点击放大查看

1-770974-1

制造商
TE Connectivity Ltd.
描述Conn Power HDR 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port .163" Centerline, 600 V, 9.5 A max. CONN HDR 16POS R/A DUAL .163 AU TE Connectivity MATE-N-LOK Series 4.14mm Pitch 16 Way Right Angle Heavy Duty Power Connector, Solder Termination, 9.5A Headers & Wire Housings HEADER 16 POS R/A GOLD DUAL ROW Conn Power HDR 16 POS 4.14mm Solder RA Thru-Hole 16 Terminal 1 Port Product Highlights:HeaderMini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP Header,pin,miniMatenlok,PCB,16Way,90deg Pin header Pitch4.14 mm Poles 2 x 8 90° MATE-N-LOK Mini Universal, 1-770974-1, TE Connectivity TE Connectivity Mini-Universal Mate-N-Lok 系列 4.14mm节距 16路 直角 PCB 针座, 焊接端接, 9.5A , 通孔 16P MINI UMNL R/A HDR ASSY LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名MATE-N-LOK产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
UL等级获得认可零件状态E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证UL阻燃等级UL 94V-0
认证机构标志否材料阻燃等级UL 94 V-0

电气参数

额定电压600 V ac极数2 x 8
开关功能Latched供电电压600
中心频率不带最大额定电流9.5A
最小输入电压600VAC最小供电电压600VAC

机械参数

颜色White间距4.14 mm
宽度9.8长度34.7
密封型Not Sealed包装方式Bulk
壳体颜色白色方向直角
排间距0.163" (4.14mm)端接方式Solder
触头类型Male Pin安装类型Through Hole
连接器类型Header, Shrouded接触镀层Gold Over Nickel
紧固类型Locking Ramp安装样式Through Hole
引脚数16排数2
连接器样式90°高度（英寸）12.7
触头材料Brass壳体材料Nylon
总长度34.7 mm安装特性板锁
包装数量200面板安装类型通孔 - 焊接
主要材料Power端接排数焊接
端接样式Through Hole第一触头极性Pin (Male)
触点数16位数16
外壳尺寸-插件插头第一连接器极性Male
兼容外壳尺寸（如TM-700等）插头护套安装孔直径带有
接触件表面处理 - 配合锡, 锡铅端子柱长度.76, 4.45
接触镀层厚度30µin (0.76µm)静电放电屏蔽不带

产品信息

类型Power连接器性别HDR
系列MATE-N-LOK覆盖范围覆盖
产品特性Board LockCAD图纸3D CAD Model
制造商全称MATE-N-LOK产品子类型Headers
端口数1连接方式Wire-Board
应用细节Power装配配置Without
加载位置数All

环境参数

测试温度标准件 - 非灼热丝工作温度-55...+105 °C
封装热阻.062 mm [ 1.57 in ]

文档与媒体

在线文档
1-770974-1?RQPN=1-770974-1

相关型号

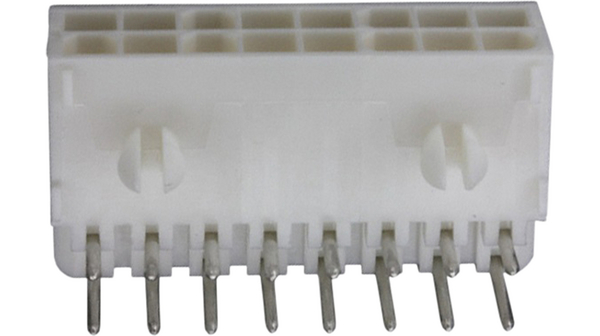

770583-1
