点击放大查看

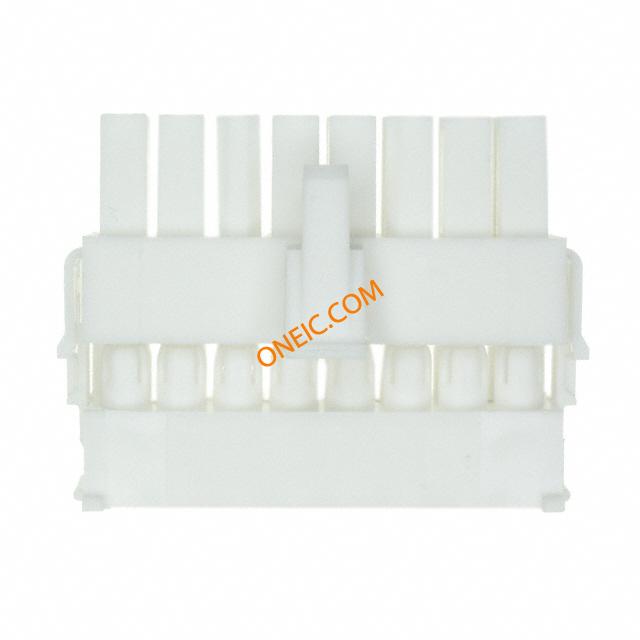

794206-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 16 POS 4.14mm ST Individual .163" Centerline, 600 V, 9.5 A max. CONN PLUG 16POS MINI UNIV-MATE 2 Pin & Socket Connectors CONN PLUG 16 POS Conn Housing PL 16 POS 4.14mm ST Individual Product Highlights:HousingMini-Universal MATE-N-LOK 2Number of Circuits = 164.14 x 4.14 mm Centerline, MatrixDouble-Row Contact LayoutSearch Keywords:soft shell, high density, wire to wire, wire to board, Lighting Interconnection, pcb connectors, discrete wire, crimp, Mini-Universal MATE-N-LOK, PWRSIGALLP HOUSING, 2ROW, 16WAY 16P MINI UMNL2 PLUG HSG UL94V0 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | :CSA, UL, VDE |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 测试电压 | :1500V | 额定电压 | 600 V |
| 供电电压 | 600 | 最大额定电流 | 9.5 A |
| 最大触点电流 | :10.5A | 绝缘电阻 | :100Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | Mini-Universal MATE-N-LOK 2 |
机械参数
| 颜色 | White | 深度 | 23.75 mm |
| 间距 | 4.14 mm | 高度 | 17.25 mm |
| 重量 | 0.006 | 锁定类型 | Latch |
| 包装方式 | Bulk | 排间距 | 0.163" (4.14mm) |
| 触头类型 | Male or Female | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 2 | 壳体材料 | Nylon |
| 总长度 | 39.4 mm | 包装数量 | One Piece Housing |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
| 中心触点材料 | 4.14 x 4.14 [.163 x .163] | 典型触点布局 | Double-Row |
| 接触镀层厚度 | 0.99 [0.039] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Mate-N-Lok II |
| 产品子类型 | Housing | 电路数 | 16 |
| 适用产品/相关产品 | :Mini-Universal MATE-N-LOK Connectors | ||
环境参数
| 工作温度 | :65°C | ||
